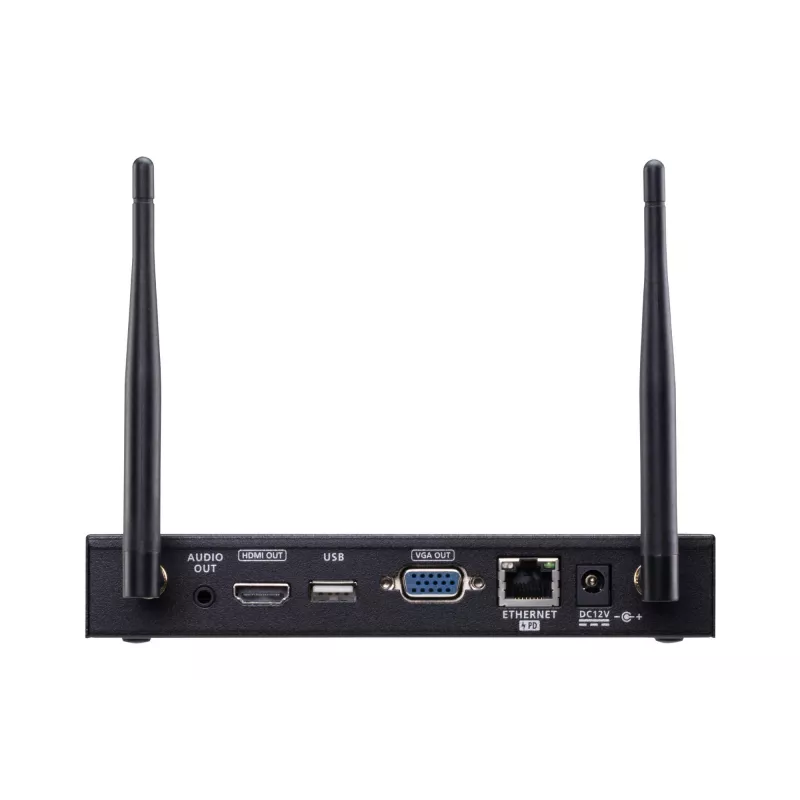

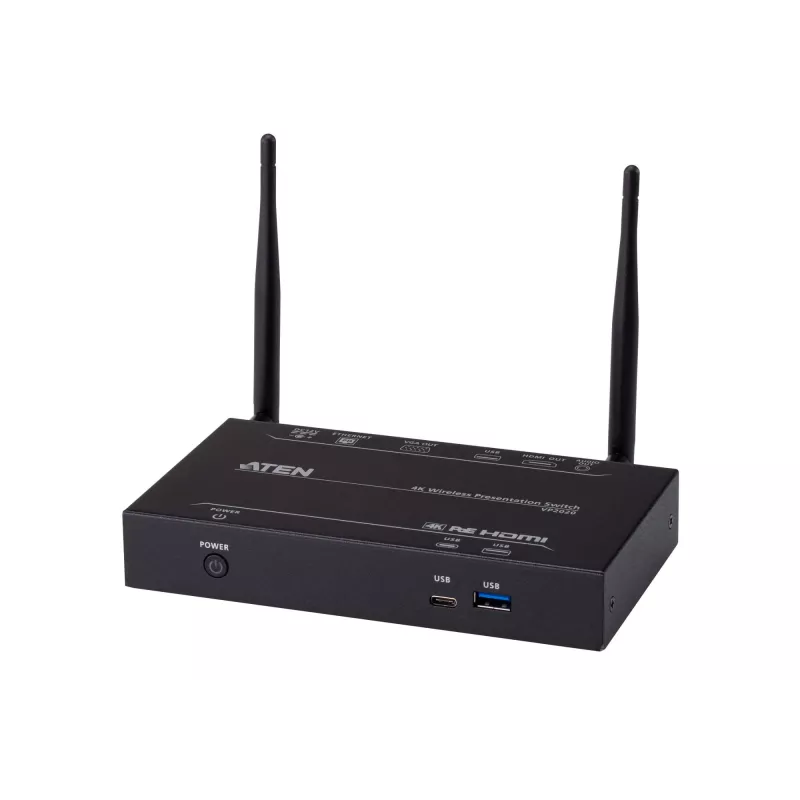

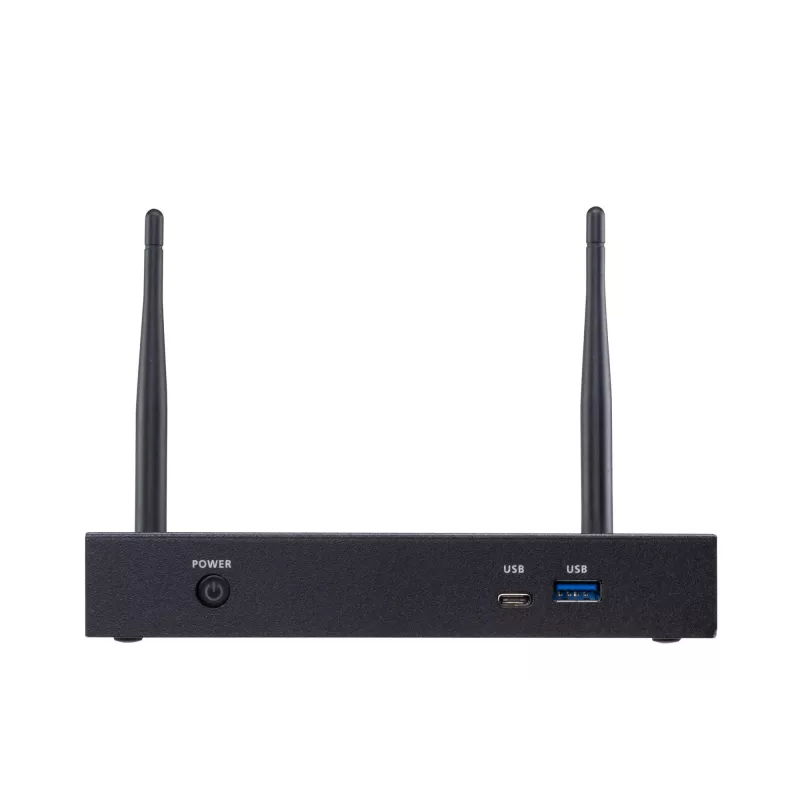

ATEN 4K bezdrôtový prezentačný prepínač stolný čierny HDMI VGA Wi-Fi 5

ATEN PresentON™ VP2020 is a wireless BYOD solution that enables anyone, including visitors, to easily share content from any laptop or mobile device so that participants can actively collaborate for enhanced, efficient workflows.

The VP2020 features Multi-view and audio out, which are designed to increase content-sharing flexibility. Moreover, it is equipped with USB touch back and moderation mode functions, allowing presenters to easily control meetings. In addition, its PoE connectivity makes installation easy. It’s perfectly suited for both huddle spaces and large meeting spaces and is flexible enough for corporate or education use.

Start Multi-party Collaboration Instantly
Simultaneous display of different presentations from different sources enables teams to rapidly engage in discussions, brainstorm ideas, and increase creativity and collaboration.

BYOD Wireless Sharing without Limitations
Wirelessly share BYOD presentation content with ATEN software on PC, mobile apps, and web browsers; compatible with Airplay* and Google Cast* for unlimited sharing and collaboration.

Get Control on Your Side with USB Touch Back
USB Touch Back can control remote laptops with a mouse or touchscreen, allowing the speaker to take the lead in meetings and be more efficient without having to move about just to access devices.

Manage Shared Content with Moderation Mode
Moderation Mode allows presenters to easily control and manage the content shared by other participants, including muting, stopping all sharing, and disconnecting a participant.

Flexible & Clear: Audio Your Way
With 3.5 mm audio output to increase the flexibility of use, not only is meeting audio crystal clear, but also it can be integrated with the audio system to enhance the audio-visual experience.

Faster, Easier Setup means Less Hassel
With PoE, only one network cable is needed for power and information transmission, eliminating complicated wiring and offering flexibility in space deployment and speedy installation.

ATEN 4K Wireless Presentation Switch. Form factor: Desktop, Product colour: Black, Housing material: Metal. Maximum resolution (VGA): 1920 x 1080 pixels, Maximum resolution (HDMI): 4096 x 2160 pixels, Supported graphics resolutions: 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280.... Antenna type: External. Wi-Fi standards: Wi-Fi 5 (802.11ac), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Frequency band: 2.4/5 GHz. Interface: HDMI + VGA (D-Sub)

How to use

Connect the VP2020 to the room display via HDMI or VGA and link the device to the network using a PoE network cable for both power and connectivity. Install the ATEN software on presenter laptops or use the mobile/web apps; presenters can also connect via AirPlay or Google Cast where supported. To present, select the VP2020 from the device list in the app or cast menu and start sharing content. Use the USB touch back feature to control a connected laptop from a touchscreen monitor or mouse, and use moderation mode on the unit or via the management interface to approve or manage participant streams.

Recommendations

For reliable multi‑user sharing, place the VP2020 where external antennas have clear line of sight to presenter devices, use PoE for simplified installation, and verify display resolution and audio routing before important meetings.
