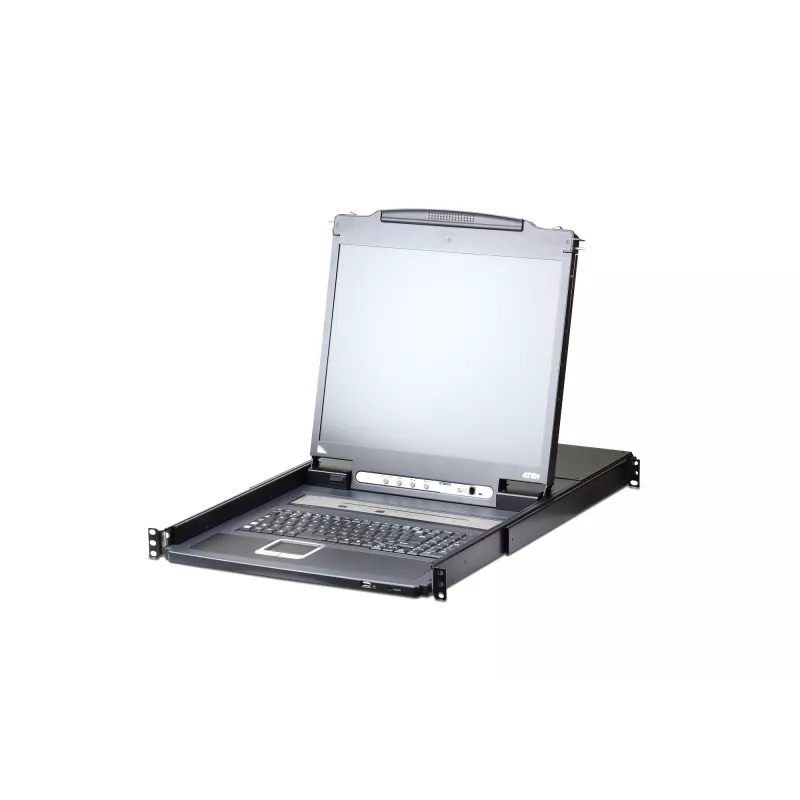

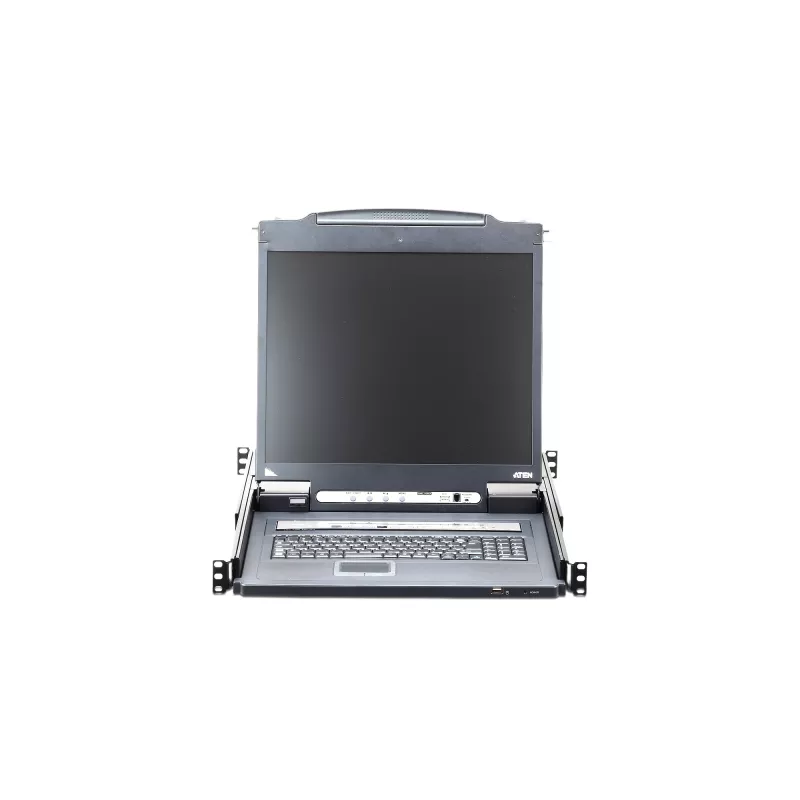

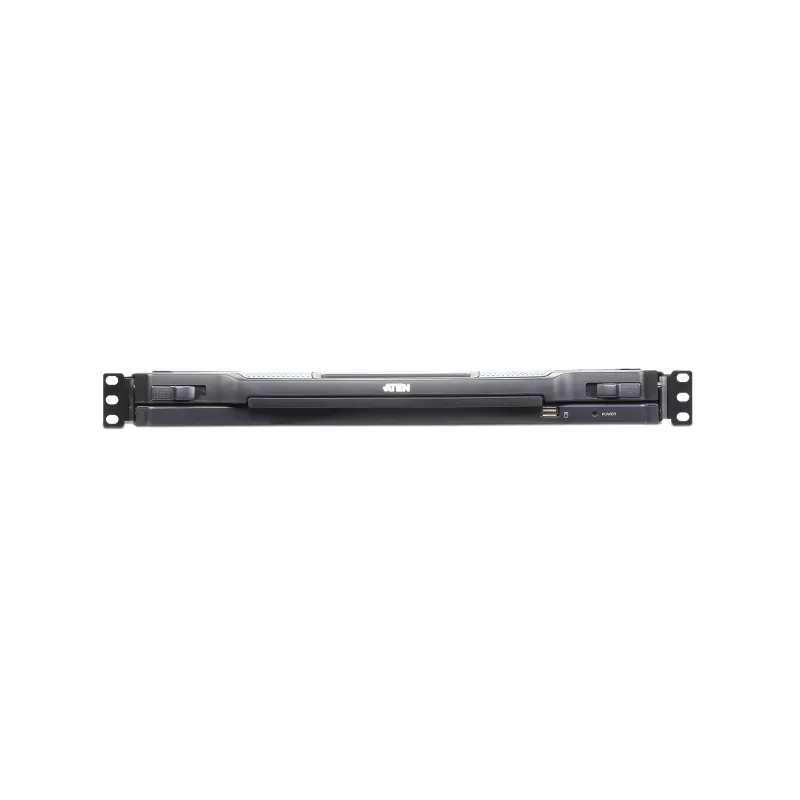

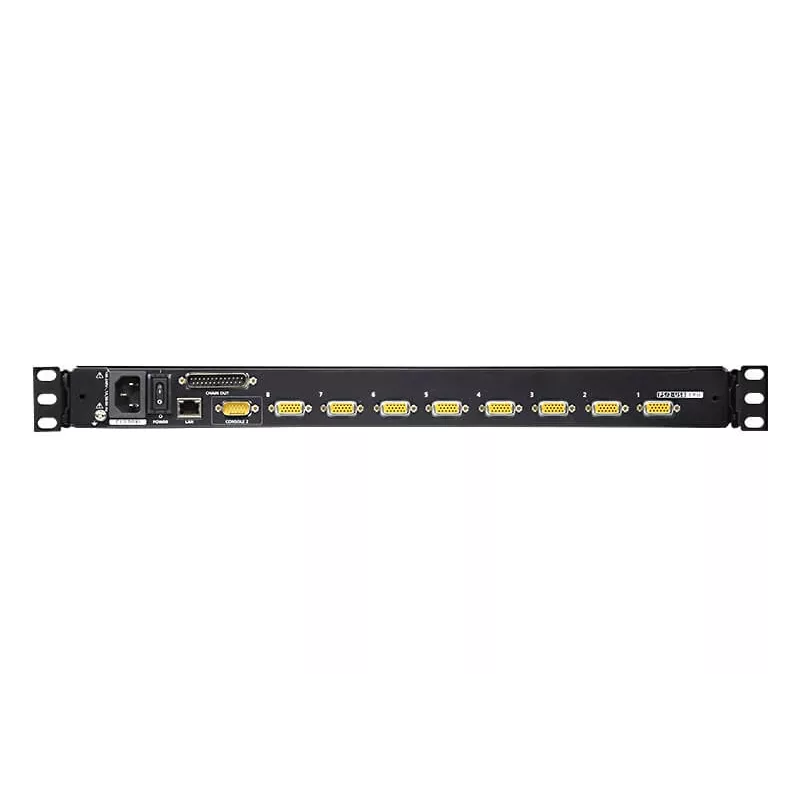

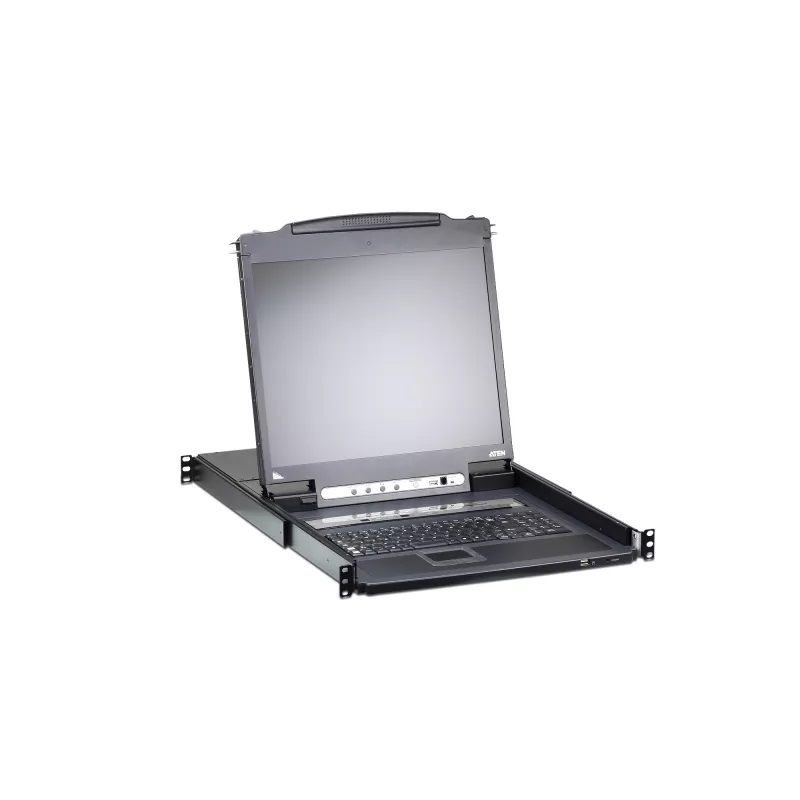

ATEN 8-portový 43,2 cm (17") LCD KVM switch over IP (USB - PS/2 VGA) s USB portom pre periférie

The ATEN CL5708IM Rack mounting Black is a 1U rack-mountable KVM switch designed for centralized control of multiple servers in data centers and server rooms. It integrates a 17" retractable LCD display with keyboard and touchpad into a single slide-out console, supporting both USB and PS/2 keyboard and mouse connections and VGA video output with a maximum resolution of 1280 x 1024 pixels. The unit combines a metal and plastic housing for stable installation and everyday use while offering video bandwidth up to 75 Hz to maintain clear on-screen visuals.

Advantages

The CL5708IM provides space-efficient rack integration with a compact 1U design and a slide-out console that simplifies local access to connected systems. Compatibility with both USB and PS/2 input devices ensures flexibility when connecting legacy or modern peripherals. VGA support with 75 Hz video bandwidth and a 17" LCD enables reliable on-screen management and monitoring. The robust metal and plastic construction enhances durability for continuous operation in managed environments.

Suitable for

• Server rooms and data centers requiring consolidated local access to multiple servers
• IT maintenance tasks, troubleshooting and configuration of rack-mounted systems
• Environments where mixed USB and PS/2 peripherals are used
• Facilities that use VGA video connections and require standard SXGA resolution monitoring

Key specifications

• Form factor: 1U rack-mountable KVM switch with slide-out console
• Console display: 17" built-in LCD
• Supported video: VGA, up to 1280 x 1024 pixels, video bandwidth 75 Hz
• Keyboard/mouse interfaces: USB and PS/2 support
• Switching capacity: controls up to 128 computers (via cascading/compatible KVM topology)
• Construction: metal and plastic housing, black finish
• Weight: approximately 13.49 kg

How to use

Install the KVM switch into a standard 19" equipment rack using the provided mounting brackets and secure all screws according to rack specifications. Connect VGA, keyboard and mouse cabling from each server to the corresponding KVM ports on the switch, choosing USB or PS/2 connectors as required by the connected systems. Power on the unit and use the on-console controls to switch between connected computers; cascading or additional KVM modules may be added to reach the full number of supported systems. Adjust the 17" display and use the integrated keyboard and touchpad for local configuration and maintenance of target machines.

Recommendations

For optimal performance, use high-quality VGA cables and maintain cable lengths within recommended limits to preserve signal integrity at 1280 x 1024 resolution. When managing a mixed environment of USB and PS/2 devices, verify device compatibility at initial setup and keep firmware up to date on connected equipment. Ensure adequate ventilation in the rack to prevent overheating during continuous operation.
