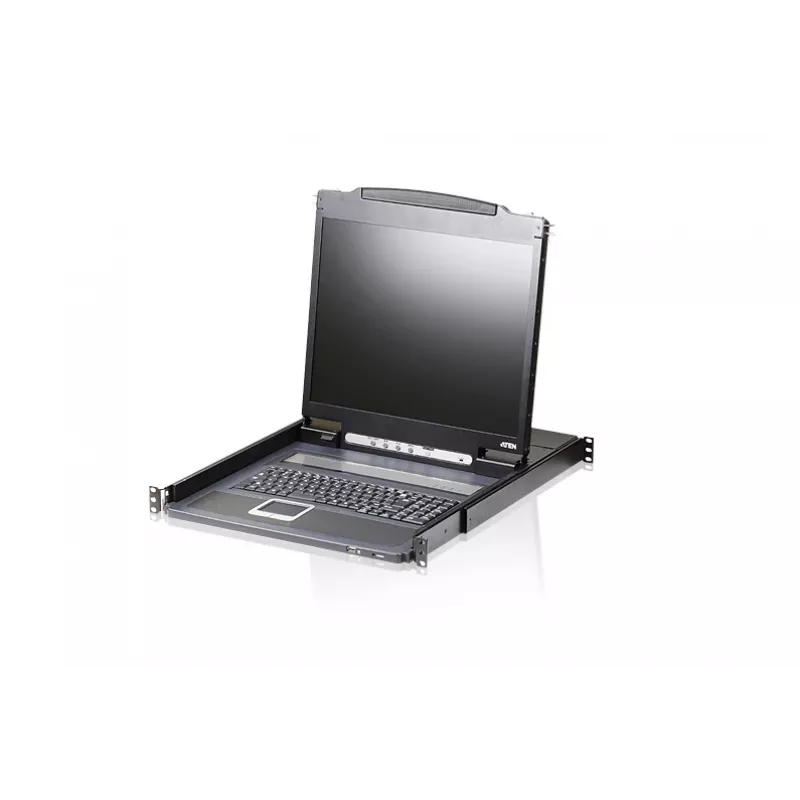

ATEN CL3000N Racková konzola 48,3 cm (19 inch) 1280 x 1024 pixelov hliník čierna 1U

The ATEN CL3000N is a 1U rack console with an integrated 19" display offering a native resolution of 1280 x 1024 pixels. Designed for data center and server rack environments, this compact console provides a VGA video port and supports both USB and PS/2 keyboard and mouse connections. The unit runs from an external AC adapter compatible with 100–240 V input and has a typical power consumption of 22.7 W, making it suitable for standard server-room power conditions.

Advantages

The rack-mount design saves space in 19" cabinets while providing an integrated monitor, keyboard and touchpad for local server management. Dual input support for USB and PS/2 peripherals ensures compatibility with a wide range of servers and legacy equipment. The 1280 x 1024 native resolution delivers clear text and interface elements for administrative tasks, and the VGA video port allows straightforward connection to existing infrastructure. Low typical power consumption contributes to energy-efficient operation in multi-rack installations.

Suitable for

• On-site server administration in 19" rack environments
• Data center cabinets requiring space-efficient local consoles
• Maintenance and troubleshooting of legacy and modern servers
• IT rooms where VGA video and mixed USB/PS/2 peripheral support are needed

Key specifications

• Form factor: 1U rack console with 19" integrated display
• Native resolution: 1280 x 1024 pixels
• Video interface: VGA
• Peripheral interfaces: USB and PS/2 for keyboard and mouse
• Power: AC adapter input 100–240 V, typical consumption 22.7 W
• Physical design: compact rack-mountable unit for 19" cabinets

How to use

Mount the console in a standard 19" rack using the included brackets and fasteners, ensuring secure attachment at the 1U position. Connect the VGA cable to the server video output and attach keyboard and mouse using either USB or PS/2 connectors as required. Plug the supplied AC adapter into a compatible 100–240 V power outlet and verify power-on indicators. Use the integrated controls to adjust display settings and operate the keyboard and touchpad for server configuration, monitoring, and maintenance tasks.

Recommendations

For reliable operation, install the console in a well-ventilated rack location and avoid obstructing airflow around the unit. Use appropriate cable management to prevent strain on VGA and peripheral connectors. When connecting to legacy equipment, choose PS/2 where required; otherwise prefer USB for broader compatibility. Regularly check power connections and ensure the AC adapter matches local voltage requirements.
