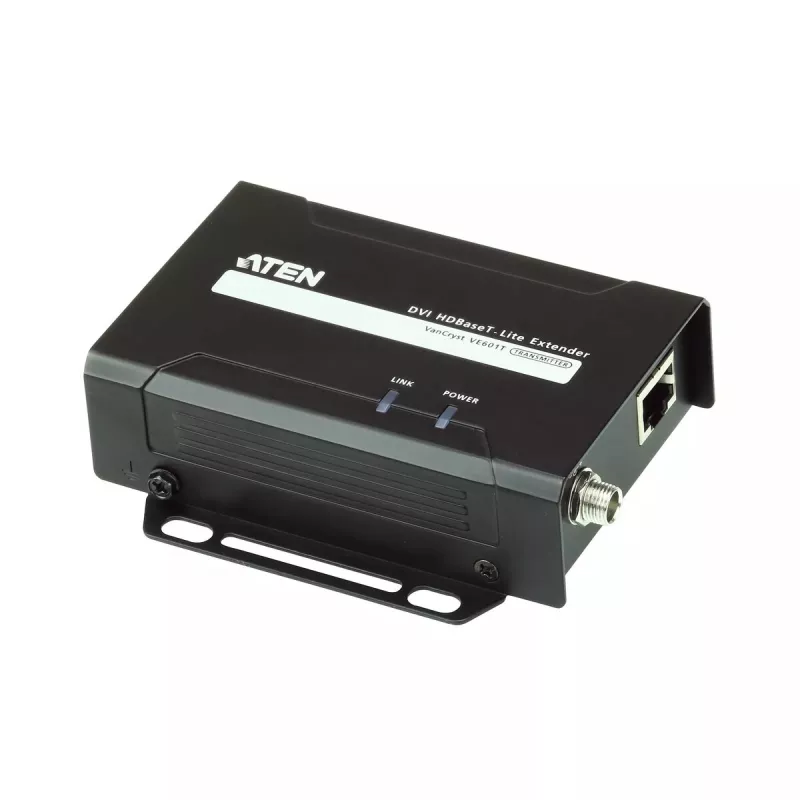

AV vysielač ATEN VE601T

The ATEN VE601T AV transmitter extends a DVI video signal over Ethernet cable, delivering DVI 1080p up to 70 m and supporting up to 1920 x 1200 resolution at distances up to 40 m. Designed for professional A/V installations, the compact VE601T supports Cat5e/Cat6/Cat6a cabling and provides video signal protection suitable for environments that require reliable interference resistance.

Advantages

The VE601T combines ATEN engineering with HDBaseT-Lite technology to provide a simple, adaptable and cost-effective extension solution. Its lightweight, easy-to-mount enclosure and slip-resistant DC jack lock enable flexible installation locations while maintaining a secure power connection. The unit’s compatibility with designated HDBaseT receivers ensures straightforward system integration.

Suitable for

• Professional A/V distribution in conference rooms and lecture halls
• Medical and military installations requiring signal interference protection
• Digital signage and remote display installations

Key specifications

• Type: AV transmitter

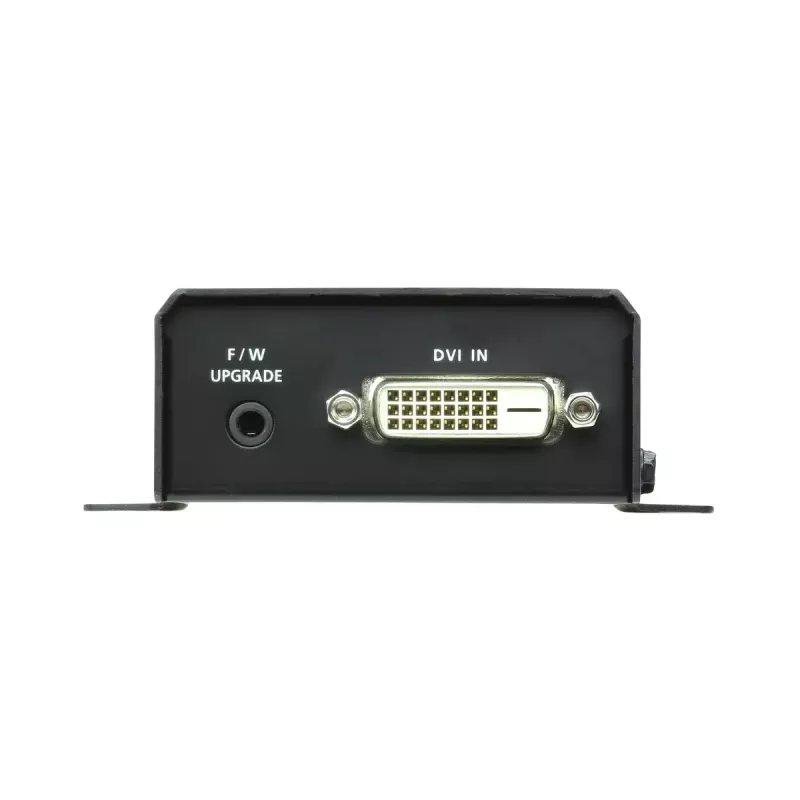

• Video input: DVI-D Female
• Maximum resolution: 1920 x 1200 (up to 40 m); DVI 1080p up to 70 m
• Cable types supported: Cat5e, Cat6, Cat6a

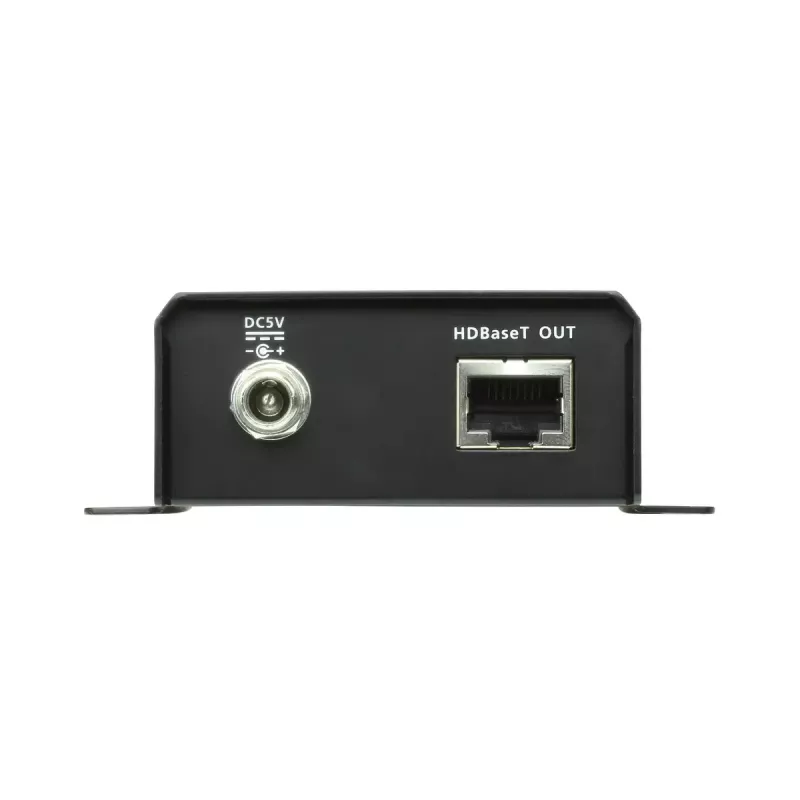

• Power: 5 V, typical consumption 1.85 W
• Dimensions: 87 x 103 x 30 mm
• Weight: 250 g
• Colour: Black

How to use

Connect the source device to the VE601T’s DVI-D input, connect the unit to a compatible HDBaseT receiver (for example VE601R or VE801R) using Cat5e/Cat6/Cat6a cable, and apply 5 V power to the transmitter. Ensure cable runs do not exceed the supported distances for the desired resolution. Mount the unit using the included fixtures or place it on a stable surface; the DC jack lock helps secure the power connector during operation.

Recommendations

For best performance, use Cat6 or Cat6a cabling for runs approaching the maximum distances, verify receiver compatibility, and keep cables away from strong electromagnetic sources. If higher resolutions or longer distances are required, consider system design options or alternative extenders that meet those needs.
