ATEN CL3108 racková konzola 47 cm (18,5 palca) 1366 x 768 pixelov kov, plast čierna 1U

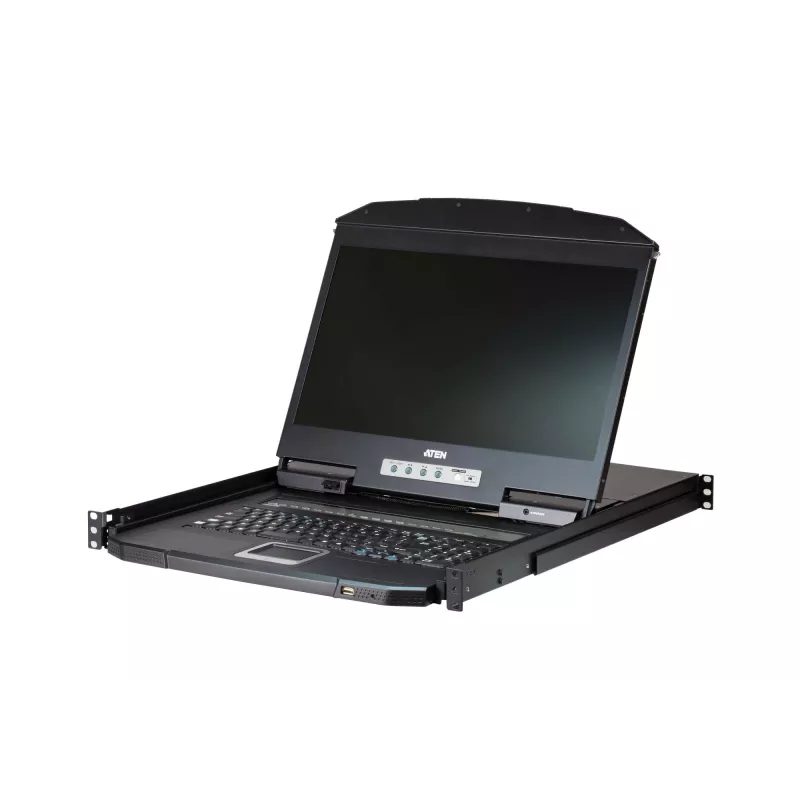

The ATEN CL3108 is a 1U rack-mountable rack console that integrates an 18.5" LED-backlit LCD monitor (1366 x 768), a keyboard and a touchpad in a short-depth sliding housing. Designed for space-constrained server rooms, it supports USB and PS/2 keyboard/mouse connections and provides a VGA video port. The compact design and built-in LED illumination light improve usability in narrow racks and low-light environments.

Advantages

The CL3108 saves rack space by combining monitor, keyboard and touchpad in a single 1U unit while keeping a short installation depth for narrow enclosures. It supports up to 8 connected computers directly and can be cascaded to control up to 128 systems. Features such as Broadcast mode and Auto scan increase operational efficiency, and two-level password security restricts unauthorized access. An additional hot-pluggable USB mouse port provides convenience for HID devices.

Suitable for

• Server rooms and racks with limited depth or space
• Control rooms requiring compact console management
• IT maintenance and monitoring tasks across multiple servers
• Environments needing simultaneous command distribution (Broadcast mode)

Key specifications

• Display: 18.5" LED-backlit LCD, 1366 x 768 pixels
• Form factor: 1U rack-mountable, short-depth sliding housing

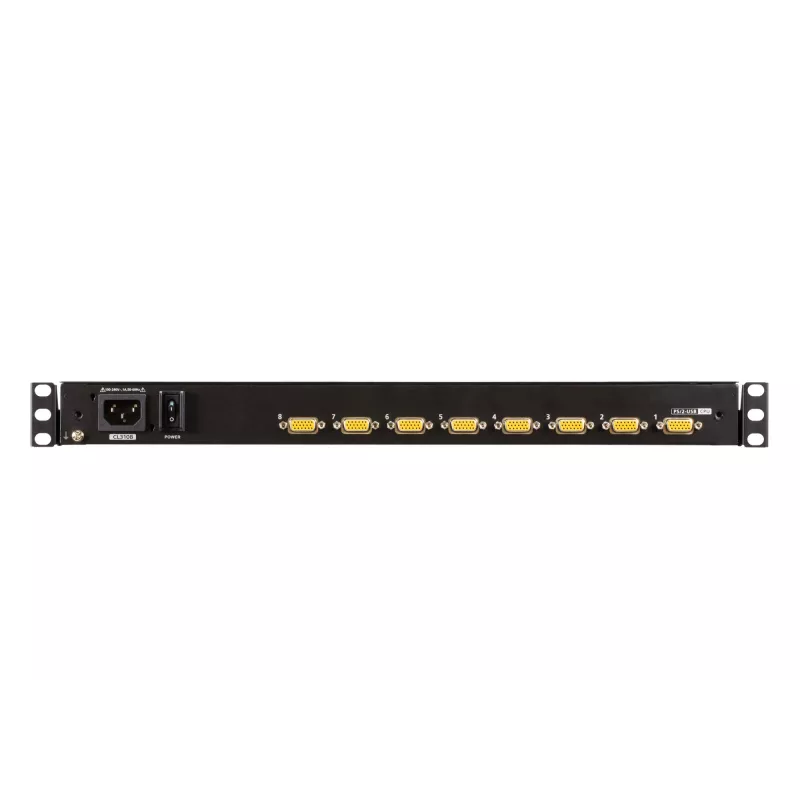

• Ports: VGA video; USB and PS/2 for keyboard and mouse; additional hot-pluggable USB mouse port (HID only)
• Maximum direct ports: controls up to 8 computers (expandable to 128 via cascading)
• Security: two-level password protection
• Weight: 10.5 kg
• Colour: Black

How to use

Install the CL3108 into a 1U rack slot and secure the sliding housing according to the rack-mount instructions. Connect server VGA outputs and keyboard/mouse ports (USB or PS/2) to the KVM ports on the device. Power the unit and use the integrated keyboard and touchpad to switch between connected computers. Use the front-panel controls or keyboard hotkeys to access Broadcast mode, Auto scan, and user management functions. For cascading multiple units, follow ATEN cascading instructions to expand control up to 128 systems.

Recommendations

For best performance, ensure VGA cable quality and avoid excessive cable lengths. Use the LED illumination when working in low-light racks, and configure two-level passwords to maintain access control. When cascading, verify compatibility and cabling order to prevent signal or control conflicts.
