ATEN CL6708MW racková konzola 43,9 cm (17,3 palca) čierna 1U

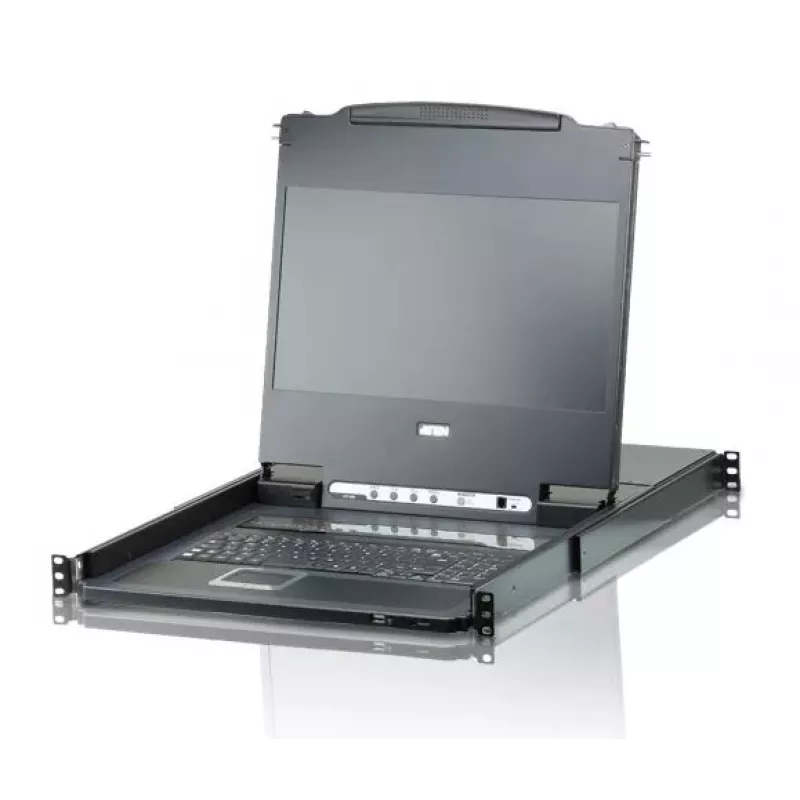

The ATEN CL6708MW is a 1U rack-mountable LCD KVM switch with native DVI compatibility and a 17.3" LED-backlit LCD panel that supports full HD 1920 x 1080 resolution. Designed to save space by integrating an LCD display, full keyboard and touchpad into a slim housing, the CL6708MW controls up to 64 computers when cascaded with additional CS1768 8-port KVM switches. It supports YUV video format for improved compatibility with high-definition sources and is HDCP compatible for use with protected content.

Advantages

The CL6708MW provides high-definition DVI/DisplayPort video output and native support for HDCP-protected media. Its integrated 17.3" full HD display offers clearer video than typical analog interfaces, and the unit’s compact 1U rack design consolidates monitor, keyboard and touchpad into a single device. USB keyboard and mouse ports simplify peripheral connections, and an included LED illumination light improves usability in low-light environments.

Suitable for

• Server rooms and data centers where space-saving rack solutions are required
• AV or surveillance systems using HD/NVR video sources
• Corporate, educational, and commercial environments requiring HDCP-compatible KVM access

Key specifications

• Model: ATEN CL6708MW (MPN: CL6708MW-ATA-2XK06SG)
• Screen: 17.3" LED-backlit LCD, full HD 1920 x 1080
• Video ports: DVI / DisplayPort (YUV video format supported)
• Keyboard / Mouse: USB
• Maximum computers controllable: Up to 64 (with cascading via CS1768 switches)
• Rack size: 1U
• Input voltage: 100–240 V
• Weight: 12.7 kg
• Colour: Black
• EAN: 5711783215806

How to use

Install the CL6708MW into a standard 1U rack space and connect power (100–240 V). Attach DVI/DisplayPort video cables and USB keyboard and mouse to the console ports. Connect each target computer to the KVM ports; to expand control to up to 64 computers, cascade up to eight CS1768 8-port KVM switches according to ATEN’s cascading instructions. Use the integrated keyboard, touchpad and the 17.3" display to switch and manage connected systems, and enable the LED illumination light for visibility in low-light conditions.

Recommendations

For reliable HD video and protected-media playback, use quality DVI/DisplayPort cables and ensure connected sources support YUV output and HDCP where required. Follow ATEN’s installation and cascading guidelines to maintain signal integrity and system stability.
