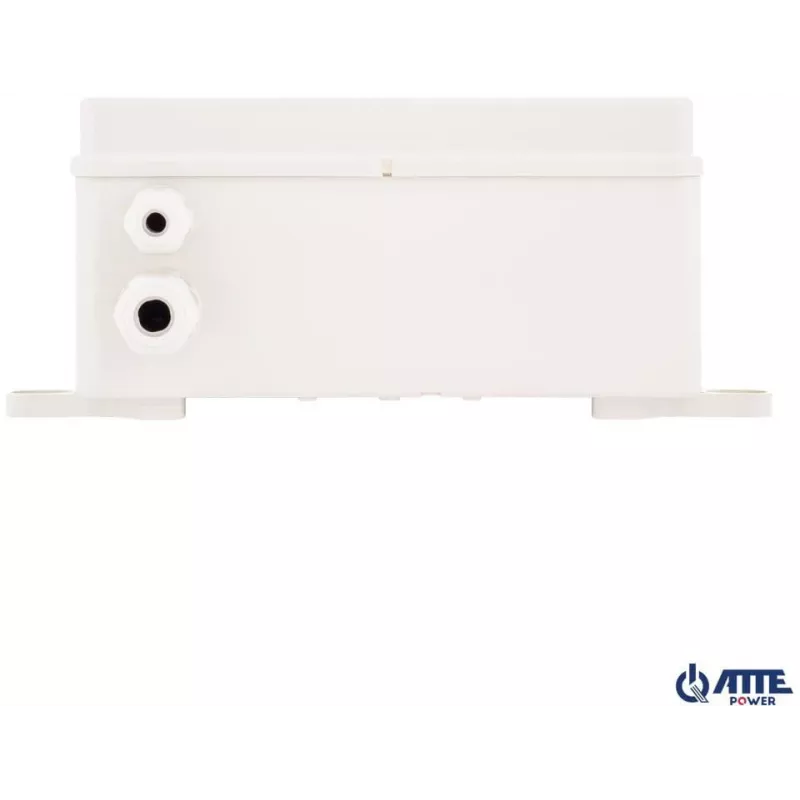

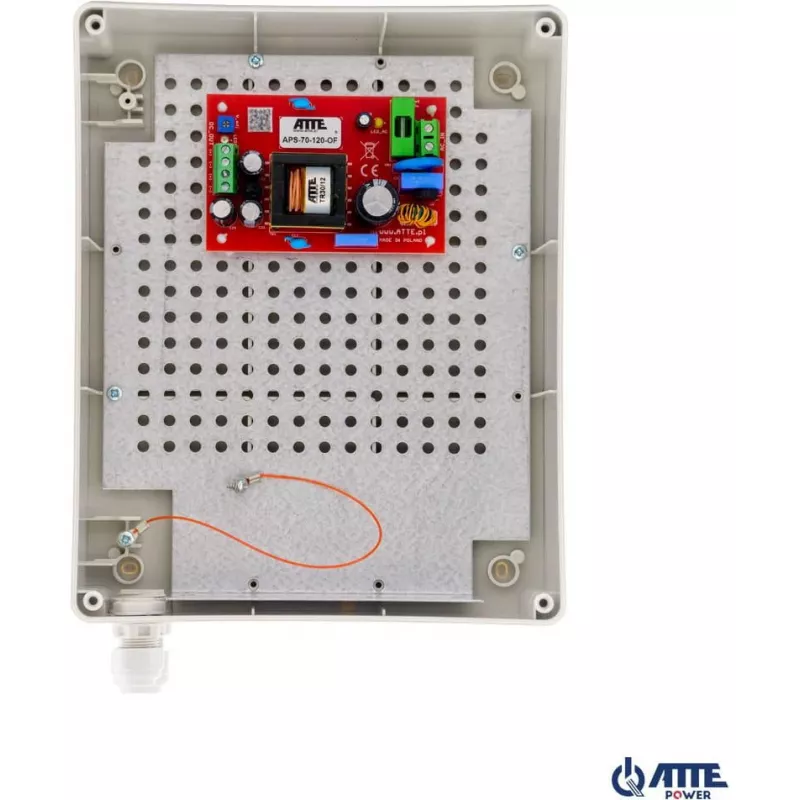

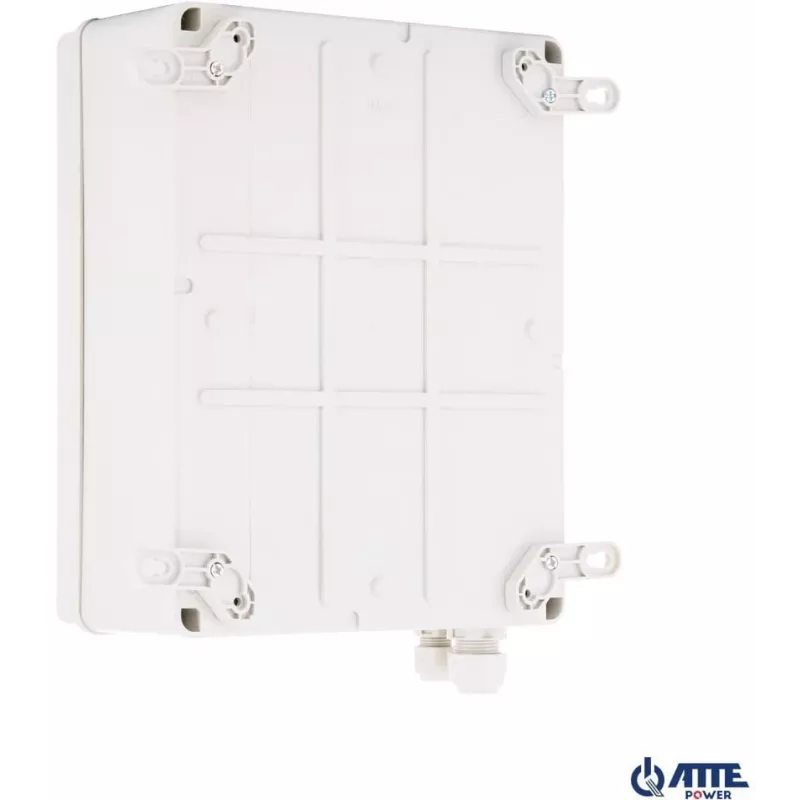

ATTE APS-70-120-L1 SMPS napájací zdroj 12V 6A 72W

The ATTE APS-70-120-L1 is a high-performance switched-mode power supply (SMPS) delivering 12V DC at 6A with a total output power of 72W. Designed for reliability and efficiency, this power supply is ideal for a wide range of industrial, commercial, and DIY applications. Its fanless design ensures silent operation, making it suitable for noise-sensitive environments.

Advantages

This power supply offers high efficiency (>85%), reducing energy waste and heat generation. The passive cooling system eliminates moving parts, enhancing durability and reliability. Built-in protection features safeguard connected equipment against overload, short circuit, and over voltage conditions.

Suitable for

• LED lighting systems
• CCTV cameras and security systems
• Industrial automation and control equipment
• Home automation projects
• Audio/video equipment

Key specifications

• Output Voltage: 12V DC
• Output Current: 6A
• Output Power: 72W
• Input Voltage: 100-240V AC
• Input Frequency: 50/60 Hz
• Efficiency: >85%
• Protection: Overload, Short Circuit, Over Voltage
• Cooling: Passive (Fanless)
• Output Connector: Screw Terminals
• Input Connector: IEC C14 Socket
• Operating Temperature: -10°C to +50°C
• Ripple and Noise: <150mVp-p
• Housing Material: Metal Enclosure
• Certifications: CE, RoHS

Recommendations

For optimal performance, ensure proper ventilation around the power supply. Use appropriate gauge wires for the output connections. This unit is designed for indoor use only.
