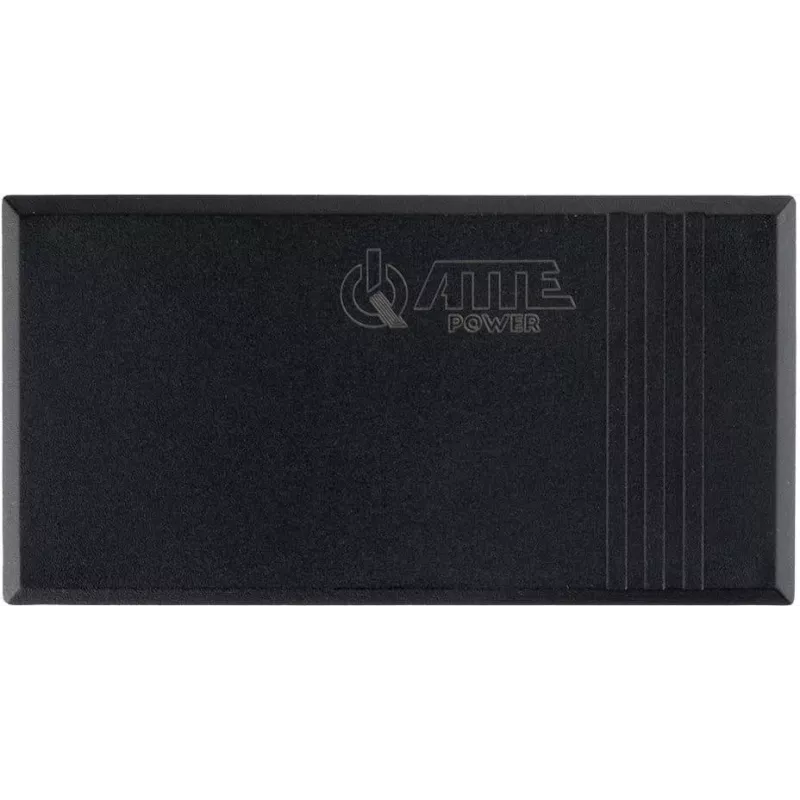

ATTE IPMP-70-550 pasívny PoE midspan injektor 55V 70W

The ATTE IPMP-70-550 is a high-performance Passive PoE Midspan Injector designed to deliver reliable power over Ethernet for demanding network devices. With an output of 55V DC and up to 70W, this injector is ideal for powering PoE-compatible equipment such as IP cameras, wireless access points, and VoIP phones that require higher power levels. It supports Gigabit Ethernet data rates (10/100/1000 Mbps) and features robust surge protection, ensuring stable and secure operation in various environments.

Advantages

This PoE injector offers a cost-effective solution for extending power to devices without the need for additional electrical outlets. Its metal enclosure provides durability, while the wall-mount and desktop mounting options offer flexible installation. The device includes LED indicators for power and PoE status, simplifying monitoring and troubleshooting.

Suitable for

• IP surveillance cameras requiring high power
• Wireless access points and bridges
• VoIP phones and video phones
• Network devices in remote or hard-to-reach locations

Key specifications

• PoE Type: Passive PoE Midspan Injector
• PoE Output Voltage: 55V DC
• Max. PoE Output Power: 70W
• Data Transfer Rate: 10/100/1000 Mbps (Gigabit Ethernet)
• Input Voltage: 100-240V AC, 50/60Hz
• Data Input Port: 1x RJ45
• PoE Output Port: 1x RJ45
• PoE Power Pins: Data pairs 4,5 (+) / 7,8 (-)
• Ethernet Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• LED Indicators: Power, PoE Status
• Operating Temperature: -25°C to 55°C
• Operating Humidity: 10% to 90% RH (non-condensing)
• Protection Features: Overload, Short-circuit, Over-voltage, Surge Protection
• Enclosure Material: Metal
• Mounting Type: Wall-mount, Desktop
• Power Input Connector: IEC C14

Recommendations

For optimal performance, use with compatible PoE devices that support 55V passive PoE. Ensure proper ventilation and avoid exposure to extreme temperatures or moisture.
