Auerswald TFS-Dialog 211 hliník drôtový nástenný interkom IP22

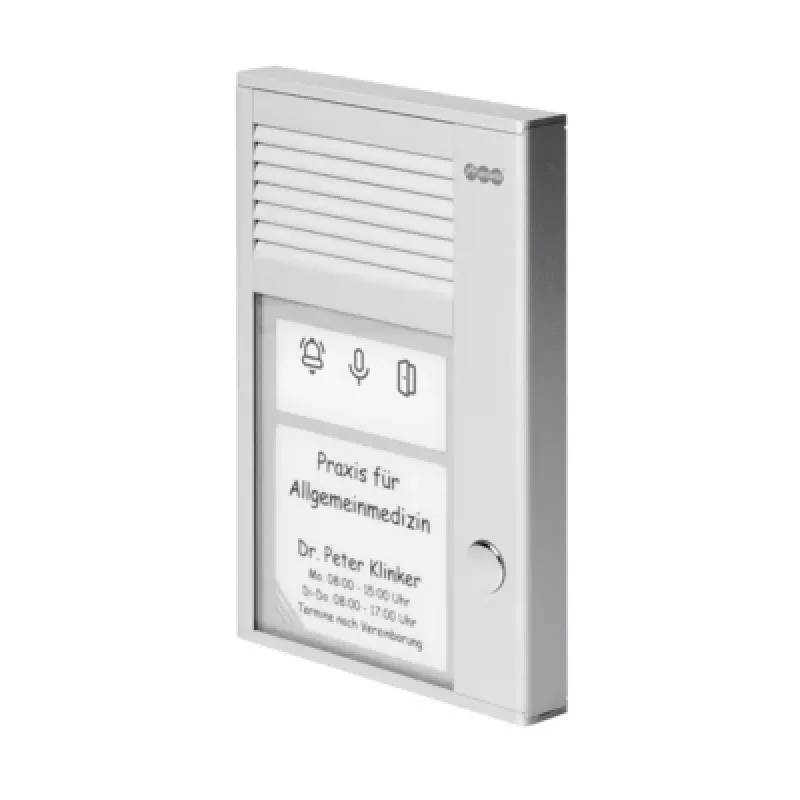

The Auerswald TFS-Dialog 211 Aluminium Wired Wall Intercom IP22 is a compact, wall-mounted intercom unit designed for fixed installations. Constructed with an aluminium front plate and a slim profile, it provides a durable interface for voice communication in residential and light commercial settings. The device offers protection against solid objects and dripping water with its IP22 rating and fits into narrow mounting spaces thanks to its 104 mm width and 16 mm depth while standing 153 mm tall.

Advantages

The aluminium housing combines strength and corrosion resistance while keeping the unit lightweight. The wired connection ensures stable audio transmission without reliance on wireless networks, and the IP22 protection rating helps protect internal components from accidental contact and vertical dripping water. Its compact dimensions allow installation in confined wall cavities or in-line with other wall-mounted devices.

Key specifications

• Material: aluminium front plate
• Protection class: IP22 (protection against solid objects >12.5 mm and vertical dripping water)
• Dimensions (W × D × H): 104 mm × 16 mm × 153 mm
• Mounting: wall-mounted, wired connection
• Application: indoor use in sheltered locations

How to use

Install the intercom on a stable wall surface at a height appropriate for typical users. Connect the device to the building’s wired intercom or telephony system following the supplier’s wiring diagram and local electrical regulations. Ensure cable routing avoids sharp bends and interference sources. After powering the system, test audio transmission and any call functions to confirm correct operation.

Recommendations

For optimal performance, install the unit in sheltered indoor locations away from direct water exposure and extreme temperatures. Use corrosion-resistant fasteners for mounting on external-facing walls and follow the building wiring standards to maintain signal integrity.
