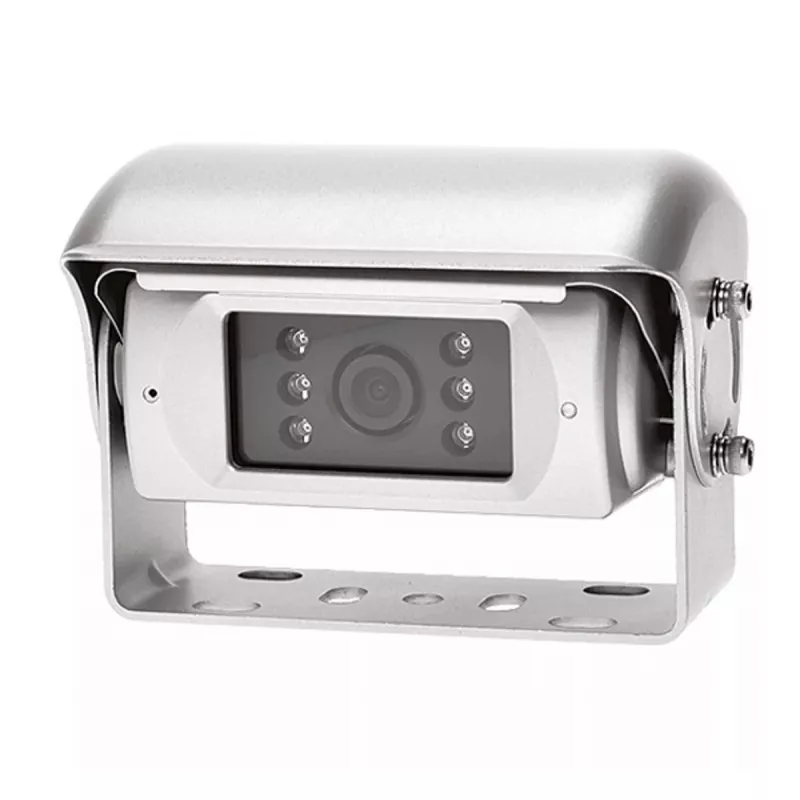

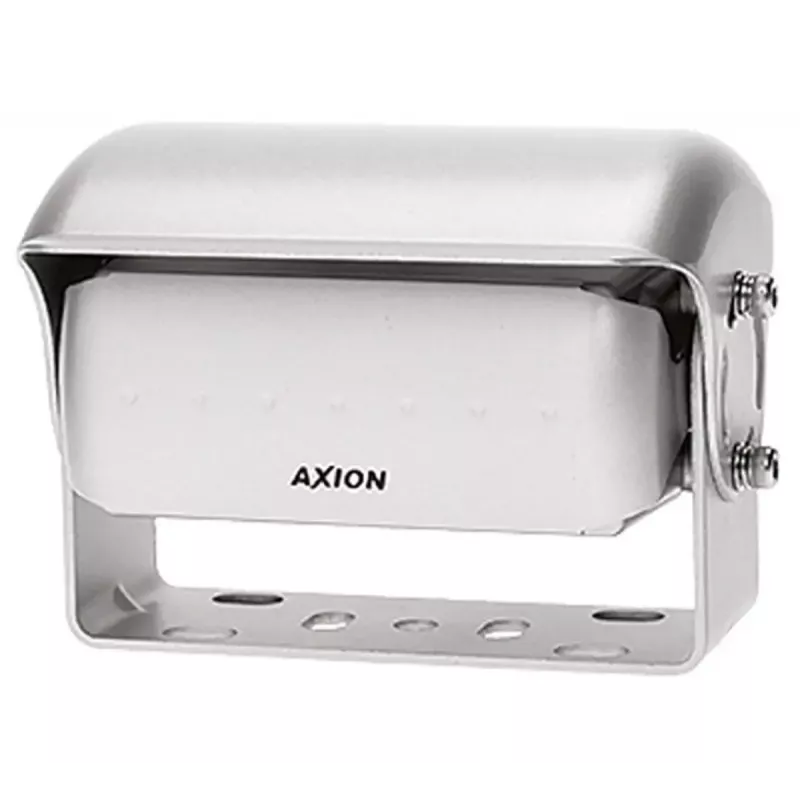

Auto cúvacia kamera káblová Axion DBC 114065 S1

The Axion DBC 114065 S1 wired car backup camera is a compact, moisture-resistant colour camera designed for reversing and parking assistance. It uses a CMOS image sensor with a 1/3" sensor size to deliver clear daytime images and incorporates IR LED night vision capable of illuminating up to 3 metres. The unit is built for demanding external use with an IP69K rating that ensures protection against high-temperature, high-pressure washdowns, and it includes shock-resistant and vandal-proof design features. The camera runs on a 12V power supply and comes with a 20 cm connection cable, with a motorized shutter for additional lens protection when the camera is not in active use.

Advantages

The camera combines a 1/3" CMOS sensor and IR LED night vision to provide usable imagery in both day and low-light conditions, while the motorized shutter reduces lens exposure to dirt and mechanical damage when parked. An IP69K housing and shock-resistant construction increase durability during heavy washdowns and rough driving conditions. Its compact dimensions and wired connection make integration into a variety of vehicle setups straightforward, and the 12V operation is compatible with standard automotive electrical systems.

Suitable for

• Rear-view and reversing assistance for passenger cars and light commercial vehicles
• Outdoor installation on vehicles exposed to washdowns and road spray
• Night-time parking and maneuvering where up to 3 m of IR illumination is required
• Applications where vandal resistance and mechanical robustness are important

Key specifications

• Image sensor type: CMOS
• Image sensor size: 1/3"
• Night vision: IR LED, up to 3 m
• Ingress protection: IP69K (high-pressure, high-temperature washdowns)
• Power supply: 12 V DC
• Connection cable length: 20 cm
• Physical dimensions (W × D × H): 110 × 75 × 85 mm
• Features: motorized shutter, shock resistant, vandal proof

How to use

Mount the camera in a suitable rear location on the vehicle where the field of view covers the intended reversing area. Secure the housing to a stable surface using appropriate fasteners and route the 20 cm connection cable to the vehicle’s display or processing unit; extend cabling as needed using automotive-grade connectors and shielding. Connect the camera to a 12 V DC power supply following polarity and grounding best practices, and configure the display or recorder to the camera’s video input. The motorized shutter engages to protect the lens when the camera is powered down or inactive; verify shutter operation during installation and adjust mounting angle to minimize glare and obstructions.

Recommendations

For reliable performance, clean the lens and housing periodically and avoid using abrasive cleaners. When installing on vehicles that undergo frequent high-pressure washdowns, ensure mounting points and cable glands remain sealed. Use compatible automotive connectors and, if necessary, route additional cable inside protective conduit to prevent mechanical damage or water ingress at connection points.
