Autorádio JVC KDX-282BT 1-DIN s Bluetooth 4.2, USB, CD, AUX, 8-pásmový EQ, 50W/kanál

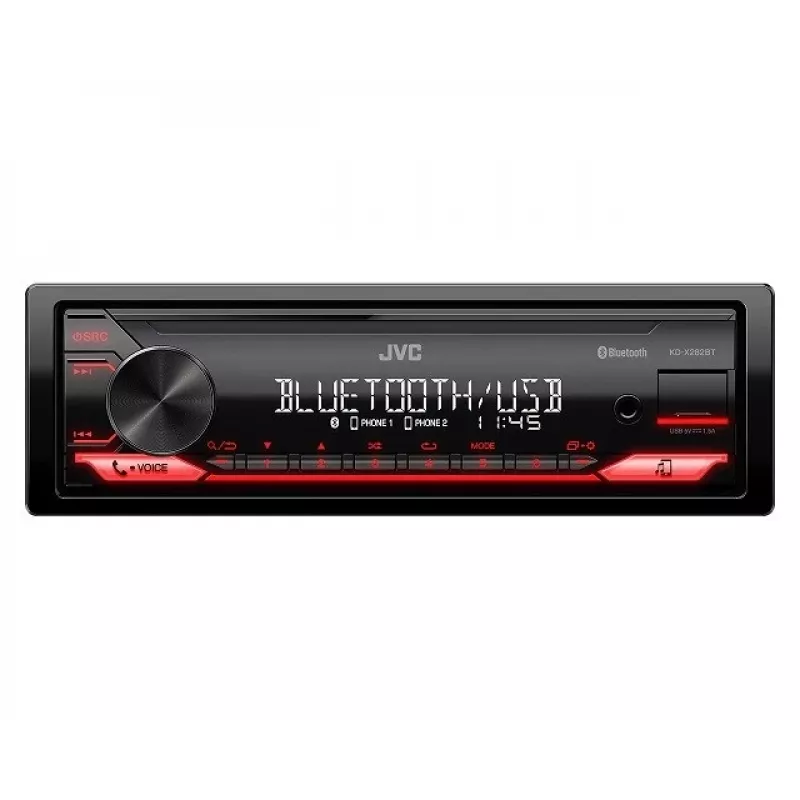

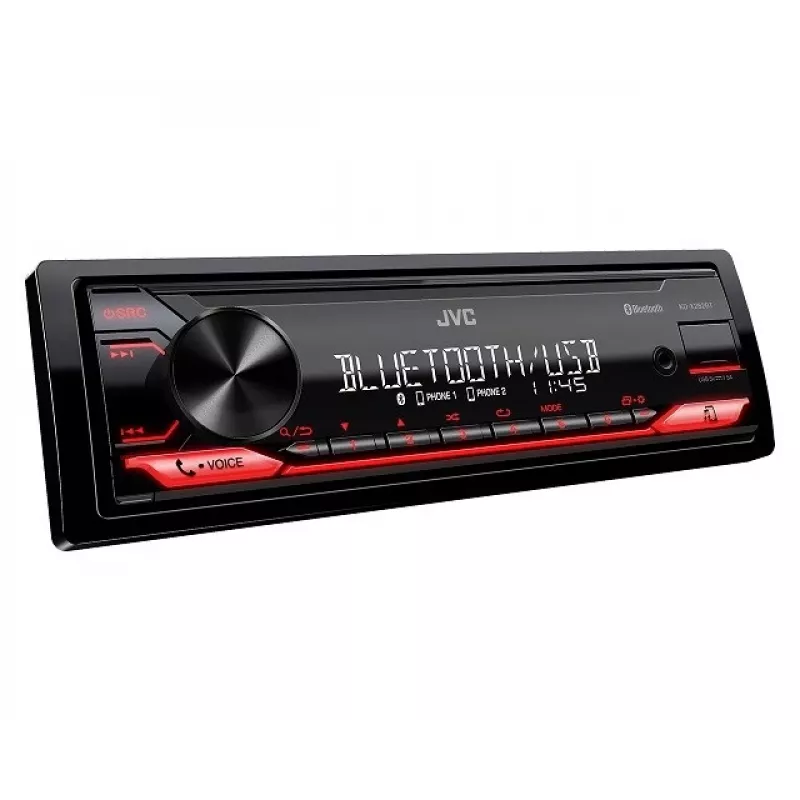

JVC KDX-282BT is a single-DIN car radio offering Bluetooth 4.2 for hands-free calling and audio streaming, USB direct playback and CD/MP3/CD-R support. The unit includes AUX input, detachable LCD with white/red illumination and dimmer, an 8-band equalizer, high- and low-pass filters, steering wheel remote control capability and ISO connector. Rated output power is up to 50 W per channel with a total output specification of 120 W; the radio stores up to 24 preset stations.

Advantages

The head unit combines multiple playback options (USB, CD, MP3) with wireless Bluetooth connectivity and hands-free calling. A detachable, illuminated LCD and key illumination provide clear visibility, while the 8-band equalizer and high/low-pass filters enable sound tuning. The single-DIN form factor and ISO connector simplify installation in compatible vehicles.

Suitable for

• Replacement or upgrade of a single-DIN car stereo
• Hands-free calling and Bluetooth audio streaming in vehicles
• Playing audio from USB drives, CDs and AUX devices
• Customizing in-car sound with an 8-band equalizer and filters

Key specifications

• Dimensions (W×D×H): 182 × 100 × 53 mm
• Form factor: 1 DIN
• Maximum power per channel: 50 W
• Total output power: 120 W
• Equalizer: 8-band
• High-pass and low-pass filters: Yes
• Display: detachable LCD, white/red illumination, dimmer
• Multimedia playback: CD, MP3, CD-R, USB direct playback
• Connectivity: Bluetooth 4.2 (AVRCP), USB port, AUX in, ISO connector
• Radio: FM 87.5–108 MHz, AM 531–1611 kHz, LW 153–279 kHz, RDS, 24 presets
• Call management: hands-free calling

How to use

Install the unit into a compatible single-DIN slot and connect wiring using the ISO connector following vehicle and JVC installation guides. Power the radio, pair your phone via Bluetooth for hands-free calling and audio streaming, or insert a USB drive or CD to play files. Use the detachable LCD and front-panel controls or steering wheel remote (if available) to navigate playback, adjust the 8-band equalizer and set high/low-pass filters as needed.

Recommendations

For reliable performance, use high-quality speaker wiring and ensure correct grounding. When installing, follow vehicle-specific fitting instructions and observe safety precautions for dashboard removal. Use the equalizer and filters to match speaker capabilities and avoid prolonged maximum volume to prevent speaker damage.
