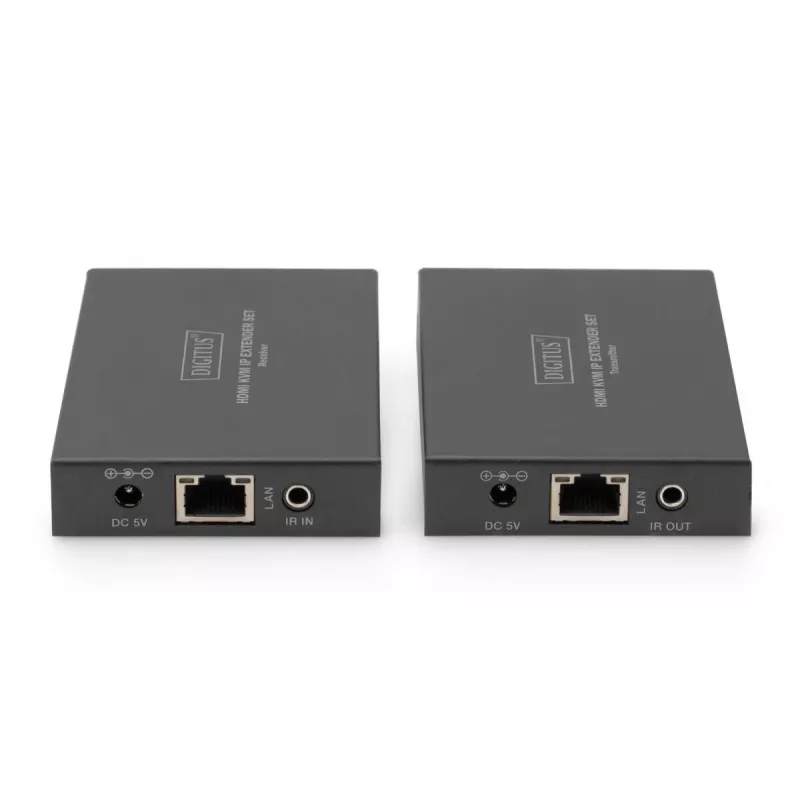

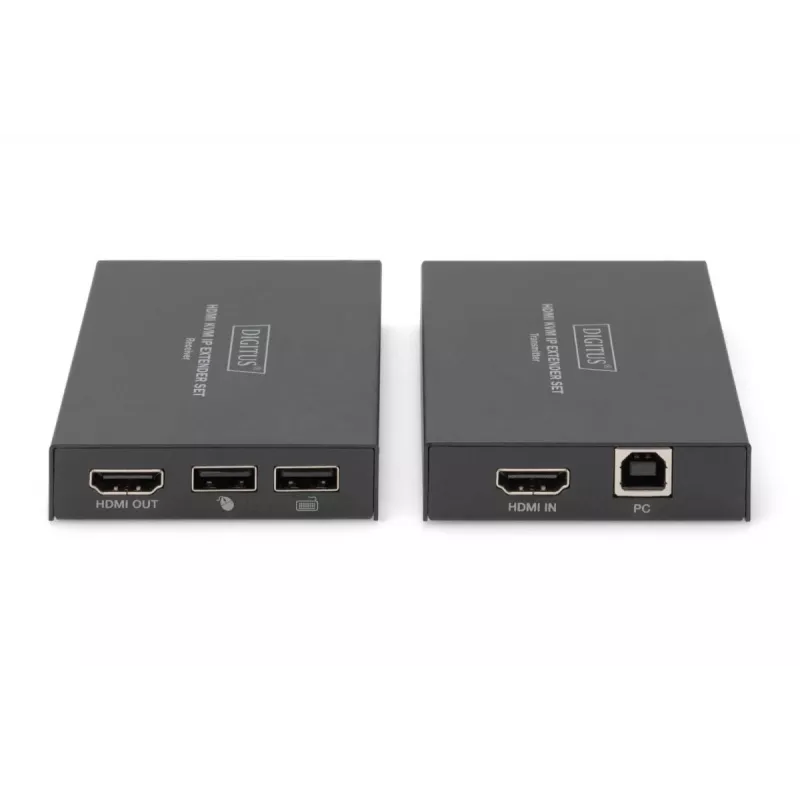

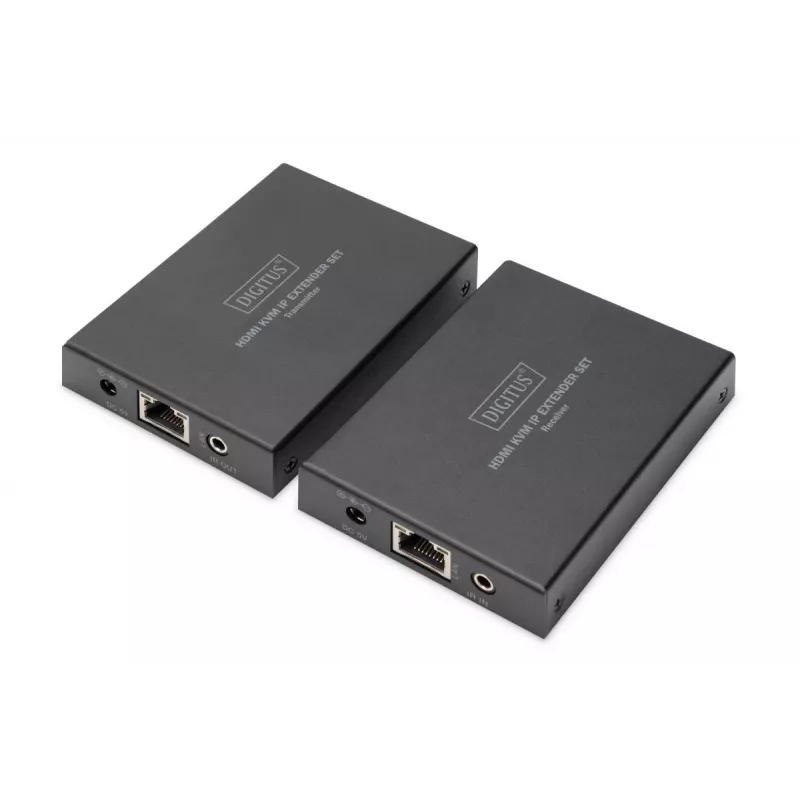

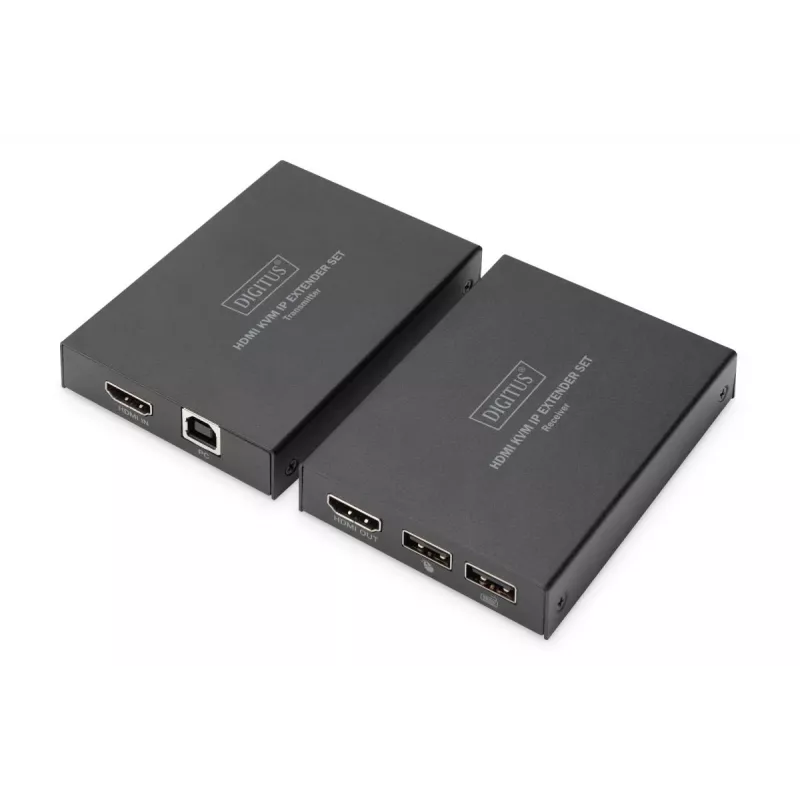

AV vysielač a prijímač, Digitus, HDMI KVM IP predlžovač set, 1920 x 1200 pixelov, 150 m

The Digitus HDMI KVM IP Extender Set extends an HDMI signal up to 150 m via a single network cable and also supports transmission over an existing IP network for unlimited-distance extension. The set includes a transmitter (local) and a receiver (remote) and supports video resolutions up to Full HD (1920 x 1200 / 60 Hz, 4:4:4). The receiver unit provides USB ports for KVM functionality, allowing control of the source device via a keyboard and mouse. The units feature a compact metal housing and support CAT 5e/6/6A/7/8 cabling and IR transmission.

Advantages

Extends HDMI signal length up to 150 m using a single network cable or to unlimited distances over standard IP network infrastructure. Supports Full HD resolution (1920 x 1200 / 60 Hz, 4:4:4) and provides KVM control through USB ports on the receiver. Compatible with common Ethernet cable categories (CAT 5e–8) and includes IR pass-through. Robust metal housing and compact form factor enable flexible installation in industrial, commercial and public environments.

Suitable for

• Digital signage and display walls
• Control rooms and monitoring stations
• Conference rooms and meeting facilities
• Industrial and commercial AV installations
• Public sector installations (education, government buildings)

Key specifications

• Product type: AV transmitter & receiver
• Brand / model: DIGITUS, HDMI KVM IP Extender Set (DS-55507)
• Maximum resolution: 1920 x 1200 (Full HD, 60 Hz, 4:4:4)
• Maximum point-to-point cable distance: 150 m (via CAT 5e/6/6A/7/8)
• Network operation: Supports extension over existing IP networks / commercial switches
• HDMI inputs / outputs: 1 in, 1 out
• RJ-45 ports: 1 input, 1 output
• KVM: USB ports on receiver for keyboard and mouse
• IR transmission: Supported
• Housing: Metal, compact design
• MPN / EAN: DS-55507 / 4016032478935

How to use

Connect the transmitter unit to the HDMI source and the receiver unit to the display. Link transmitter and receiver using a suitable CAT 5e–8 network cable for point-to-point extension up to 150 m, or connect both units to the local network or network switches for IP-based, unlimited-distance extension. Plug keyboard and mouse into the receiver’s USB ports to enable remote KVM control. Use IR input/output if remote IR control of the source is required. Power both units as specified by the manufacturer before operation.

Recommendations

For reliable Full HD transmission, use high-quality shielded CAT 6 or better cable for long runs and verify network switch settings when using IP-based extension. Place units in ventilated locations and secure connections to avoid signal loss in industrial or high-traffic environments.
