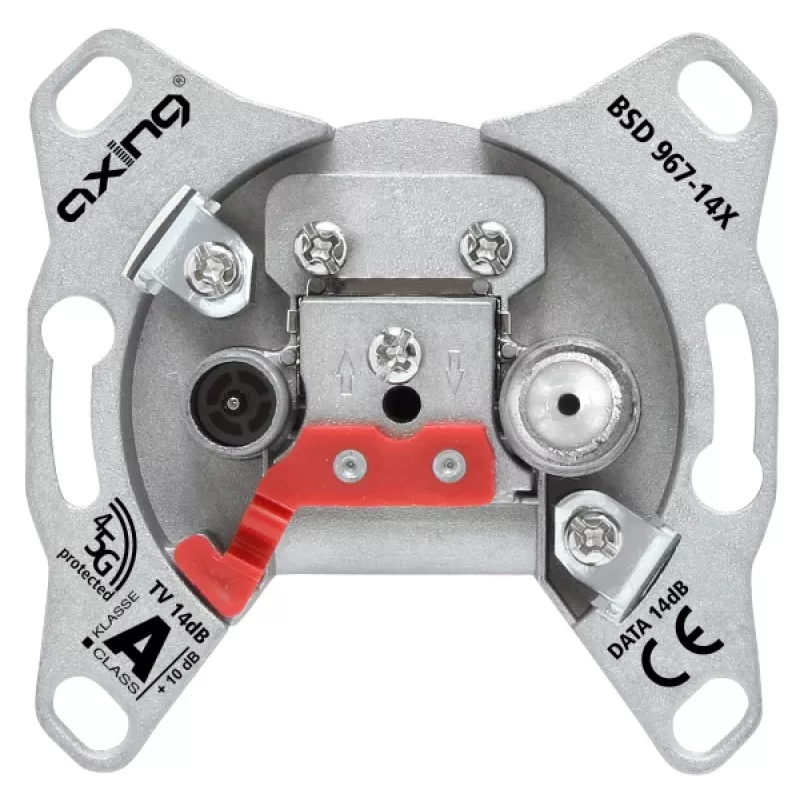

AXING BSD 967-14X multimediálna priechodná zásuvka 14dB 5-1800MHz DOCSIS 3.1/4

The AXING BSD 967-14X is a high-performance multimedia through-socket designed for modern broadband networks. It supports DOCSIS 3.1 and 4.0 standards, ensuring compatibility with the latest cable internet technologies. With a tap loss of 14 dB and a frequency range of 5-1800 MHz, this socket delivers reliable signal distribution for TV, radio, and data services.

Advantages

This through-socket offers excellent signal quality with low through loss (1.5 dB) and high shielding effectiveness (Class A >100 dB). It features three outputs: one IEC male for TV, one IEC female for radio, and one F-connector for data, providing flexibility for various installations. The DC pass on the data port allows powering of external devices.

Suitable for

• Residential and commercial multimedia installations
• DOCSIS 3.1 and 4.0 broadband networks
• Flush-mount (in-wall) installations

Key specifications

• Product Type: Multimedia Through-Socket
• Tap Loss: 14 dB
• Frequency Range Forward: 258-1800 MHz
• Frequency Range Return: 5-204 MHz
• Number of Outputs: 3
• Output 1 (TV): IEC Male (Coax Plug)
• Output 2 (Radio): IEC Female (Coax Socket)
• Output 3 (Data): F-Connector
• Through Loss: 1.5 dB
• Shielding Effectiveness: Class A (>100 dB)
• Impedance: 75 Ohm
• DC Pass: Yes (on Data port)
• Installation Type: Flush-mount
• Return Loss: >18 dB
• Isolation (TV-Radio): >20 dB
• Isolation (TV-Data): >20 dB
• Isolation (Radio-Data): >20 dB

Recommendations

For optimal performance, use with high-quality coaxial cables and ensure proper termination of unused ports. This socket is ideal for new installations or upgrades to DOCSIS 3.1/4.0 networks.
