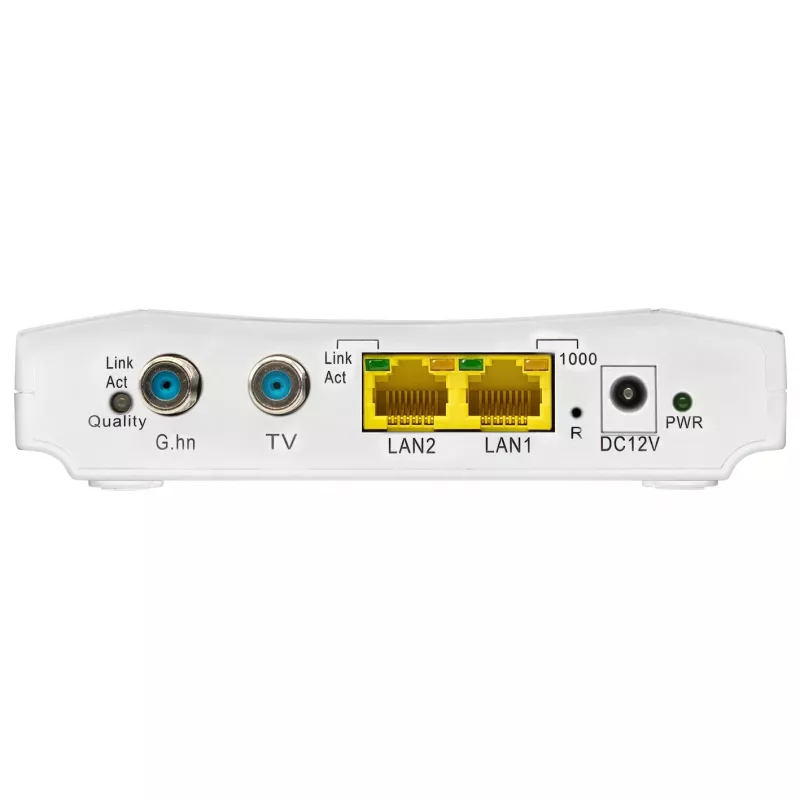

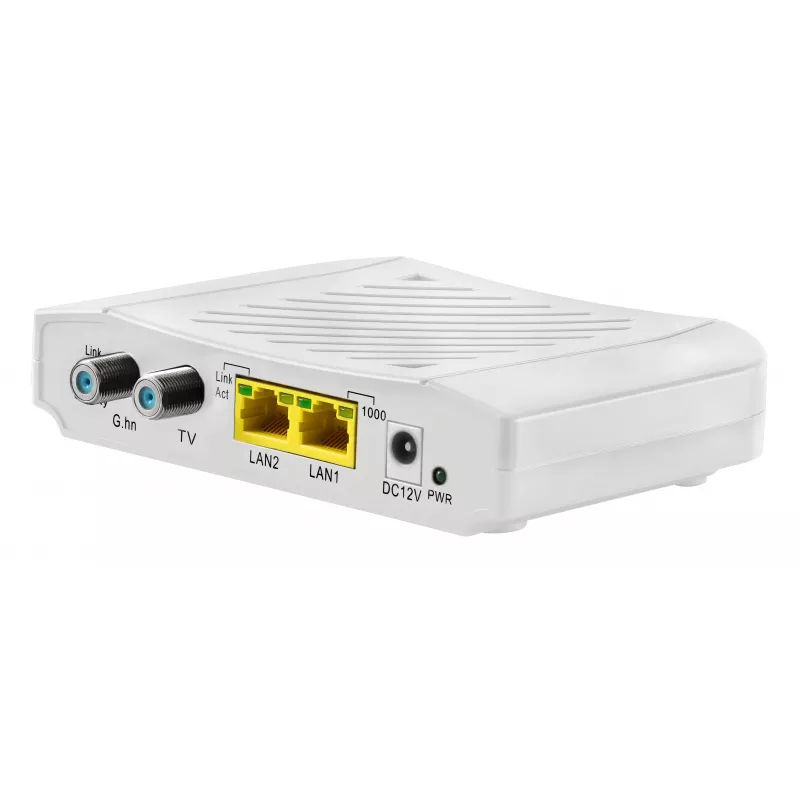

AXING Ethernet over Coax EOC 1-32 Peer-to-Peer 1600 Mbps (EOC00132)

The AXING EOC00132 is a peer-to-peer Ethernet-over-coax adapter that delivers a PHY data rate of 1600 Mbps using G.hn Wave 2 technology. Unlike typical Ethernet extenders that require new cabling, this unit repurposes existing coaxial infrastructure, making it a practical solution for upgrading networks in buildings where running Cat5e or Cat6 is impractical. It supports point-to-point and point-to-multipoint topologies with up to 16 nodes, and includes 128-bit AES encryption for secure data transmission.

Highlights

• G.hn Wave 2 technology with up to 1600 Mbps PHY data rate
• 1x Gigabit Ethernet port (RJ45) and 1x F-type coax connector
• Coax frequency band: 2–200 MHz; reach up to 700 m over coaxial cable
• Supports up to 16 nodes in point-to-multipoint mode
• 128-bit AES encryption for secure links
• Plug-and-play: no software configuration required
• LED indicators for power, coax link/activity, and Ethernet link/activity
• External 12 V DC / 1 A power adapter; power consumption under 5 W

In daily use

Installation is straightforward: connect the EOC00132 to your router or switch via Ethernet, and to the coaxial wall outlet via the F-type connector. The device automatically establishes a link with a second EOC00132 or compatible G.hn coax adapter, creating a transparent bridge for IP traffic. The compact plastic housing and low power draw make it suitable for continuous operation in residential or small office environments. LEDs give immediate feedback on link status, simplifying troubleshooting.

Full specifications

• Technology standard: G.hn Wave 2
• Max data rate (PHY): 1600 Mbps
• Ethernet port: 1x Gigabit Ethernet (RJ45)
• Coaxial port: 1x F-type
• Coaxial frequency band: 2–200 MHz
• Max coaxial distance: 700 m
• Network topology: Point-to-Point / Point-to-Multipoint
• Max devices per network: 16 nodes
• Security: 128-bit AES encryption
• LED indicators: Power, Coax Link/Activity, Ethernet Link/Activity
• Power supply: External DC 12 V / 1 A
• Power consumption: < 5 W
• Operating temperature: 0 °C to 40 °C
• Operating humidity: 10% to 90% (non-condensing)
• Plug & play: Yes
• Housing material: Plastic

Final note

The AXING EOC00132 is a reliable way to extend Ethernet over existing coax lines, offering high throughput and secure connectivity without the need for new wiring.
