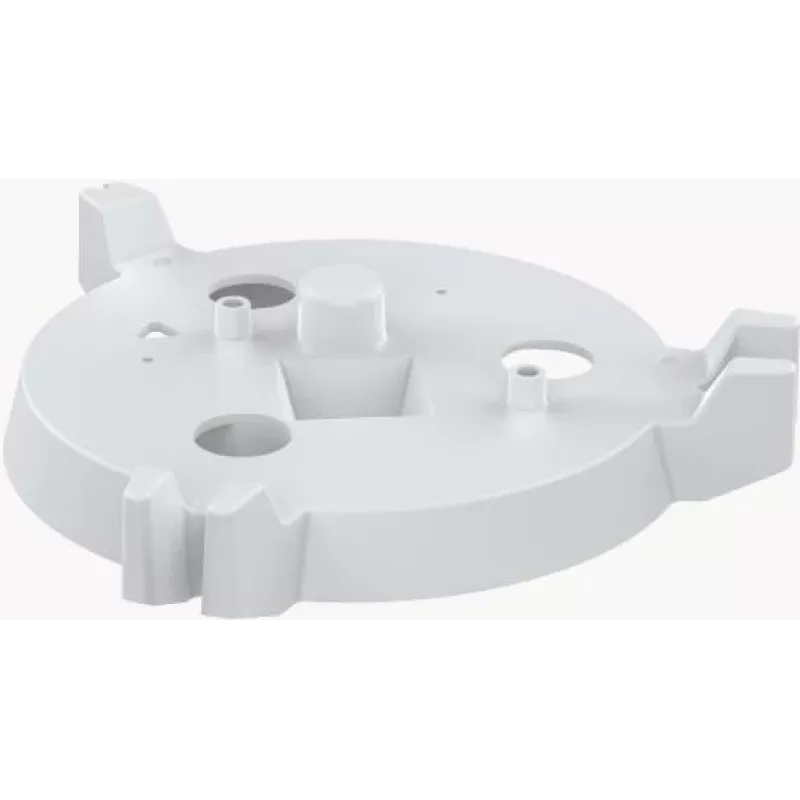

Axis TP6902-E Recessed Mount Adapter pre Q6100-E a P5676-LE kamery, biela, IP66, IK10

The Axis TP6902-E is a robust recessed mount adapter designed for outdoor installation of Axis Q6100-E and P5676-LE network cameras. This mount provides a secure and discreet mounting solution for ceilings or walls, ensuring optimal camera positioning while maintaining a clean aesthetic. Constructed from high-quality aluminum and PC/ABS materials, it offers exceptional durability and corrosion resistance, meeting NEMA 4X standards. With IP66 and IK10 ratings, it withstands harsh weather conditions and vandalism, making it ideal for demanding surveillance environments.

Advantages

This recessed mount adapter simplifies installation with a pre-cut template and includes all necessary components. Its weatherproof design ensures reliable performance in temperatures from -40°C to 50°C and condensing humidity. The mount's low-profile design minimizes visual intrusion while providing a stable platform for the camera.

Suitable for

• Outdoor surveillance installations requiring discreet camera mounting
• Axis Q6100-E and P5676-LE network cameras
• Ceiling or wall mounting in exposed locations
• Applications needing high vandal resistance (IK10) and weather protection (IP66, NEMA 4X)

Key specifications

• Compatibility: Axis Q6100-E, Axis P5676-LE
• Material: Aluminum, PC/ABS
• Color: White
• IP Rating: IP66
• NEMA Rating: NEMA 4X
• IK Rating: IK10
• Operating Temperature: -40°C to 50°C (-40°F to 122°F)
• Humidity: 10 - 100% RH (condensing)
• Outer Diameter: 250 mm (9.8 in)
• Recessed Depth: 100 mm (3.9 in)
• Cut-out Diameter: 200 mm (7.9 in)
• Installation: Ceiling or Wall
• Corrosion Protection: Yes (NEMA 4X compliant)
• Included: Mount, Installation Guide, Drill Template

Recommendations

For optimal performance, ensure the mounting surface can support the camera and mount weight. Use the included drill template for precise cut-out. This mount is specifically designed for Axis Q6100-E and P5676-LE models; verify compatibility before purchase.
