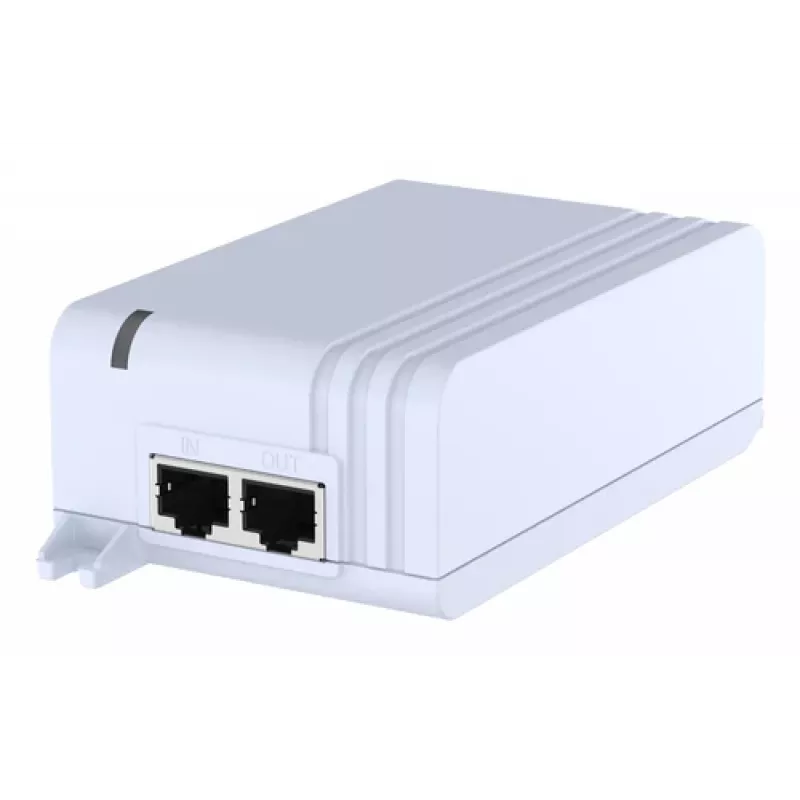

Axis TU8006 Single Port 60W Midspan PoE++ injektor

The Axis TU8006 is a high-performance single-port Power over Ethernet (PoE) midspan injector designed to deliver up to 60W of power to compatible network devices. Compliant with IEEE 802.3bt Type 3 (PoE++) standard, it supports Gigabit Ethernet data rates and is ideal for powering Axis network cameras, access control devices, and other PoE-enabled equipment. The TU8006 simplifies installation by combining power and data over a single Ethernet cable, eliminating the need for separate power outlets near the device.

Advantages

Delivers 60W PoE++ power over all four pairs, supporting high-power devices such as PTZ cameras and heating units. Compact design allows flexible wall or shelf mounting. Plug-and-play installation with no configuration required. Robust protection against overload, short-circuit, and over-voltage ensures reliable operation.

Suitable for

• Axis network cameras requiring high PoE power
• Access control systems and door stations
• Wireless access points and IoT devices
• Any PoE++ (IEEE 802.3bt) compatible equipment

Key specifications

• PoE Standard: IEEE 802.3bt Type 3 (PoE++)
• Max PoE Output Power: 60 W
• Input Voltage: 100-240 V AC, 50/60 Hz
• Output Voltage: 55 V DC
• Data Transfer Rate: Gigabit Ethernet (10/100/1000 Mbps)
• Ethernet Ports: 1x Data In (RJ45), 1x PoE Out (RJ45)
• LED Indicators: Power, PoE Status
• Operating Temperature: -10 °C to 50 °C (14 °F to 122 °F)
• Mounting: Wall or shelf mount
• Housing Material: PC/ABS
• Certifications: CE, FCC, RCM, VCCI, KC, UL, cUL, EN 60950-1, EN 62368-1

Recommendations

For optimal performance, use with Axis network devices that support PoE++ and ensure the Ethernet cable does not exceed 100 meters. The TU8006 is a reliable solution for extending power and data to remote devices in security and surveillance installations.
