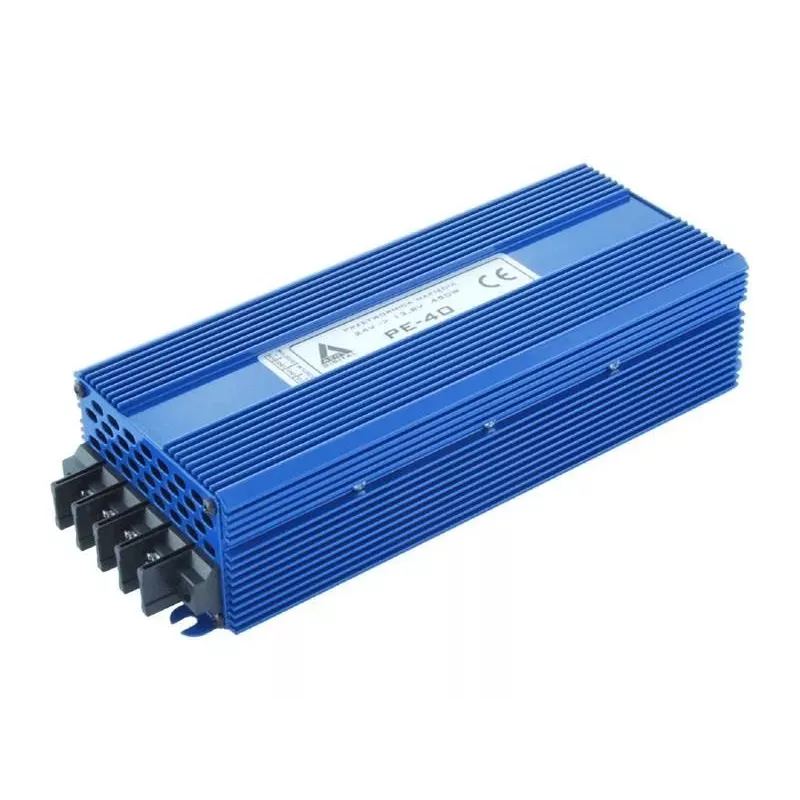

AZO Digital 24 VDC / 13.8 VDC menič napätia PE-40 450W IP21

The AZO Digital 24 VDC / 13.8 VDC Power Converter PE-40 450W IP21 is a high-efficiency step-down (buck) converter designed to convert a nominal 24 VDC input to a stable 13.8 VDC output, delivering up to 450W of continuous power. Ideal for industrial, telecommunications, and automotive applications, this converter features fan-assisted cooling, comprehensive protection, and a rugged IP21-rated enclosure.

Advantages

With over 90% efficiency, the PE-40 minimizes energy loss and heat generation. Its wide input voltage range (20-30 VDC) ensures reliable operation even with fluctuating power sources. The built-in protections (overload, short circuit, over-temperature, input reverse polarity) safeguard both the converter and connected equipment. The fan-assisted cooling allows continuous operation at full load in ambient temperatures up to 50°C.

Suitable for

• Industrial control systems and automation
• Telecommunications equipment
• Mobile and off-grid power systems
• Amateur radio and CB radio stations
• LED lighting and CCTV installations

Key specifications

• Input Voltage: 24 VDC nominal (20-30 VDC range)
• Output Voltage: 13.8 VDC
• Maximum Output Power: 450 W
• Maximum Output Current: 32.6 A continuous
• Efficiency: >90%
• Protection: Overload, Short Circuit, Over-temperature, Input Reverse Polarity
• Cooling: Fan-assisted
• IP Rating: IP21
• Operating Temperature: -20°C to +50°C
• Input/Output Connection: Screw terminals
• Ripple & Noise: <100 mVp-p
• Load Regulation: <1%
• Line Regulation: <0.5%
• No-Load Current: <50 mA
• Non-isolated topology

Recommendations

For optimal performance, ensure adequate ventilation around the converter. The fan should not be obstructed. Use appropriately rated wiring and fusing. This converter is not isolated; ensure the input and output share a common ground if required by your application.
