B-Tech SYSTEM 2 – vysokozáťažový dvojitý stropný/podlahový držiak pre stĺpy Ø50mm

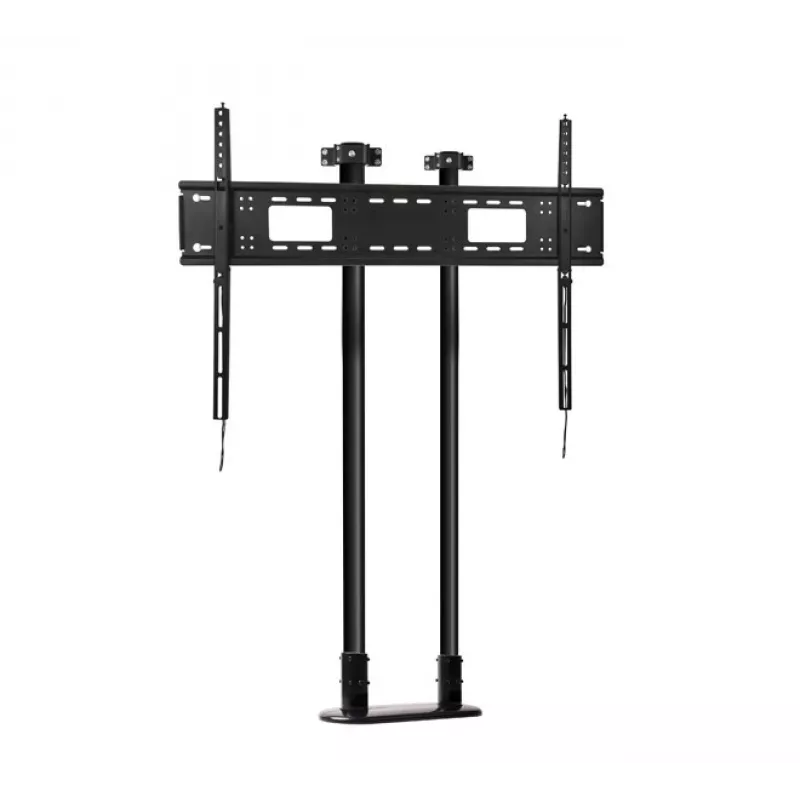

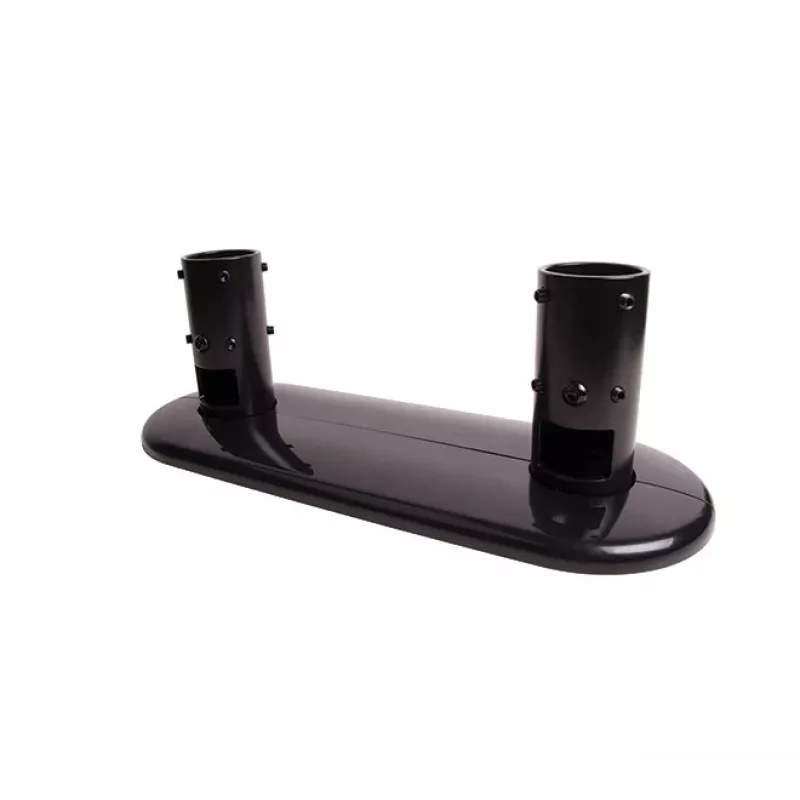

The B-Tech SYSTEM 2 BT7807 is a heavy duty twin pole ceiling or floor mount designed for Ø50mm poles. Manufactured from heavy duty steel and finished in black, this single-pack base provides a secure interface between structural surfaces and twin poles used in demanding AV and display installations. The mount is engineered to support substantial loads and to accommodate multi-screen or complex AV configurations where strength and reliable alignment are required.

Advantages

This twin pole mount offers robust load capacity and stable support for heavy displays and equipment, with multiple grub screws to maintain perpendicular alignment under load. The design speeds up twin pole installations by eliminating the need to measure pole-centre spacing, includes integrated cable management options and an internal end stop to aid safe installation when floor mounting. A supplied safety bolt increases installation security.

Suitable for

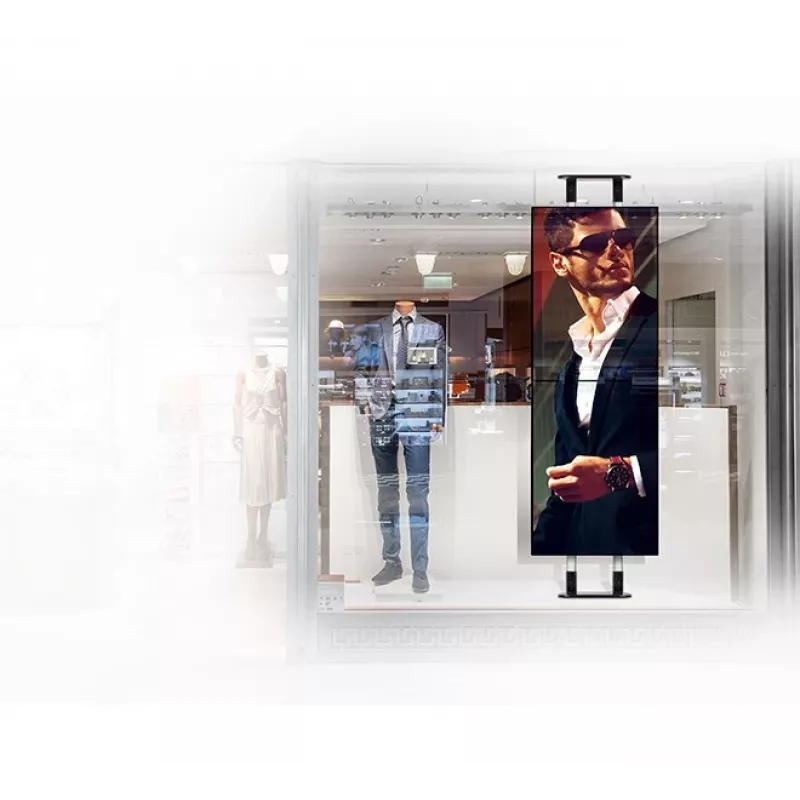

• Heavy-duty flat screen installations in commercial or public spaces
• Multi-screen video walls and stacked display configurations
• AV racks and equipment requiring a twin pole support framework
• Installations where secure ceiling or floor anchoring is needed

Key specifications

• Material: heavy duty steel
• Finish: black
• Compatible pole diameter: Ø50 mm
• Maximum weight capacity: 200 kg
• Width: 426 mm
• Depth: 150 mm
• Quantity per pack: 1 piece

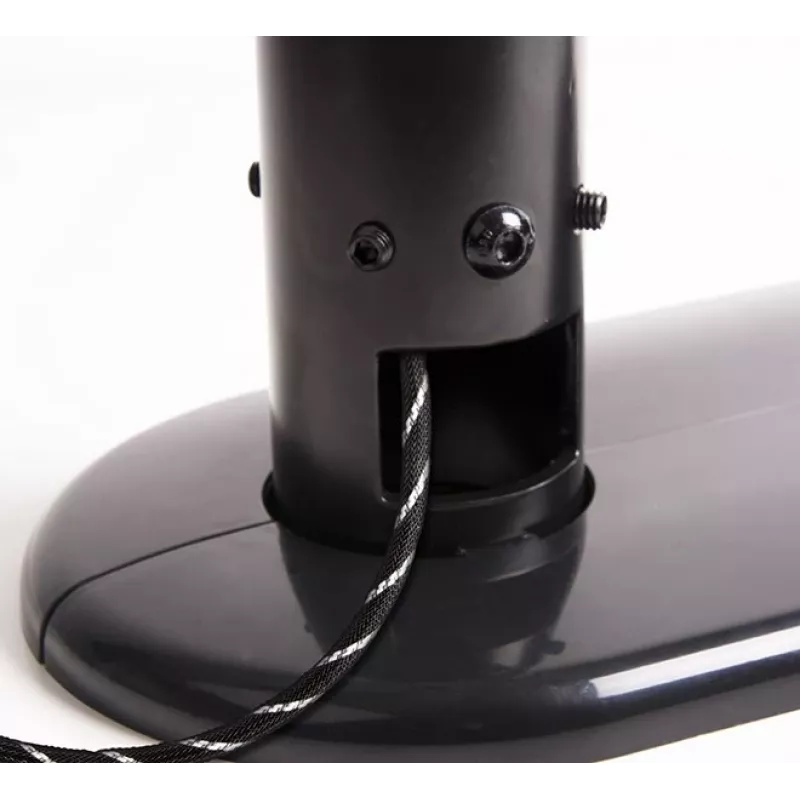

• Cable management: top or side entry
• Includes multiple grub screws, internal end stop and safety bolt

How to use

Position the base on a suitable structural surface (ceiling or floor) and mark fixing points in accordance with local building and safety regulations. Fit the Ø50mm poles into the mount, engage the internal end stop if floor mounting, and secure using the provided grub screws and safety bolt. Route cables through the top or side cable management entry before final tightening. Ensure all fastenings are torqued to recommended values and verify perpendicular alignment of poles before loading.

Recommendations

Verify that the supporting structure and fixings are rated to carry the combined weight of the mount, poles and attached equipment. For multi-screen installations, plan cable routing and load distribution in advance. Periodically inspect grub screws, safety bolt and fixings for security, especially after initial installation and under heavy loads.
