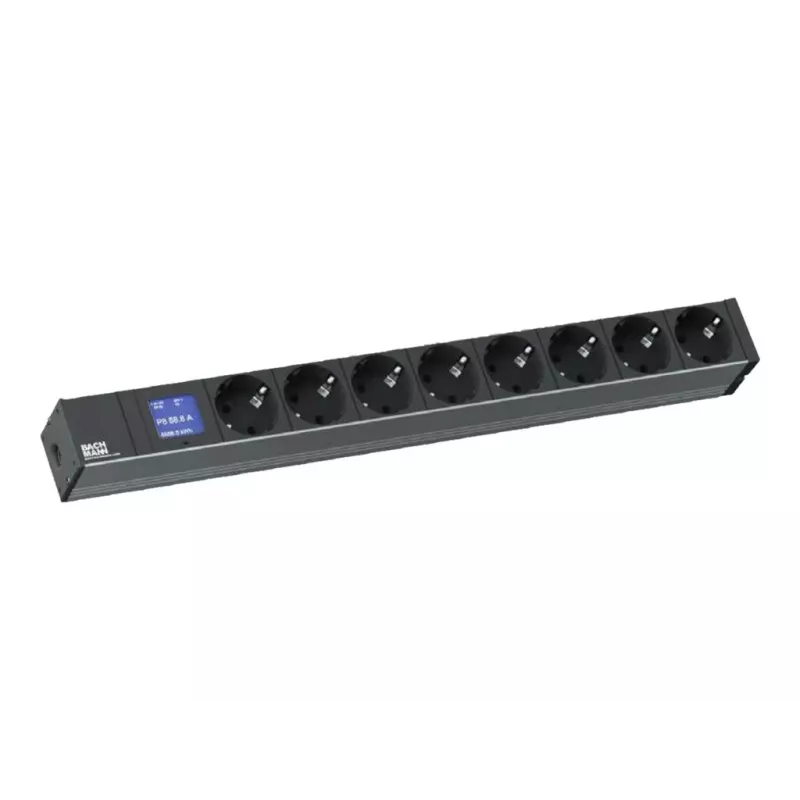

Bachmann BN0500 19" 1U 8x Schuko PDU 2m Schuko konektor 230V 16A

The Bachmann BN0500 800.2067 is a professional 19-inch 1U rackmount Power Distribution Unit (PDU) designed for efficient power distribution in server racks and network cabinets. With 8 Schuko outlets and a 2-meter Schuko input cable, this basic PDU provides reliable 230V/16A power to your equipment. Its robust aluminum profile housing ensures durability and effective heat dissipation.

Advantages

Space-saving 1U design maximizes rack space utilization. Easy installation with horizontal mounting orientation. High-quality aluminum construction ensures long service life. Compliant with CE and RoHS standards for safety and environmental responsibility.

Suitable for

• Server rooms and data centers requiring basic power distribution
• Network cabinets with 19-inch racks
• IT equipment such as switches, routers, and servers
• Applications needing Schuko outlets (CEE 7/3)

Key specifications

• Product Type: Basic PDU (Power Distribution Unit)
• Form Factor: 19-inch Rackmount, 1U
• Number of Outlets: 8 x Schuko (CEE 7/3)
• Input Plug: Schuko (CEE 7/7) with 2m cable
• Nominal Voltage: 230V AC
• Maximum Current: 16A
• Max Power Load: 3680 W
• Frequency: 50/60 Hz
• Housing Material: Aluminum profile
• Color: Silver profile, black outlets
• Cable Cross-Section: 3G1.5 mm²
• Certifications: CE, RoHS

Recommendations

For optimal performance, ensure the total connected load does not exceed 3680 W. This PDU is ideal for basic power distribution without surge protection or monitoring features. Pair with a UPS for enhanced power reliability.
