Bachmann POWER FRAME 3-násobný modulový montážny rám pre konektory

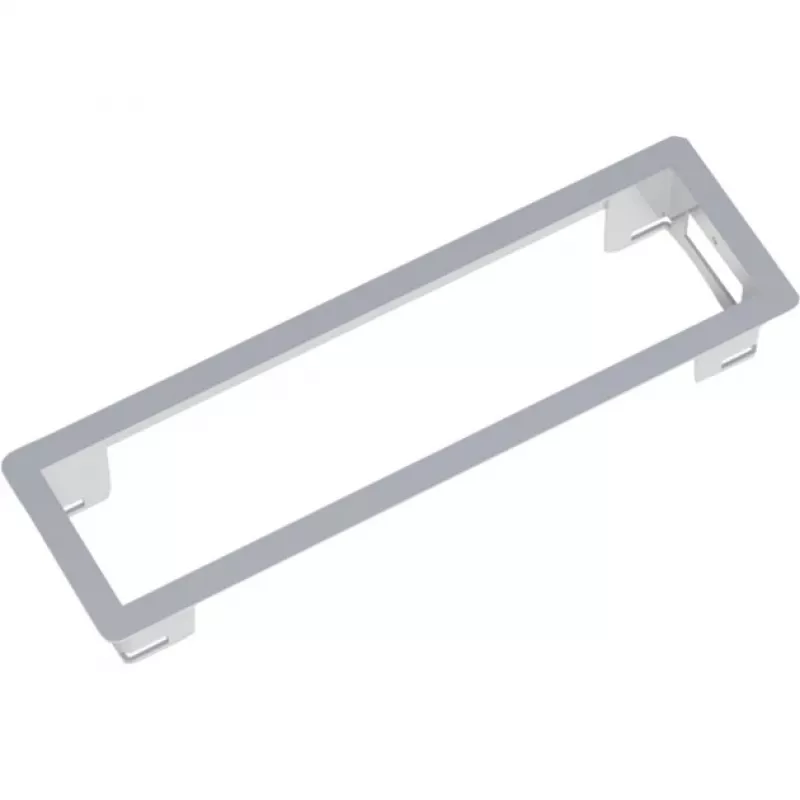

The Bachmann POWER FRAME 3-way Module Mounting Frame is a high-quality, empty frame designed to accommodate up to three Bachmann custom modules (e.g., power, data, multimedia). It is part of the POWER FRAME series, offering a discreet and integrated solution for flush-mounted installation in desktops, conference tables, and work surfaces. The frame is made of anodized aluminum in a silver finish, ensuring durability and a professional appearance.

Advantages

This mounting frame provides a modular and flexible system for integrating various connection modules into furniture. Its anodized aluminum construction offers strength and a sleek look, while the flush-mount design ensures a clean, unobtrusive installation. The frame is screw-fixed from below for secure attachment.

Suitable for

• Office desks and workstations
• Conference tables
• Home office furniture
• Kitchen work surfaces
• Any furniture requiring integrated power and data connections

Key specifications

• Product Type: Module Mounting Frame
• Series: POWER FRAME
• Number of Module Slots: 3
• Module Compatibility: Bachmann Custom Modules
• Mounting Type: Flush-mounted / Built-in
• Material: Anodized Aluminum
• Color: Silver
• Cutout Dimensions (L x W): 208 x 60 mm
• Required Installation Depth: 50 mm
• Orientation: Horizontal
• Modular System: Yes
• Included Modules: None (Empty Frame)
• Installation Method: Screw-fixed from below

Recommendations

For a complete solution, pair this frame with Bachmann POWER FRAME modules such as power outlets, USB chargers, or data ports. Ensure the cutout dimensions match your furniture before installation.
