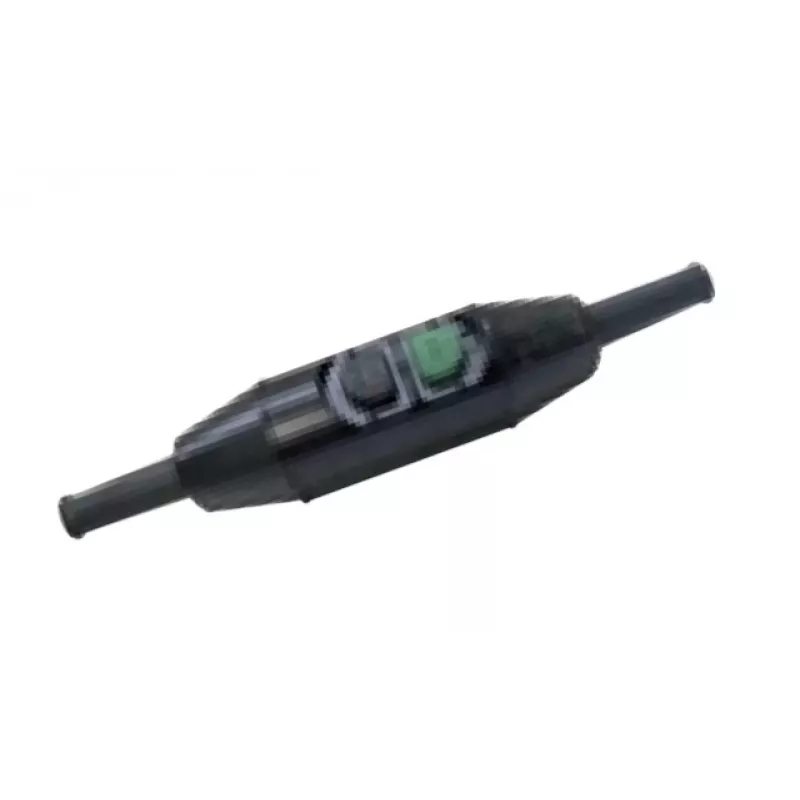

Bachmann PRCD-K prenosný prúdový chránič (PRCD-S) 230V 16A 30mA IP55 Schuko

The Bachmann PRCD-K is a portable residual current device (PRCD-S) designed for maximum safety in outdoor, construction, and wet environments. It provides reliable protection against electric shock by continuously monitoring the residual current and disconnecting the power supply if a fault is detected. With a robust IP55 rating, it withstands dust and water jets, making it ideal for demanding job sites.

Advantages

This PRCD-K offers comprehensive protection with features such as protective conductor monitoring, external voltage monitoring, undervoltage release, and overcurrent protection. The integrated test and reset functions allow for easy functionality checks. Its compact design and short 0.3 m cable make it convenient to use with power tools and extension cords.

Suitable for

• Construction sites and outdoor work areas
• Wet environments like bathrooms, kitchens, or gardens
• Use with power tools, pumps, and other electrical equipment requiring enhanced safety

Key specifications

• Device Type: Portable Residual Current Device (PRCD-S)
• Rated Voltage: 230 V AC
• Rated Current: 16 A
• Rated Residual Current: 30 mA
• Protection Class: IP55
• Plug Type: Schuko (CEE 7/7)
• Socket Type: Schuko (CEE 7/3)
• Cable Type: H07RN-F 3G1.5mm²
• Cable Length: 0.3 m
• Frequency: 50 Hz
• Standards: DIN VDE 0661, IEC 61540

Recommendations

Always test the PRCD-K before each use by pressing the test button. If the device does not trip, discontinue use and consult a qualified electrician. This device is not a substitute for fixed RCD protection but provides an additional layer of safety.
