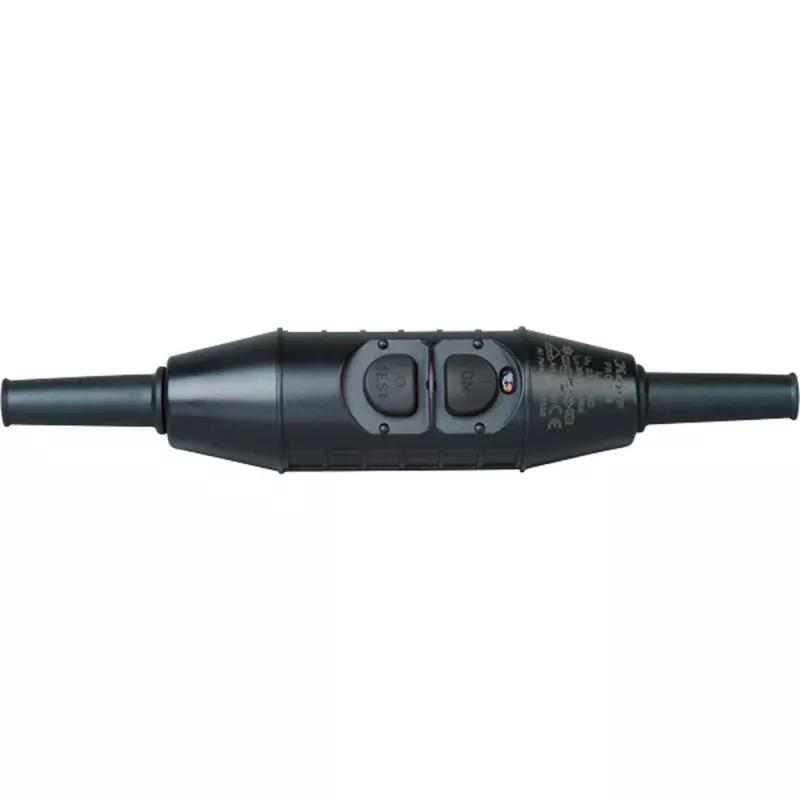

Bachmann PRCD-S prenosný prúdový chránič bezpečnostný spínač 230V 16A 30mA IP44 Schuko 1,5m

The Bachmann PRCD-S is a portable residual current device (PRCD) designed for safety on construction sites, outdoor areas, and wet environments. It provides reliable protection against electric shock by monitoring the residual current and disconnecting the power supply within 30 ms if a fault is detected. With a robust IP44 housing and Schuko connectors, this device is built to withstand harsh conditions.

Advantages

Enhanced safety with protective conductor and external conductor monitoring. Quick tripping time of less than 30 ms ensures rapid disconnection. Rugged design with IP44 protection against splashing water and dust. Suitable for demanding applications where electrical safety is critical.

Suitable for

• Construction sites and building projects
• Outdoor events and temporary power installations
• Workshops and industrial environments
• Wet or damp areas requiring extra safety

Key specifications

• Rated voltage: 230 V AC
• Rated frequency: 50 Hz
• Rated residual current: 30 mA
• Max rated load current: 16 A
• Tripping time: < 30 ms
• Protection class: IP44
• Input plug: Schuko (CEE 7/7)
• Input cable: H07RN-F 3G1.5, 1.5 m
• Output socket: Schuko coupling (CEE 7/3)
• Output cable: H07RN-F 3G1.5, 0.3 m
• Operating temperature: -25°C to +40°C
• Housing material: Robust plastic
• Status indication: LEDs for operational status
• Standards: DIN VDE 0661, IEC 61540

Recommendations

For maximum safety, always use a PRCD-S device when working with power tools in outdoor or wet conditions. The Bachmann PRCD-S is a reliable choice for professionals who demand high safety standards.
