Backplate EK Water Blocks

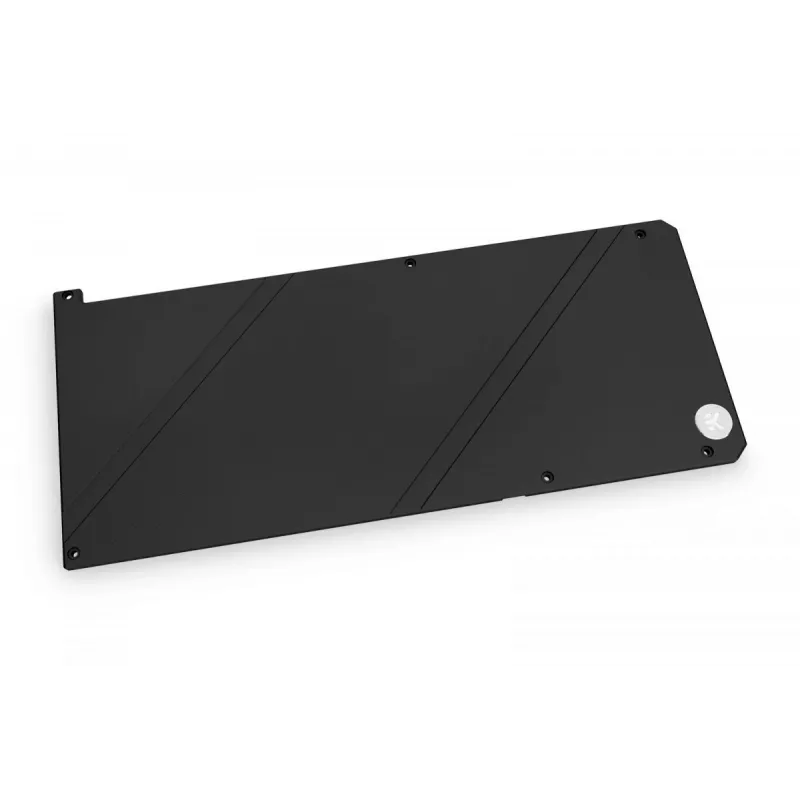

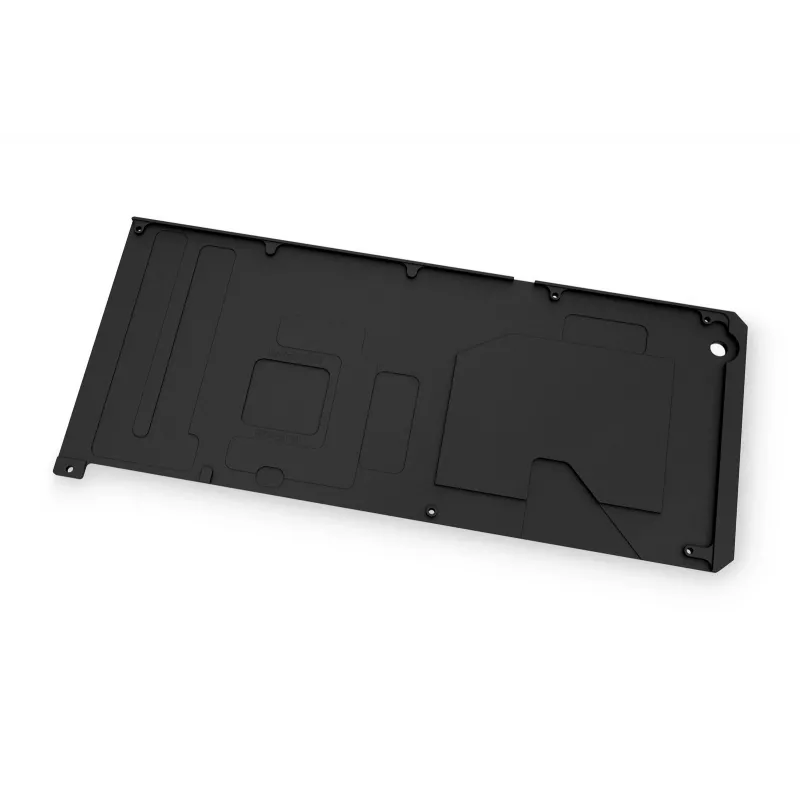

EK-Quantum Vector FTW3 RTX 3070 Backplate - Black is a CNC-machined retention backplate made from black anodized aluminum, designed to fit EK-Quantum Vector FTW3 RTX 3070 water blocks. It spans the full length of the graphics card PCB, improving the card’s appearance while providing passive cooling to the backside of the voltage regulation module (VRM) and the GPU core.

Advantages

The aluminum construction with black anodized finish offers durability and a uniform look that complements existing EK components. The backplate covers the entire PCB length for consistent protection and contributes passive heat dissipation for VRM and GPU areas. It is delivered with a mounting mechanism and thermal pads to simplify installation.

Suitable for

• EK-Quantum Vector FTW3 RTX 3070 water-cooled graphics cards
• PC builds where improved GPU aesthetics are desired
• Systems that benefit from additional passive cooling on the GPU backside and VRM

Key specifications

• Type: Backplate
• Compatibility: EK-Quantum Vector FTW3 RTX 3070 water blocks
• Material: CNC-machined aluminum, black anodized
• Colour: Black
• Includes: Backplate, mounting mechanism (backplate screws in separate compartment), thermal pads
• Brand/MPN/EAN: ek water blocks / 3831109836439

How to use

Position the backplate along the rear side of the graphics card PCB aligning it with the mounting points of the EK-Quantum Vector FTW3 RTX 3070 water block. Use the supplied mounting mechanism to secure the backplate; the screws are provided in a separate compartment. Apply the included thermal pads where indicated to ensure contact with VRM and GPU backside surfaces before final tightening.

Recommendations

Install or remove the backplate with the PC powered off and disconnected from mains. Confirm compatibility with the EK-Quantum Vector FTW3 RTX 3070 water block and follow EK Water Blocks’ assembly instructions for torque and pad placement to ensure proper contact and avoid PCB damage.
