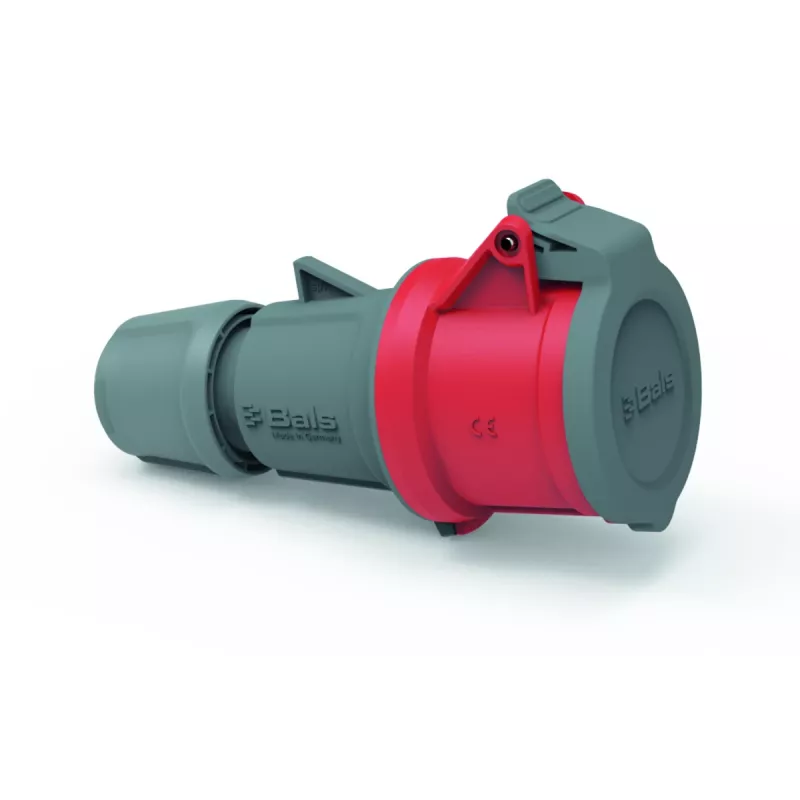

Bals INNOLINQ QC 16A 5-pólová 400V 6h IP54 červená CEE konektor samica

Forget screw terminals and torque checks — the Bals INNOLINQ QC coupling snaps together in seconds thanks to its patented quick-connect system. This 16 A, 5-pole CEE coupling is built for 380–415 V three-phase systems with a 6h earth position, delivering a secure, splash-proof link for portable distribution boards, machinery, and event power setups. The tool-free push-in termination accepts flexible or solid conductors up to 6 mm², slashing installation time and eliminating wiring errors on demanding job sites.

Highlights

• Quick Connect (QC) technology: no screws, no ferrules, just push-in termination for flexible or solid conductors up to 6 mm².
• Rated for 16 A, 5 poles (3P+N+PE), 50/60 Hz, and 380–415 V AC — fully compliant with IEC 60309-1/-2.
• IP54 protection against dust and water spray, with a robust red PA6 housing that withstands harsh environments.
• Accepts cable diameters from 8 to 18 mm, covering a wide range of industrial flex and fixed wiring.
• Operating temperature range from -25°C to +40°C, suitable for cold storage, outdoor events, and factory floors.

In daily use

On a construction site or in a workshop, the INNOLINQ QC coupling proves its worth every time a cable needs to be changed or extended. The screwless terminals grip conductors firmly without damage, and the quick-connect mechanism allows even untrained staff to make safe connections in under a minute. The red colour and 6h keying prevent mismating with other voltage systems, while the IP54 rating keeps out dust and water spray, ensuring reliable power in challenging conditions.

Full specifications

• Connector Type: CEE Coupling
• Connection System: INNOLINQ QC (Quick Connect)
• Rated Current: 16 A
• Number of Poles: 5-pole (3P+N+PE)
• Rated Voltage: 380-415 V AC
• Frequency: 50/60 Hz
• Earth Contact Position: 6h (Clock Position)
• Ingress Protection (IP) Rating: IP54
• Color: Red
• Terminal Type: Screwless Terminals
• Housing Material: Polyamide (PA6)
• Contact Material: Brass
• Cable Cross-Section (Flexible): 1.5 - 4 mm²
• Cable Cross-Section (Solid): 1.5 - 6 mm²
• Cable Outer Diameter Range: 8 - 18 mm
• Operating Temperature: -25°C to +40°C
• Standards Compliance: IEC 60309-1, IEC 60309-2
• Application: Industrial Power Distribution
• Mounting: Portable / In-line
• Special Features: Quick Connect Technology

Final note

The Bals INNOLINQ QC coupling is the smart choice for professionals who value speed, safety, and reliability in industrial power connections.
