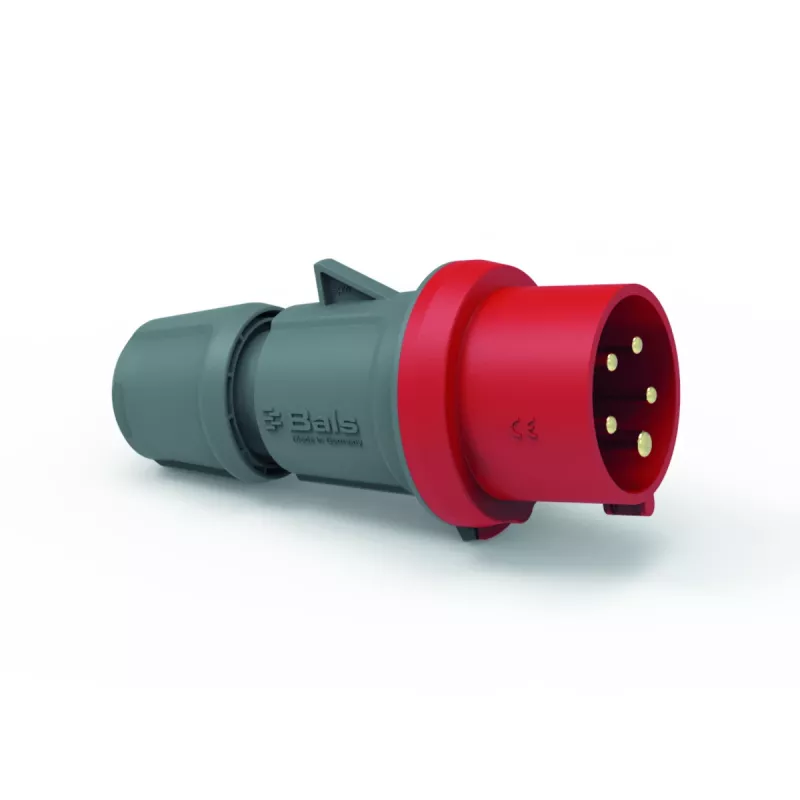

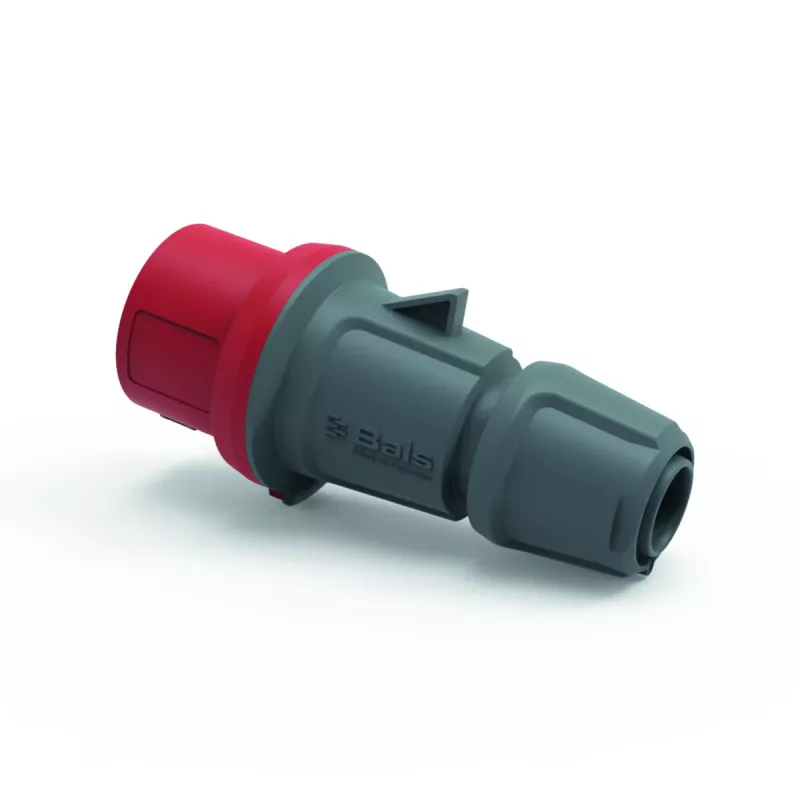

Bals INNOLINQ QC CEE konektor samec 16A 5-pólový 400V 6h IP54 červený bezskrutkový

Where standard CEE plugs rely on screw terminals that loosen over time, the Bals INNOLINQ QC 200 uses a screwless quick-connect system that keeps every conductor under constant spring pressure. That means no retorquing after installation, no hot joints from vibration, and a genuinely tool-light assembly on site. The 16 A, 5-pole (3P+N+PE) configuration with a 6 h earth contact position is built for 400 V three-phase distribution in tough environments, and the red polyamide housing signals its voltage class at a glance.

Highlights

• Screwless quick-connect terminals accept solid or stranded conductors from 1.5 mm² to 4 mm² without ferrules in most cases
• IP54 protection keeps out dust and splashing water, making it suitable for outdoor and washdown areas
• Self-closing cap and robust PA6 housing resist impact, oils, and common industrial chemicals
• IEC 60309 / EN 60309 compliant with 850 °C glow wire rating for added fire safety
• Integrated cable gland with strain relief handles cable diameters typical for 16 A three-phase circuits

In daily use

On a construction site, in a workshop, or at an outdoor event, this plug connects quickly and stays secure. The 6 h earth position prevents mismating with different voltage systems, while the red colour coding is instantly recognisable. Because the contacts are brass and the terminals are spring-loaded, you get low contact resistance and long-term reliability even with frequent plugging cycles. The operating temperature range from -25 °C to +40 °C covers most industrial and outdoor applications.

Full specifications

• Product type: CEE plug
• Series: INNOLINQ QC
• Rated current: 16 A
• Rated voltage: 400 V
• Number of poles: 5 (3P+N+PE)
• Earth contact position: 6 h
• Ingress protection: IP54
• Connection technology: Screwless quick connect
• Housing material: Polyamide (PA6)
• Contact material: Brass
• Colour: Red
• Frequency: 50/60 Hz
• Cable entry: Gland with strain relief
• Min. cable cross-section: 1.5 mm²
• Max. cable cross-section: 4 mm²
• Operating temperature range: -25 °C to +40 °C
• Standards: IEC 60309, EN 60309
• Glow wire test: 850 °C

Final note

With its screwless terminals and rugged construction, the Bals INNOLINQ QC 200 delivers a reliable, maintenance-free connection for demanding three-phase applications.
