Barkan Mounting Systems E400+ držiak na TV 2,29 m čierny 60 kg

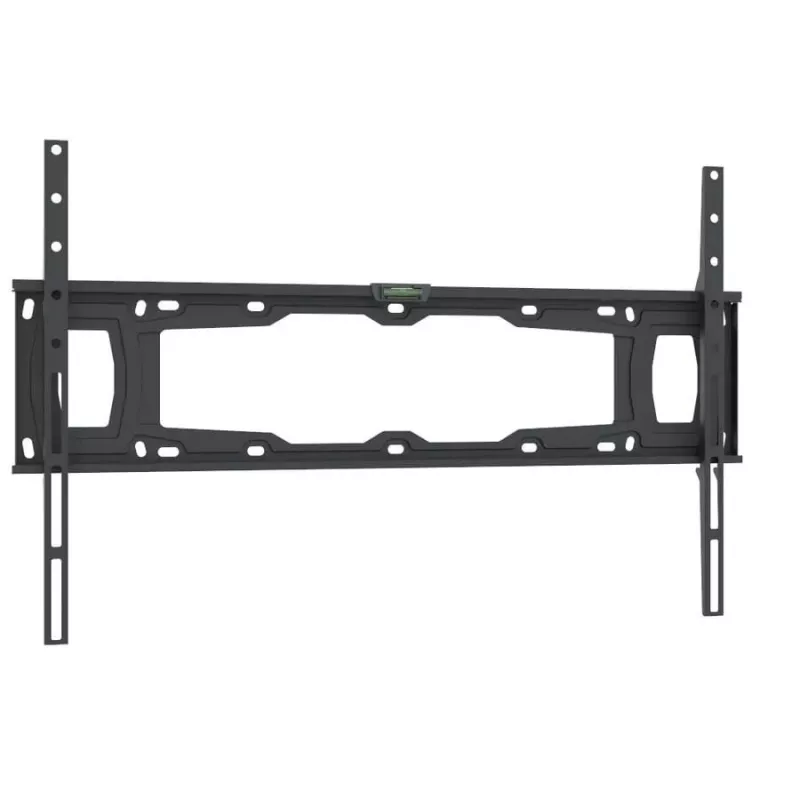

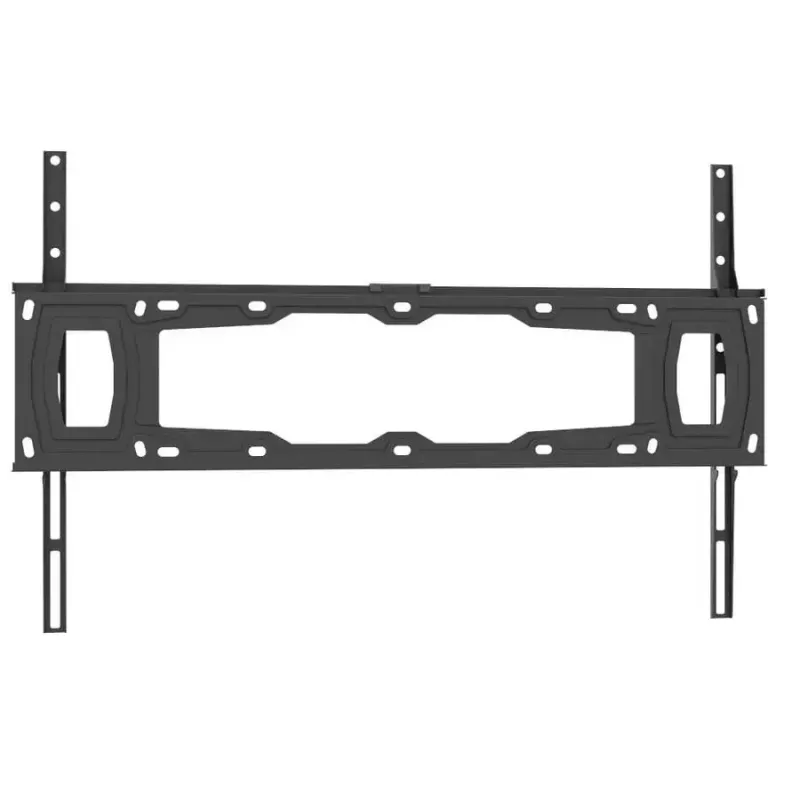

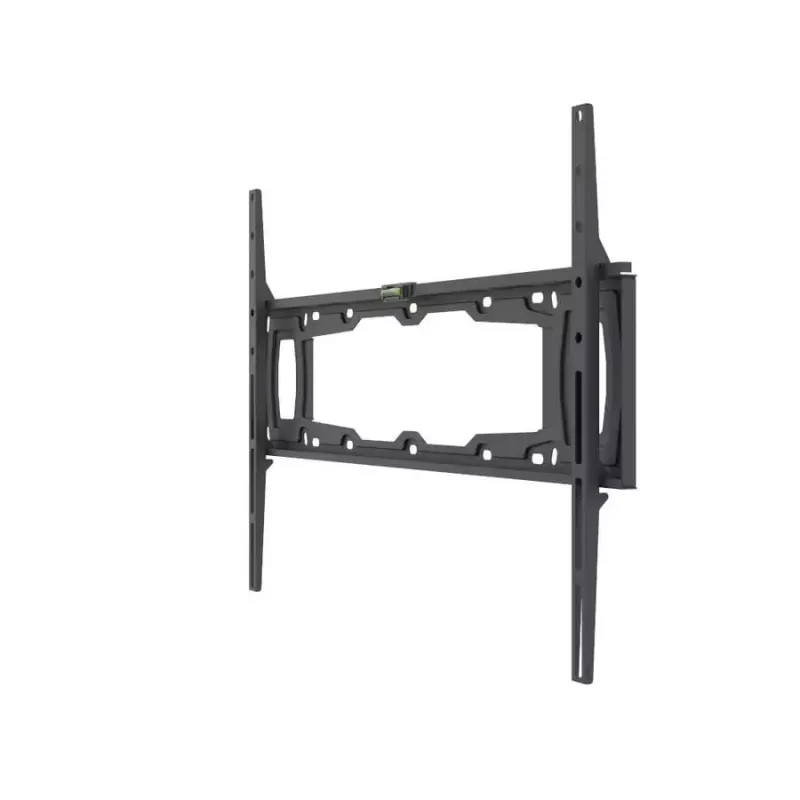

The Barkan E400+ TV mount is a fixed wall mount designed for flat-panel TVs from 32" up to 90" with a maximum load capacity of 60 kg. It supports VESA patterns from 75 x 75 mm up to 600 x 400 mm and can also accommodate non‑VESA screens with compatible attachment points. The mount sits 1.1" (2.8 cm) from the wall and comes in a black finish.

Advantages

The mount includes a patented auto‑locking mechanism that prevents the screen from disengaging, and its design has no wires or moving parts that might fail or break. Each side provides two hanging points for stable attachment, and the low-profile distance from the wall helps save space while providing a secure installation.

Suitable for

• Wall mounting of flat-panel TVs from 32" to 90"
• TVs with VESA patterns 75x75 to 600x400 mm
• Non‑VESA screens with compatible mounting holes up to 600x400 mm

Key specifications

• Maximum weight capacity: 60 kg
• Supported VESA: 75x75, 100x100, 100x200, 200x100, 200x200, 300x300, 300x400, 400x200, 400x300, 400x400, 600x400 mm
• Distance from wall: 1.1" / 2.8 cm
• Colour: Black
• Number of displays supported: 1

How to use

Attach the mount to a suitable load‑bearing wall using appropriate anchors and screws (not included) following the assembly instructions. Secure the TV to the mounting brackets using the correct screen‑connection screws listed in the manual; some Samsung models require M8 x 45 mm screws (not included). Hang the TV on the wall plate and ensure the patented auto‑locking mechanism engages to lock the screen in place.

Recommendations

Before installation, verify your TV's VESA pattern and the required screen‑connection screw size. Use a stud finder or professional installer for solid attachment to load‑bearing structures. If different screw sizes are needed for your TV model, obtain the correct screws before mounting.
