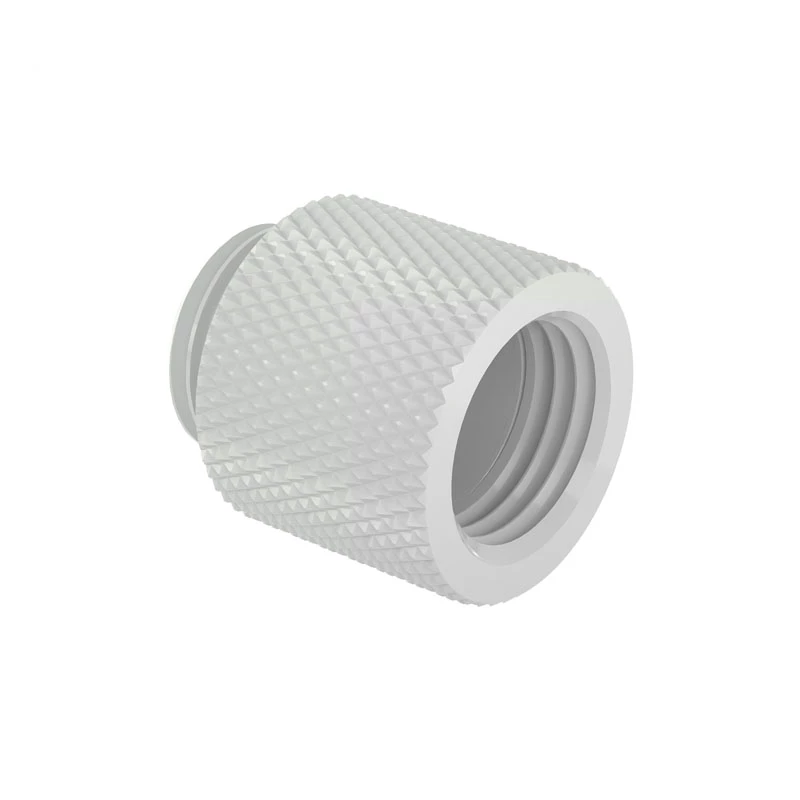

Barrow G1/4" rovný predlžovací diel samec/samica 15, biela (TNYZ-G15 w)

Barrow G1/4" straight extension fitting MF 15, white (TNYZ-G15 w) is a compact threaded adapter intended for plumbing and liquid cooling systems that use G1/4" connections. As a straight male-female extension it adds 15 mm of length to an existing G1/4" thread, enabling cleaner routing and easier panel passthroughs without altering the original fittings. The white finish provides a neutral aesthetic that integrates with a wide range of builds and installations.

Advantages

This straight extension fitting provides a precise 15 mm length increase while maintaining the same G1/4" thread standard at both ends, ensuring compatibility with commonly used components. The compact, straight design minimizes flow disturbance and simplifies alignment in tight spaces. Its finished surface reduces the risk of abrasion and helps create a neat appearance in visible installations. The fitting is suitable for extending existing connections where replacing or rethreading parts is impractical.

Suitable for

• Extending G1/4" threaded connections in PC liquid cooling loops
• Panel or chassis passthroughs where extra thread length is required
• Tight routing scenarios where a short, straight extension improves alignment
• Repairing or lengthening existing tubing connections without replacing original fittings

Key specifications

• Thread type: G1/4" male to female
• Added length: 15 mm
• Orientation: straight (inline)
• Color / finish: white
• Primary application: liquid cooling and plumbing connections

How to use

Turn off and depressurize the system or drain the loop before installation. Screw the male end of the extension into the existing G1/4" female port until hand-tight, then attach the mating G1/4" female component onto the exposed male thread and tighten to the recommended torque for fittings in your system. Avoid over-tightening to prevent thread damage or deformation. After installation, inspect for proper seating and perform a leak test before resuming normal operation.

Recommendations

Use compatible G1/4" fittings and appropriate sealing methods (e.g., PTFE tape if required by your setup) and perform a controlled pressure or leak test following installation. In visible locations, the white finish can be matched with other components for a consistent look; in confined spaces, ensure sufficient clearance for tool access when tightening.
