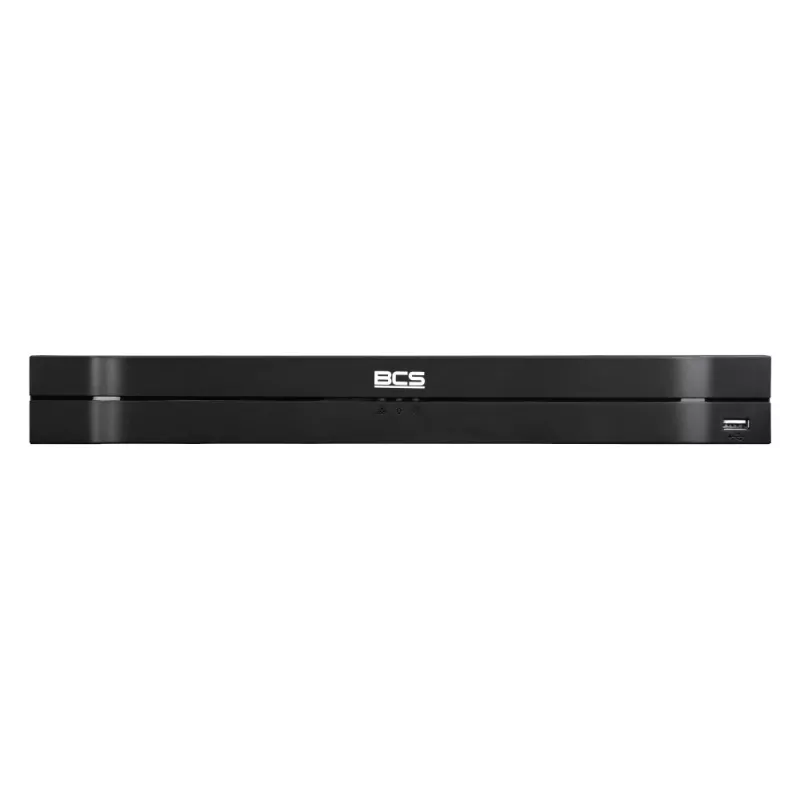

BCS 32-kanálový analógový HD DVR rekordér BCS-L-XVR3202-AI s AI funkciami, 2 SATA pozície, 1U

The BCS-L-XVR3202-AI is a high-performance 32-channel Analog HD DVR recorder designed for professional surveillance systems. It supports up to 32 analog channels (HDCVI/AHD/TVI/CVBS) and up to 32 additional IP channels, offering a total of 64 channels in IP mode. With advanced AI features like SMD Plus, Perimeter Protection, and Face Detection, this recorder provides intelligent security solutions. The unit features 2 SATA bays supporting up to 10TB each, dual-stream recording, and multiple video outputs including HDMI and VGA.

Advantages

This recorder offers exceptional flexibility with hybrid analog and IP support, AI-powered analytics for proactive security, and high-capacity storage. Its 1U form factor is ideal for rack-mount installations, and the embedded Linux OS ensures stable operation.

Suitable for

• Medium to large retail stores
• Warehouses and logistics centers
• Office buildings and corporate campuses
• Educational institutions
• Government facilities

Key specifications

• 32 analog channels (BNC, auto-detect HDCVI/AHD/TVI/CVBS)
• Up to 32 additional IP channels (max 64 total)
• AI Coding / H.265+ / H.265 / H.264+ / H.264 compression
• Max recording resolution: 5M-N at 10fps, 4M-N/1080P at 15fps
• Video outputs: 1x HDMI, 1x VGA (1920x1080), 1x BNC
• Audio: 1x RCA in/out, coaxial audio via HDCVI
• Alarm: 16x inputs, 3x outputs
• 2x SATA ports, up to 10TB each (max 20TB)
• 1x Gigabit Ethernet, 2x USB (1x 2.0 front, 1x 3.0 rear)
• AI: SMD Plus, Perimeter Protection (4 ch), Face Detection (2 ch)
• Power: DC12V/5A
• Operating temperature: -10°C to +55°C
• Form factor: 1U rack-mountable / desktop

Recommendations

For optimal performance, pair with BCS HDCVI cameras and use high-quality SATA III hard drives. Ensure proper ventilation for rack-mount installations.
