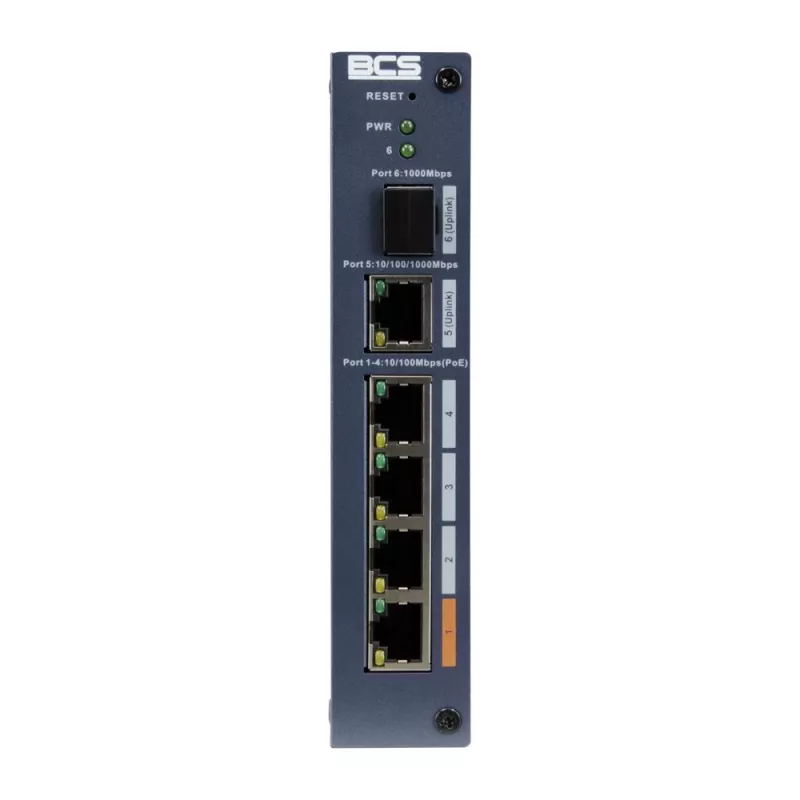

BCS BCS-L-SP0401G-1SFP-M priemyselný neupravovaný PoE+ switch, 4x PoE+ RJ45 + 1x RJ45 + 1x SFP, 65W

The BCS BCS-L-SP0401G-1SFP-M is a robust industrial unmanaged PoE+ switch designed for reliable network connectivity in harsh environments. It features 4 PoE+ ports, 1 uplink RJ45 port, and 1 SFP slot, providing flexible deployment options for IP cameras, wireless access points, and other PoE-powered devices.

Advantages

This switch offers a cost-effective solution for extending network reach and powering devices over a single Ethernet cable. With a total PoE budget of 65W and support for IEEE 802.3af/at, it can power multiple devices simultaneously. Its industrial-grade design ensures stable operation in extreme temperatures from -40°C to +75°C, making it ideal for outdoor or factory floor installations.

Suitable for

• Industrial automation networks
• Surveillance systems (IP cameras)
• Wireless access point deployments
• Outdoor and harsh environment installations

Key specifications

• 4x 10/100/1000Base-T RJ45 PoE+ ports (30W per port, 65W total)
• 1x 10/100/1000Base-T RJ45 uplink port
• 1x 1000Base-X SFP slot for fiber connectivity
• Switching capacity: 12 Gbps
• Packet forwarding rate: 8.9 Mpps
• MAC address table: 2K
• Jumbo frame support: 9K bytes
• Power input: DC 48-57V
• Power consumption: <5W (without PoE load)
• IP30 rated metal casing
• DIN rail and wall mountable
• LED indicators for Power, Link/Act, PoE status
• Surge and ESD protection

Recommendations

For optimal performance, use high-quality CAT5e or CAT6 cables for PoE+ connections. Ensure the power supply provides stable DC 48-57V to meet the total PoE budget requirements. This switch is plug-and-play, requiring no configuration.
