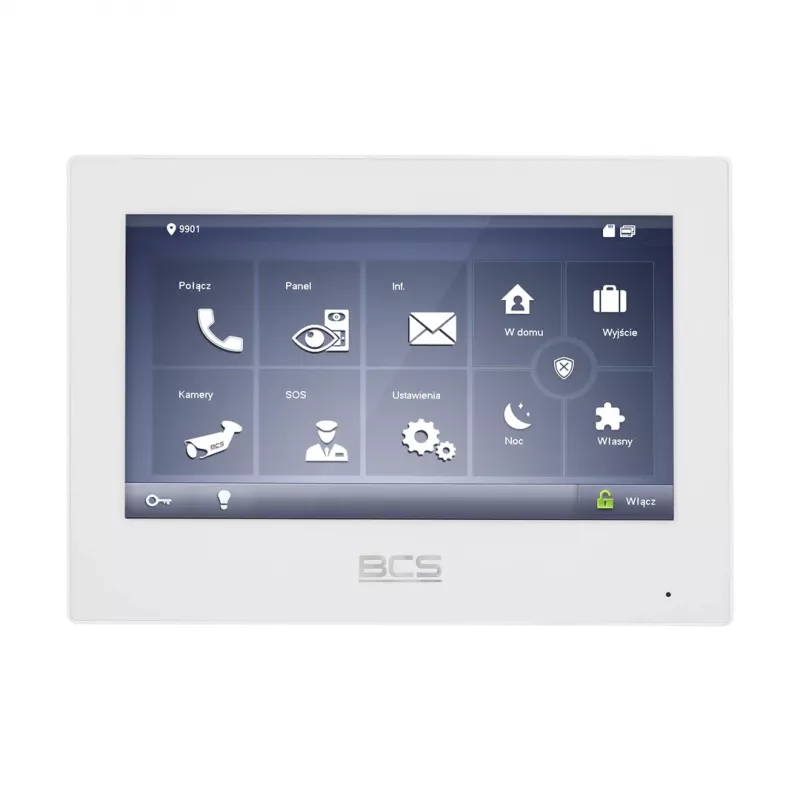

BCS-MON7700W-S 7-palcový dotykový monitor s Wi-Fi a PoE

The BCS-MON7700W-S is a 7-inch TFT LCD touchscreen monitor designed for video door communication and IP surveillance systems. With a capacitive touchscreen, Wi-Fi and Ethernet connectivity, and PoE support, it offers flexible installation and intuitive control. The monitor supports up to 6 door stations and 8 IP cameras, making it ideal for residential and small commercial applications.

Advantages

Easy to install with surface mount design and PoE capability. The capacitive touchscreen provides responsive control. Wi-Fi connectivity eliminates the need for wired network infrastructure. Supports up to 32GB SD card for local recording.

Suitable for

• Video door entry systems
• IP camera monitoring
• Home automation control

Key specifications

• Display: 7 inch TFT LCD, 1024x600 resolution
• Touchscreen: Capacitive
• Network: Wi-Fi 2.4GHz, Ethernet 10/100 Mbps
• Power: DC 12V or PoE (802.3af)
• Power consumption: ≤7W
• Audio: G.711
• Video: H.264
• Memory: 128MB RAM, 128MB Flash
• SD card: up to 32GB
• Max door stations: 6
• Max IP cameras: 8 (RTSP)
• Max additional monitors: 5
• Mounting: Surface mount
• OS: Embedded Linux
• Operating temperature: -10°C to +55°C
• Material: ABS Plastic

Recommendations

For optimal performance, use with BCS door stations and IP cameras. Ensure network switch supports PoE if using PoE power.
