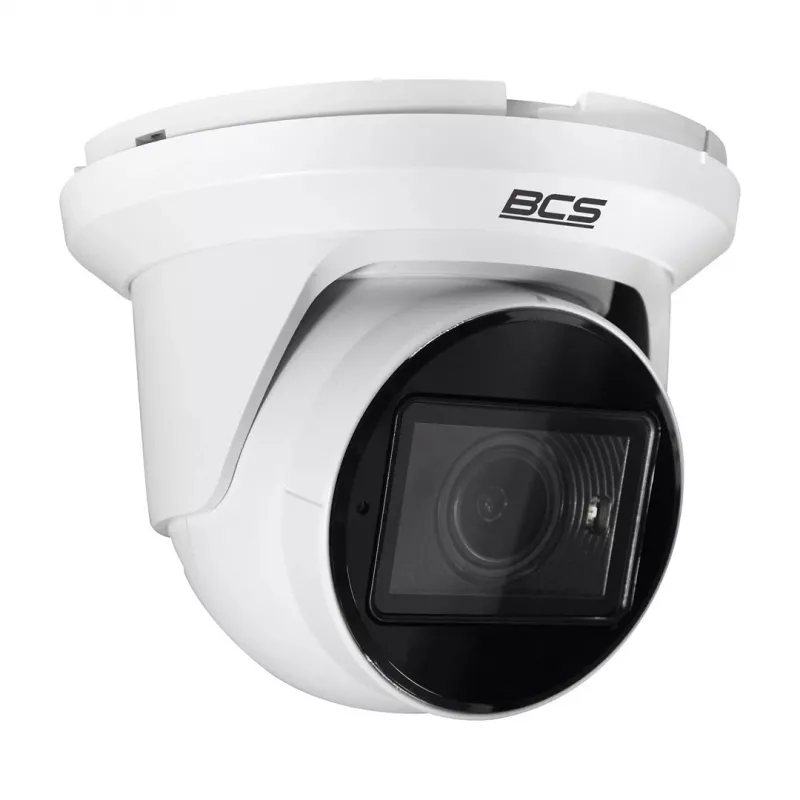

BCS-U-EIP65VSR5-Ai2 5MP IP dome kamera

The BCS-U-EIP65VSR5-Ai2 is a 5MP IP dome camera from the BCS ULTRA line with NDAA compliance. It features a 1/2.8" PS CMOS sensor, a 3.2~10.5mm motorized zoom lens, and SkyLight technology. Built-in intelligent functions include perimeter protection, object recognition, smart object detection, and face detection.

Key features

• 5MP IP dome camera
• 1/2.8" PS CMOS sensor
• NDAA compliant
• SkyLight technology
• Motorized zoom lens 3.2~10.5mm
• WDR 120dB
• IR range 50m
• Alarm 1/1, audio 1/1, microphone
• IP67, IK10
• Built-in intelligent functions

Specifications

• Model: BCS-U-EIP65VSR5-Ai2
• Product line: BCS ULTRA
• NDAA: National Defense Authorization Act
• Camera type: Dome
• Resolution: 5MP
• Sensor: 1/2.8'' CMOS
• Scanning system: Progressive Scan
• Pixels: 2592(H)×1944(V)
• Lens: Motorized zoom
• Focal length: 3.2~10.5mm
• Aperture: F1.6~3.3
• Focus: Auto / manual
• Iris: Auto
• Optical zoom: 3×
• Angle of view 4:3: H: 28.2°~98.9° V: 21.2°~71.1° D: 35.3°~133.8°
• Angle of view 16:9: H: 28.2°~98.9° V: 15.9°~52.2° D: 32.4°~117.9°
• Camera sensitivity: 0.13Lux(F1.6) 0Lux(IR)
• White balance: Auto / manual
• WDR: 120dB
• Backlight compensation: WDR(120dB)
• Shutter: Auto / manual 1/30~1/10000s
• Gain control: Auto / manual
• Defog: Electronic
• Image rotation: Mirror, Flip
• Number of streams: 4
• Resolutions: 2592×1944 / 2592×1456 / 1920×1440 / 1920×1080 / 1280×960 / 1280×720 / 640×360
• Main stream: 2592×1944@30fps
• Video compression: H.265+ / H.265 / H.264+ / H.264 / MJPEG
• Day/night: ICR mechanical infrared filter
• Illuminator type: IR LED
• IR range: 50m
• Microphone: Yes
• Audio input: 1
• Audio output: 1
• Audio compression: ADPCM 16K / G.726 / G.711u / G.711a
• Alarm input: 1
• Alarm output: 1
• Memory card slot: microSD 512GB
• Web service: CMS BCS Manager (Windows/Linux/MAC), Mobile App (iOS, Android)
• Motion detection: Yes
• Privacy masks: 8
• Network: RJ-45 10/100 Mbps
• Compatibility: ONVIF
• Protocols: IPv4, IPv6, RTP, RTSP, TCP, HTTP, UDP, HTTPS, FTP, SNTP, SMTP, uPNP, SNMPv2
• Power supply: 12VDC / PoE(802.3af)
• Power consumption: max 13.2W
• Housing color: White
• IP rating: IP67
• IK10: Yes
• Built-in heater: Yes
• Operating conditions: -40°C~+55°C max 90% RH
• Dimensions: Ø135×98.5mm
• Weight: 0.83 kg
• AI - Built-in intelligent functions: Built-in intelligent image recognition and analysis algorithms
• AI - Perimeter protection: Area intrusion, line crossing
• AI - Object recognition: Person/vehicle recognition for area intrusion, line crossing reduces false alarms
• AI - Smart object detection: Smart detection of lost/left objects
• AI - Face detection: Face detection and tracking
