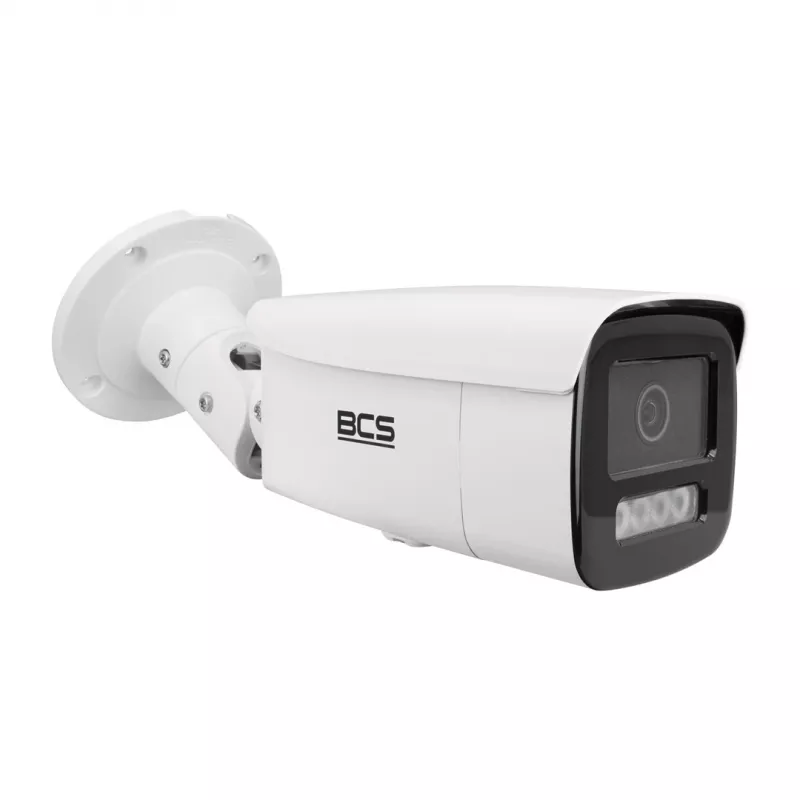

BCS-V-TIP54FSR6-Ai2(2) 4MP IP bullet kamera

The BCS-V-TIP54FSR6-Ai2(2) is a 4MP IP bullet camera from the BCS VIEW product line. It features a 1/3" PS CMOS sensor, a fixed 2.8mm lens, SkyLight and AcuSense technologies, and built-in intelligent functions.

Key features

• 4MP IP bullet camera
• 1/3" PS CMOS sensor
• SkyLight technology
• AcuSense technology
• Fixed 2.8mm lens
• WDR 120dB
• IR range up to 60m
• IP67 housing
• Built-in intelligent functions

Specifications

• Model: BCS-V-TIP54FSR6-Ai2(2)
• Product line: BCS VIEW
• Camera type: Bullet
• Resolution: 4MP
• Sensor: 1/3" CMOS
• Scanning system: Progressive Scan
• Pixels: 2688(H) × 1520(V)
• Lens: Fixed
• Focal length: 2.8mm
• Aperture: F1.0
• Focus/Iris: Fixed
• Angle of view: H: 100.2° / V: 54.7° / D: 119.7°
• DORI: Detect: 63m / Observe: 25m / Recognize: 12m / Identify: 6m
• Camera sensitivity: 0.001 Lux (F1.0, AGC), 0 Lux (B/W, IR)
• S/N ratio: 52 dB
• White balance: Auto / manual
• WDR: 120 dB
• Backlight compensation: BLC / HLC / WDR (120 dB)
• Shutter: Auto / Manual: 1/3 ~ 1/100000 s
• Gain control (AGC): Auto / manual
• Noise reduction: 3D DNR
• RoI: Region of Interest
• Image rotation: Mirror horizontal/vertical, 180° rotation
• Number of streams: 3
• Resolutions: 4M (2688×1520), 2M (1920×1080), 720P (1280×720), VGA (640×480), 360P (640×360)
• Main stream: 2688×1520@30fps, 1920×1080@30fps, 1280×720@30fps
• Second stream: 1280×720@30fps, 640×480@30fps, 640×360@30fps
• Third stream: 1920×1080@10fps, 1280×720@10fps, 640×480@10fps, 640×360@10fps
• Bitrate: 32 Kbps ~ 8 Mbps
• Video compression: H.265 / H.265+ / H.264 / H.264+ / MJPEG
• Day/night: ICR
• Illuminator type: IR
• Illuminator range: 60m
• Storage: FTP, NAS
• Memory card slot: microSD up to 512 GB
• Support: Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App (iOS, Android)
• Motion detection: Yes
• Privacy masks: 4
• Network: RJ-45 10/100 Mbps
• Compliance: ONVIF (S/G/T)
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS
• Power supply: 12V DC / PoE (802.3af)
• Power consumption: Max 9W
• Housing colour: White
• IP rating: IP67
• Operating conditions: -30°C ~ +60°C, max 95% RH
• Dimensions: 286.7 × 93.3 × 91.2 mm
• Weight: 1 kg
• AI - Built-in functions: Image recognition, image analysis
• AI - Perimeter protection: Area intrusion, line crossing
• AI - Object recognition: Person and vehicle recognition, false alarm reduction
• AI - Face detection: Face detection and tracking
