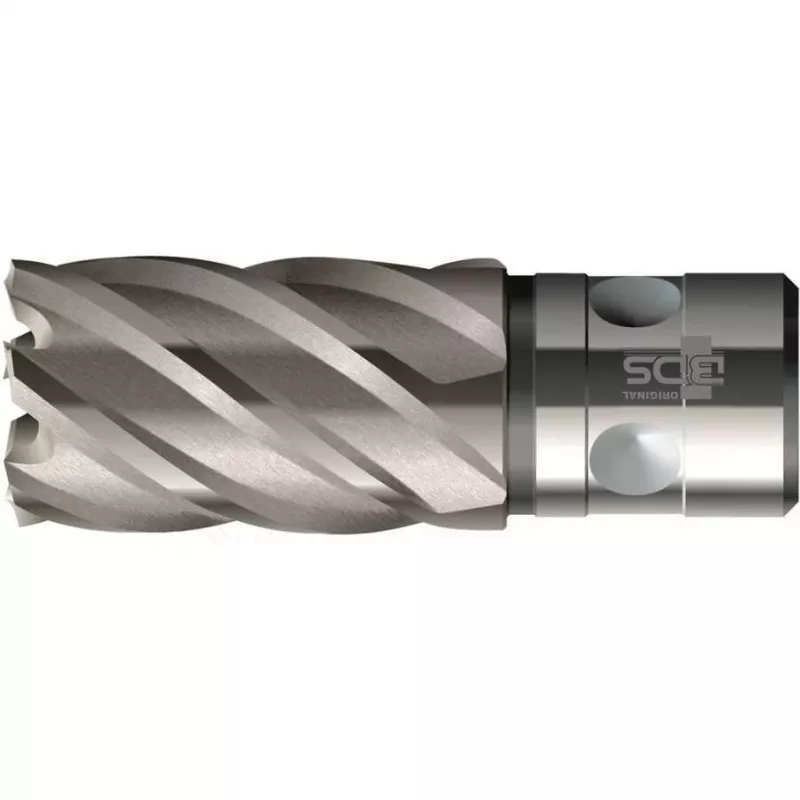

BDS KBK-F 014 HSS-Co 8% 14 mm jadrový vrták s QuickIN stopkou, 35 mm hĺbka rezu

The BDS KBK-F 014 annular cutter stands out with its 8% cobalt alloyed HSS-Co construction, delivering exceptional heat resistance and wear resistance for demanding drilling tasks. Unlike standard HSS cutters, this tool maintains hardness at elevated temperatures, ensuring consistent performance in steel, stainless steel, and cast iron. The 14 mm cutting diameter and 35 mm cutting depth are optimized for magnetic drilling machines, while the QuickIN shank allows tool changes in seconds without additional tools.

Highlights

• HSS-Co 8% material for superior heat and wear resistance
• QuickIN shank (19 mm) for fast, tool-free changes on compatible magnetic drills
• Multi-cut geometry for efficient chip removal and reduced friction
• Internal coolant delivery for extended tool life and cleaner cuts
• Bright finish for corrosion resistance and smooth chip flow
• Precision ground cutting edges for accurate, burr-free holes

In daily use

On the job site or in the workshop, the KBK-F 014 excels in core drilling operations. Its robust design handles tough materials like stainless steel and cast iron without sacrificing speed. The QuickIN system reduces downtime between cutter changes, while the internal coolant supply keeps the cutting zone cool, preventing work hardening and prolonging tool life. The slug produced is cleanly ejected, leaving a smooth bore ready for tapping or further machining.

Full specifications

• Product type: Annular cutter
• Material: HSS-Co 8% (High-Speed Steel with 8% Cobalt)
• Cutting diameter: 14 mm
• Cutting depth: 35 mm
• Shank type: QuickIN (19 mm)
• Overall length: approx. 65 mm
• Series: KBK-F
• Drilling method: Core drilling (produces a slug)
• Recommended applications: Steel, stainless steel, cast iron, non-ferrous metals
• Compatibility: Magnetic drilling machines with QuickIN arbor system
• Coolant delivery: Internal
• Finish: Bright
• Manufacturing standard: DIN 845 (implied)

Final note

For professionals who demand precision and durability, the BDS KBK-F 014 is a reliable choice. Its cobalt-enriched steel and advanced geometry deliver faster drilling and longer life compared to conventional twist drills, making it a cost-effective solution for high-volume core drilling.
