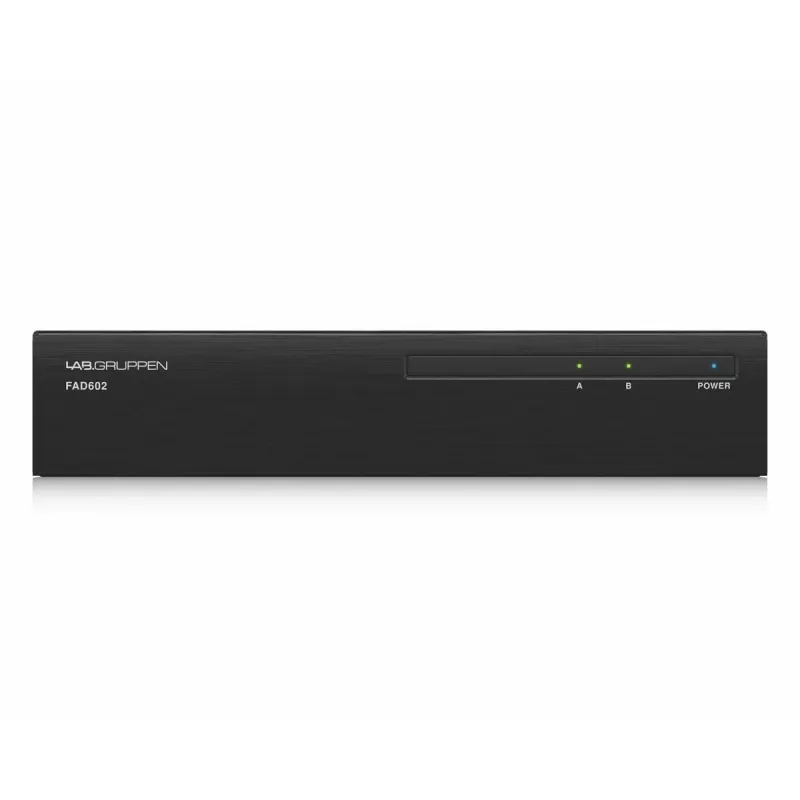

BEHRINGER Zosilňovač Lab Gruppen FAD602 2 x 60W 4 Ohm Dante

The BEHRINGER Amplifier Lab Gruppen FAD602 is a professional-grade 2-channel power amplifier delivering 2 x 60W at 4 Ohms, featuring Dante audio networking for seamless integration into modern AV systems. Designed for fixed installations, this half-rack 1U unit combines high-efficiency Class D amplification with comprehensive DSP processing, including EQ, delay, limiting, and crossover functions. Its fanless convection cooling ensures silent operation, making it ideal for noise-sensitive environments.

Advantages

Dante networking enables easy digital audio distribution over standard IP networks, reducing cabling complexity. The integrated DSP eliminates the need for external processors, saving rack space and cost. With universal switching power supply and protection features (thermal, over-current, DC, high-frequency, short circuit), the FAD602 delivers reliable performance in demanding conditions.

Suitable for

• Commercial sound systems (restaurants, retail, offices)
• Conference rooms and boardrooms
• Educational facilities and lecture halls
• House of worship audio systems
• Background music and paging systems

Key specifications

• Amplifier Channels: 2
• Output Power per Channel (4 Ohms): 60 W
• Output Power per Channel (8 Ohms): 60 W
• Output Power per Channel (70V/100V): 60 W (selectable)
• Minimum Load Impedance: 4 Ohms
• Audio Networking: Dante (Primary & Secondary ports)
• Integrated DSP: Yes (EQ, Delay, Limiting, Crossover)
• Frequency Response: 20 Hz - 20 kHz (+0/-1 dB)
• Total Harmonic Distortion + Noise (THD+N): < 0.1% (1 kHz, 1 dB below rated power)
• Signal-to-Noise Ratio: > 90 dB (A-weighted)
• Analog Input Connectors: 2 x Euroblock
• Output Connectors: 2 x Euroblock
• Amplifier Class: Class D
• Cooling: Convection (Fanless)
• Rack Space: Half-rack 1U
• Power Supply: Universal Switching Mode
• Max Power Consumption: 150 W
• Input Sensitivity: +4 dBu (1.23 V)
• Protection Features: Thermal, Over-current, DC, High-frequency, Short circuit

Recommendations

For optimal performance, pair the FAD602 with compatible Dante-enabled audio sources and speakers rated for 4 or 8 Ohms. Use shielded CAT5e/6 cables for Dante connections. The amplifier can be mounted in a standard 19-inch rack using optional rack ears (not included).
