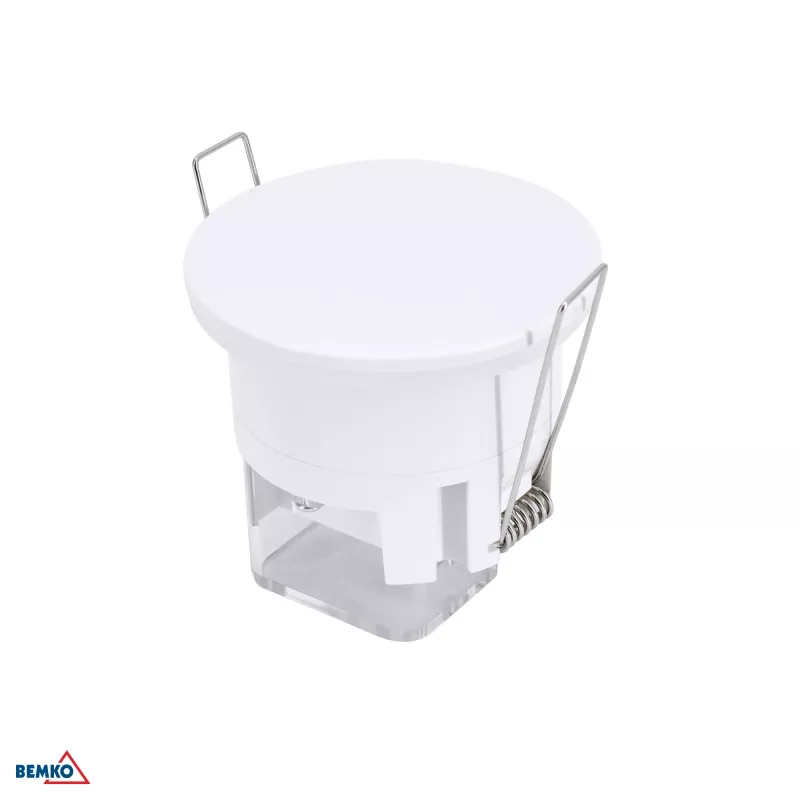

BEMKO Mikrovlnný pohybový senzor 360° IP54 podomietkový biely

The BEMKO B54-SES66WH is a high-quality microwave motion sensor designed for reliable presence detection in indoor environments. Featuring a 360° detection angle and adjustable range up to 8 meters, this sensor is ideal for automatic lighting control in offices, corridors, stairwells, and other commercial or residential spaces. Its flush-mounted design ensures a clean, professional finish, while the IP54 rating provides protection against dust and splashing water.

Advantages

Microwave (radar) technology offers superior sensitivity and can detect movement through thin walls, glass, or non-metallic partitions. The adjustable time delay (10s to 12min) and light sensitivity (3-2000 LUX) allow for flexible customization to suit various applications. With a high load capacity of up to 1200W for incandescent lamps and 300W for LED/fluorescent, it supports a wide range of lighting fixtures.

Suitable for

• Automatic lighting control in hallways, staircases, and corridors
• Presence detection in open-plan offices, meeting rooms, and restrooms
• Energy-saving applications in warehouses, basements, and garages
• Indoor use where flush mounting is preferred for aesthetic integration

Key specifications

• Sensor type: Microwave (Radar) 5.8 GHz
• Detection angle: 360°
• Detection range: 1-8 m (adjustable radius)
• Power supply: 230V AC, 50Hz
• Max load: 1200W (incandescent), 300W (LED/fluorescent)
• Installation: Flush-mounted (recessed)
• IP rating: IP54
• Light sensitivity: 3-2000 LUX (adjustable)
• Time delay: 10s - 12min (adjustable)
• Mounting height: 1.5 - 3.5 m
• Standby power consumption: <0.9W
• Operating temperature: -20°C to +40°C
• Colour: White
• Material: PC (Polycarbonate)
• Cutout diameter: 75 mm
• Outer diameter: 90 mm
• Depth: 52 mm

Recommendations

For optimal performance, install the sensor at a height of 2-3 meters and avoid placing it near metal objects or strong electromagnetic sources. Adjust the detection range and time delay according to the specific area requirements. This sensor is not suitable for outdoor use without additional weatherproofing.
