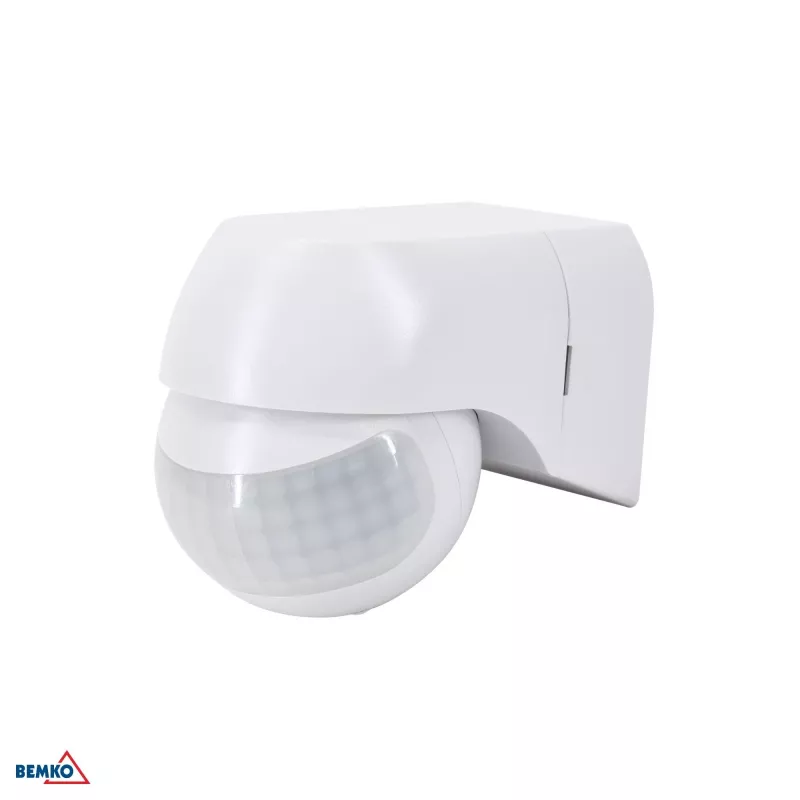

BEMKO PIR pohybový senzor 800W 180° biely

The BEMKO PIR Motion Sensor 800W 180° White is a high-quality passive infrared sensor designed for automatic lighting control in indoor and outdoor areas. With a wide detection angle of 180° and a maximum range of 12 meters, it ensures reliable motion detection. The sensor supports resistive loads up to 800W and LED/fluorescent loads up to 200W, making it suitable for various lighting types. Its adjustable time delay (10 seconds to 7 minutes) and light sensitivity (3-2000 LUX) provide flexible customization. The IP44 rating offers protection against splashing water, ideal for covered outdoor use. Easy wall mounting and durable ABS/PC material ensure long-lasting performance.

Advantages

Energy-saving automatic lighting control, wide detection area, adjustable settings for different environments, and robust build quality with UV-resistant materials.

Suitable for

• Corridors, staircases, and hallways
• Garages, basements, and storage rooms
• Covered outdoor areas like patios and entrances
• Offices and commercial spaces

Key specifications

• Sensor Type: PIR (Passive Infrared)
• Detection Angle: 180°
• Max Load (Incandescent/Resistive): 800W
• Max Load (LED/Fluorescent): 200W
• Power Supply: 220-240V AC, 50/60Hz
• Detection Range: Max 12m (<24°C)
• Time Delay Adjustment: 10s ±3s to 7min ±2min
• Light Sensitivity Adjustment: 3-2000 LUX
• Installation Height: 1.8m - 2.5m
• Ingress Protection: IP44
• Colour: White
• Operating Temperature: -20°C to +40°C
• Operating Humidity: <93% RH
• Standby Power Consumption: 0.45W
• Mounting Type: Wall-mounted
• Material: ABS/PC (UV resistant)
• Detection Speed: 0.6-1.5 m/s
• Switching Type: Relay
• Certifications: CE, RoHS

Recommendations

For optimal performance, install at the recommended height of 1.8-2.5 meters and avoid direct exposure to heat sources or air conditioning vents. Suitable for indoor and covered outdoor use only.
