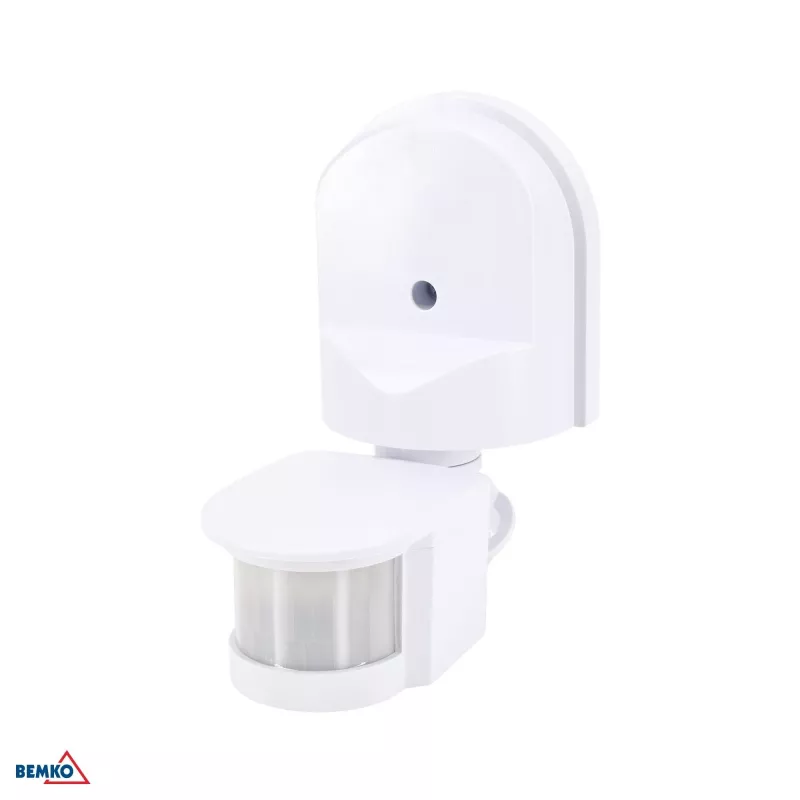

BEMKO PIR snímač pohybu 1200W 180° biely

The BEMKO B50-SES10WH is a high-quality Passive Infrared (PIR) motion sensor designed for reliable automatic lighting control in indoor and outdoor applications. With a maximum load capacity of 1200W for incandescent lamps and 300W for LED/fluorescent lighting, this sensor is suitable for a wide range of lighting systems. Its 180° detection angle and 12m range ensure broad coverage, while adjustable time delay and light sensitivity provide flexible operation.

Advantages

Energy-saving automatic control; easy surface wall mount installation; robust IP44 weather resistance; adjustable settings for customized performance; low standby power consumption.

Suitable for

• Corridors and hallways
• Staircases
• Garages and basements
• Garden and patio areas
• Warehouses and storage rooms

Key specifications

• Sensor Type: PIR (Passive Infrared)
• Max Load (Incandescent): 1200W
• Max Load (LED/Fluorescent): 300W
• Detection Angle: 180°
• Detection Range: 12m (max)
• Power Supply: 220-240V AC, 50/60Hz
• Time Delay: 10s ±3s to 7min ±2min
• Light Sensitivity: 3-2000 LUX
• Installation Height: 1.8m - 2.5m
• IP Rating: IP44
• Operating Temperature: -20°C to +40°C
• Colour: White
• Material: ABS Plastic
• Standby Power: <0.5W
• Mounting: Surface Wall Mount
• Detection Speed: 0.6-1.5 m/s
• Humidity: <93% RH

Recommendations

For optimal performance, install the sensor at the recommended height of 1.8-2.5m and avoid placing it near heat sources or air conditioning vents. Ensure the detection area is free from obstructions.
