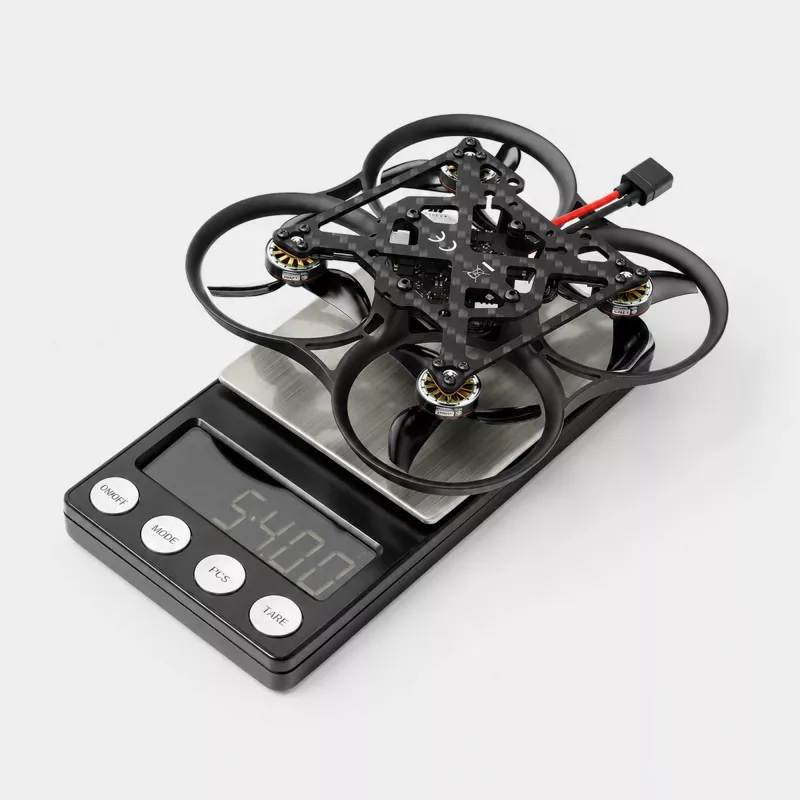

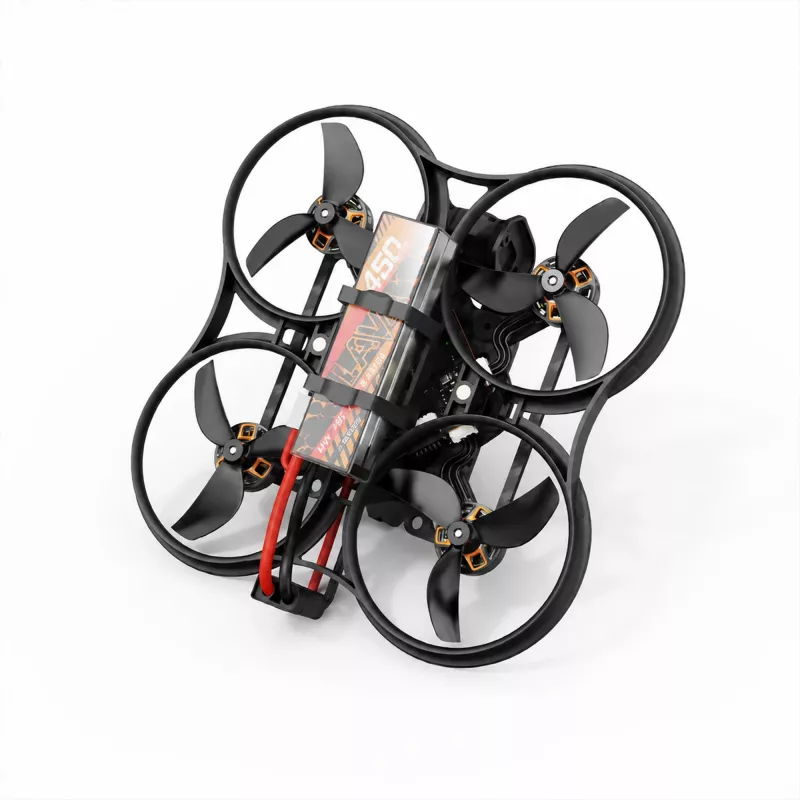

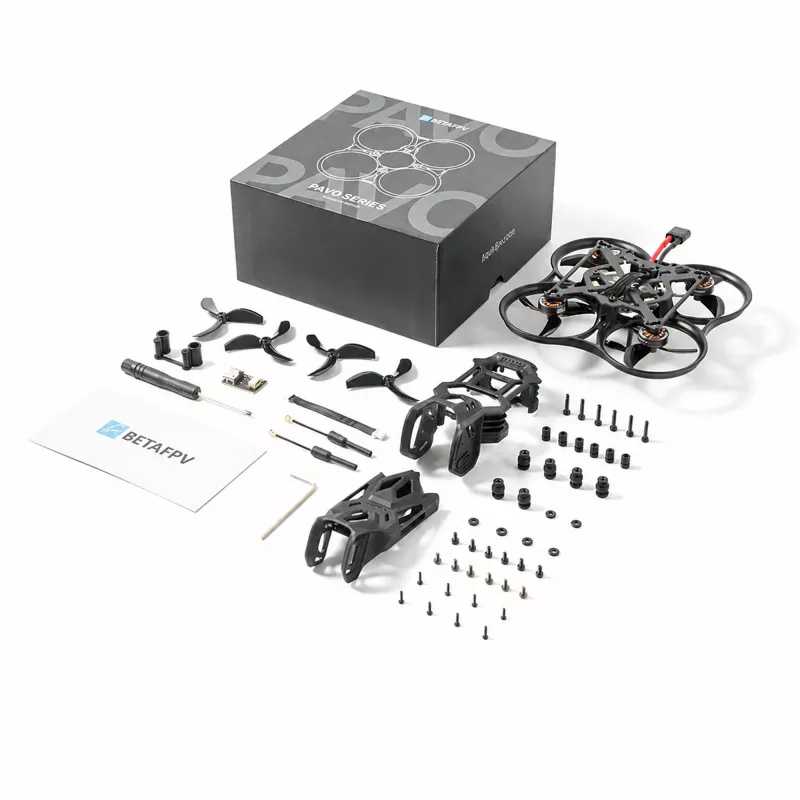

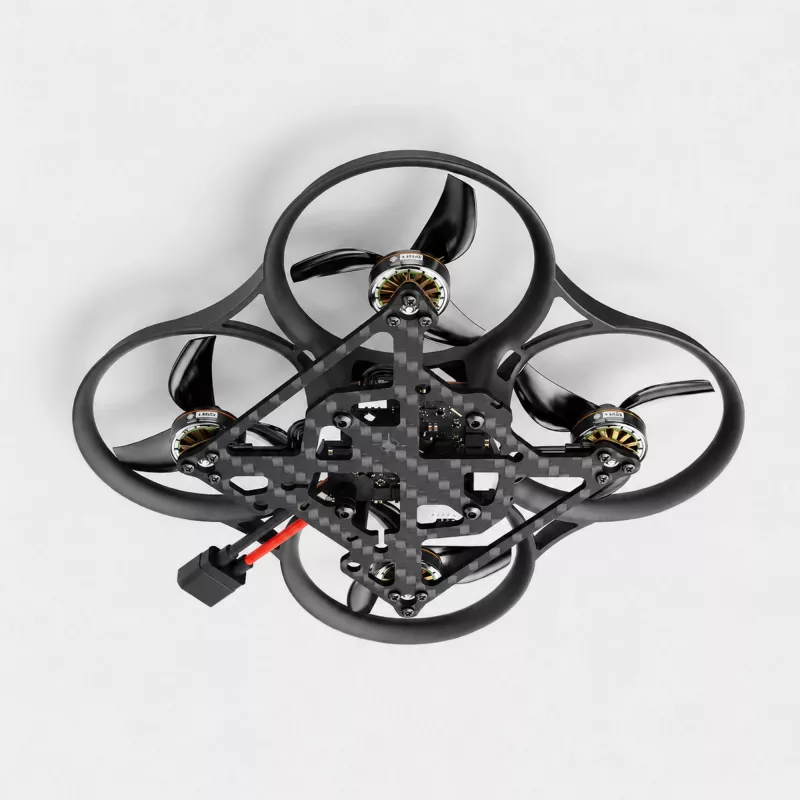

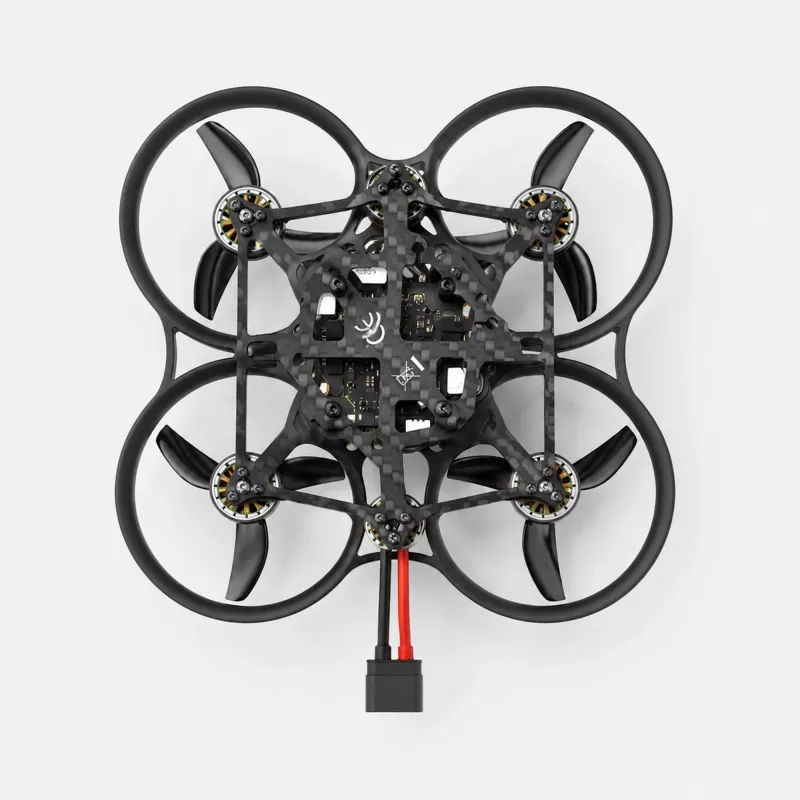

BETAFPV Pavo Pico II FPV dron PNP SBUS

For pilots who want the immersive thrill of FPV flight without the bulk, the BETAFPV Pavo Pico II delivers a compact, ducted quadcopter that captures crisp HD footage while remaining agile enough for tight indoor spaces. Its lightweight frame and integrated propeller guards let you fly confidently around people and objects, while the Walksnail Avatar HD system provides a clear, low-latency video link straight to your goggles.

Who is it for

This drone is built for FPV enthusiasts who value portability and safety. Whether you're a freestyle pilot practicing in a small park, a content creator needing smooth cinematic shots, or a beginner stepping up from toy drones, the Pavo Pico II offers a forgiving flight experience with the performance of a full-size quad. The PNP SBUS version is ideal for those who already own a compatible radio and want to add their preferred external receiver.

Main features

• Ultra-compact 80.8mm wheelbase with integrated ducted propellers for safe indoor and outdoor flight.
• Walksnail Avatar HD Mini 1S VTX with adjustable power up to 500mW for clear, long-range video.
• BETAFPV F4 1S 12A AIO flight controller with BMI270 gyro for stable, responsive control.
• Powerful 1102 14000KV brushless motors paired with Gemfan 45mm 3-blade propellers.
• Onboard HD recording via the VTX, so you can capture your flights without extra cameras.
• Adjustable camera angle (0-40°) to suit slow cruising or fast freestyle.
• XT30 battery connector for 2S 450-550mAh LiPo batteries, providing a balance of weight and flight time.
• Durable carbon fiber and PA12 nylon frame designed to withstand crashes.

Specifications

• Wheelbase: 80.8mm
• Flight Controller: BETAFPV F4 1S 12A AIO (F405 MCU, BMI270 Gyro)
• ESC: 12A BLHeli_S (DShot600)
• Motors: BETAFPV 1102 14000KV Brushless
• Propellers: Gemfan 45mm-3B (3-blade)
• Video Transmission System: Walksnail Avatar HD Mini 1S VTX
• Camera: Walksnail Avatar Nano Camera
• Receiver Compatibility: External (SBUS, ELRS, Crossfire, etc.)
• Battery Connector: XT30
• Recommended Battery: 2S 450-550mAh LiPo
• Frame Material: Carbon Fiber & PA12 (Nylon)
• VTX Power: 25mW/200mW/500mW (Adjustable)
• OSD: Betaflight OSD
• Firmware: Betaflight
• Propeller Guards: Integrated Ducted
• Camera Angle: Adjustable (0-40°)
• HD Recording: Yes, onboard VTX recording
• Motor Mount: 3-hole, 6.6mm diameter

Tips

To get the most out of your Pavo Pico II, start with a 2S 450mAh battery for a lighter feel and longer flight times. Since the PNP version requires an external receiver, ensure your radio system is compatible with SBUS, ELRS, or Crossfire before purchasing. For indoor flying, keep the VTX power at 25mW to avoid interference, and increase to 500mW only when flying outdoors at longer ranges. Always check local regulations before flying in public areas.
