Bezpečnostná kamera DAHUA PDW3849-A180E2ASPV-0280B 8MP

The DAHUA PDW3849-A180E2ASPV-0280B is an 8MP outdoor surveillance camera offering high-resolution monitoring with dual 1/2.7" CMOS sensors and a 2.8 mm fixed focal length lens. Built for outdoor environments, the camera includes IR illumination for low-light visibility, a built-in microphone, and support for local storage via microSD card up to 256 GB. It supports both 12 VDC and PoE power options and provides network and alarm connectivity for integration into security systems.

Advantages

This DAHUA 8MP camera delivers detailed image quality suitable for identification and situational awareness thanks to its 8 megapixel resolution and advanced image processing. The combination of IR illumination and dual sensors ensures usable footage in low light and varied lighting conditions. Versatile connectivity — including RJ45 network port, audio in/out, alarm in/out and microSD slot — enables flexible installation and integration with recorders or network systems. Its operating temperature range from –40 °C to +60 °C and weather-resistant design make it suitable for outdoor deployment.

Suitable for

• Perimeter and outdoor property surveillance
• Parking lots and garage monitoring
• Entrance and access control points
• Retail exteriors and loading bays

Key specifications

• Model: DAHUA PDW3849-A180E2ASPV-0280B
• Resolution: 8 Mega Pixel
• Sensor: Dual 1/2.7" CMOS
• Lens: 2.8 mm (M12 mount)
• IR Illumination: yes
• Electronic shutter: 1/3 s – 1/100,000 s

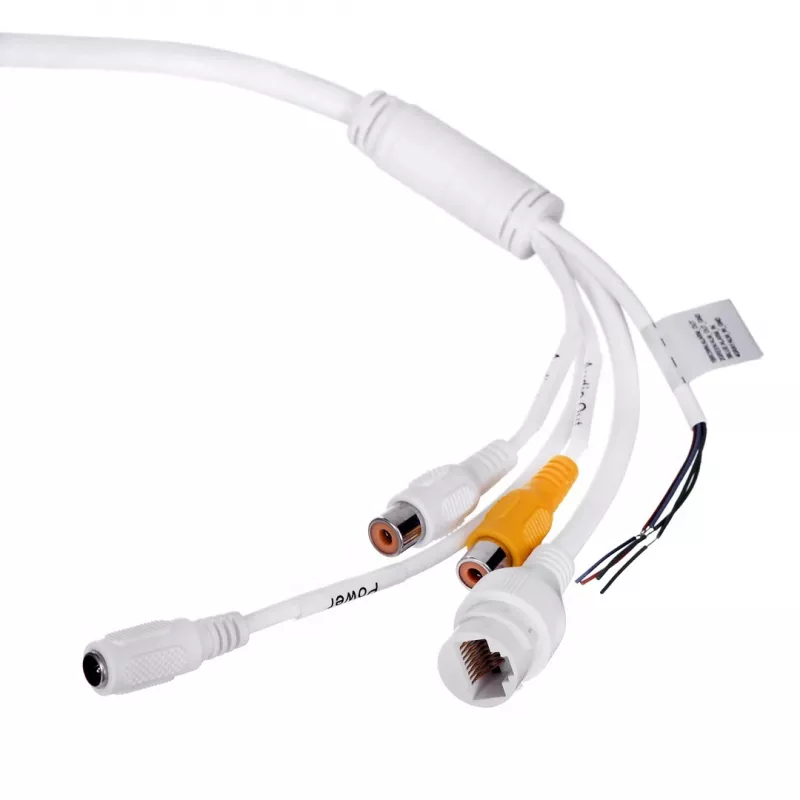

• Audio: 1×Audio-In, 1×Audio-Out, built-in microphone
• Storage: 1×MicroSD card slot, up to 256 GB
• Network: 1×RJ45 (PoE supported)
• Alarm: 1×Alarm In, 1×Alarm Out
• Power: 12 VDC or PoE
• Operating temperature: –40 °C to +60 °C
• Environment: Outdoor
• Dimensions: 122 mm × 135.2 mm
• Colour: White

How to use

Install the camera at the chosen outdoor location using appropriate mounting hardware, ensuring a stable power source via 12 VDC or PoE. Connect the camera to the network through the RJ45 port for remote access and configure settings with compatible Dahua software or a network video recorder. Insert a microSD card if local recording is required. Adjust the fixed 2.8 mm lens orientation during installation to frame the desired scene. Verify audio and alarm connections if those features are used.

Recommendations

For reliable long-term operation, use surge protection on the network and power lines when installing outdoors, maintain periodic firmware updates via Dahua tools, and choose a microSD card rated for continuous video recording. Position the camera to avoid direct sun glare into the lens and schedule regular cleaning of the housing and optics.
