BIRA ZL-Type montážny uholník pre HARTTE MG180 elektromagnetické zámky - strieborná

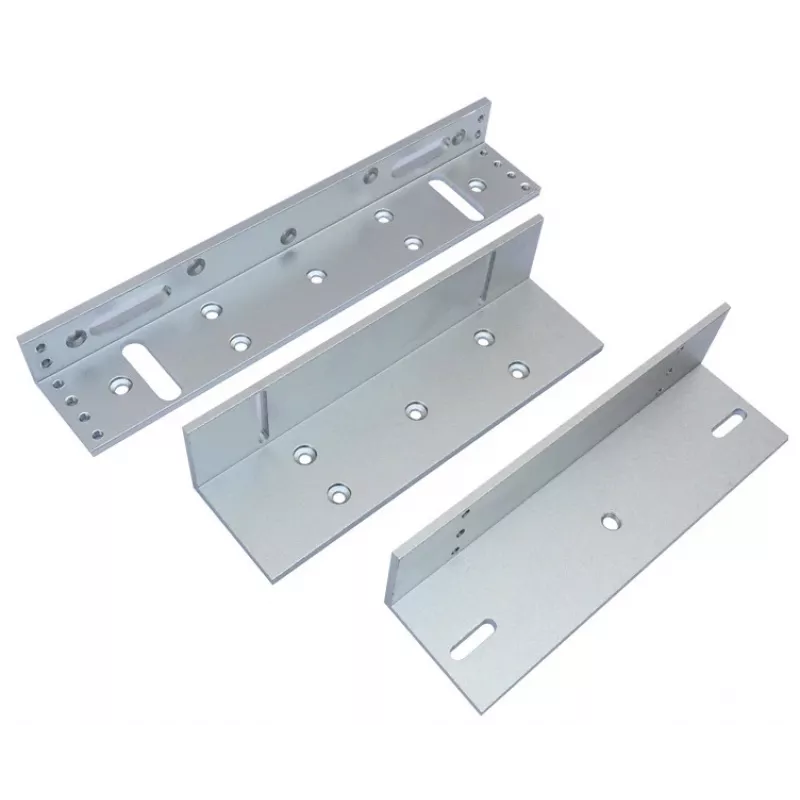

The BIRA MG180ZL is a high-strength aluminum alloy mounting bracket specifically designed for the HARTTE MG180 electromagnetic lock. This ZL-type bracket set includes one L-bracket and two Z-bracket pieces, providing a complete surface-mount solution for inward-opening security doors. The anodized finish ensures corrosion resistance and durability in access control environments.

Advantages

Engineered for a holding force compatibility of 180 kg (350 lbs), this bracket set guarantees secure and reliable locking. The precision-machined aluminum alloy construction offers excellent strength-to-weight ratio, while the anodized coating protects against wear and environmental factors. Easy surface mount installation saves time and labor.

Suitable for

• Access control systems on inward-opening doors
• Security doors requiring electromagnetic locking
• Commercial and industrial premises
• Retrofit or new installations with HARTTE MG180 locks

Key specifications

• Bracket Type: ZL-Type (L-bracket + Z-bracket pieces)
• Compatibility: HARTTE MG180 Electromagnetic Lock
• Holding Force Compatibility: 180 kg (350 lbs)
• Material: High-strength Aluminum Alloy
• Finish: Anodized
• L-Bracket Dimensions: 170 x 38 x 25 mm
• Z-Bracket Dimensions (each piece): 130 x 38 x 38 mm
• Installation: Surface Mount
• Color: Silver
• Operating Temperature: -10°C to +55°C
• Operating Humidity: 0-95% (non-condensing)

Recommendations

For optimal performance, pair this bracket with the HARTTE MG180 electromagnetic lock and use the included mounting screws. Ensure the door frame and leaf are properly aligned before installation. Suitable for indoor use in access control systems.
