BIRA MG350ZL ZL-Type montážny držiak pre 350kg magnetický zámok, strieborný

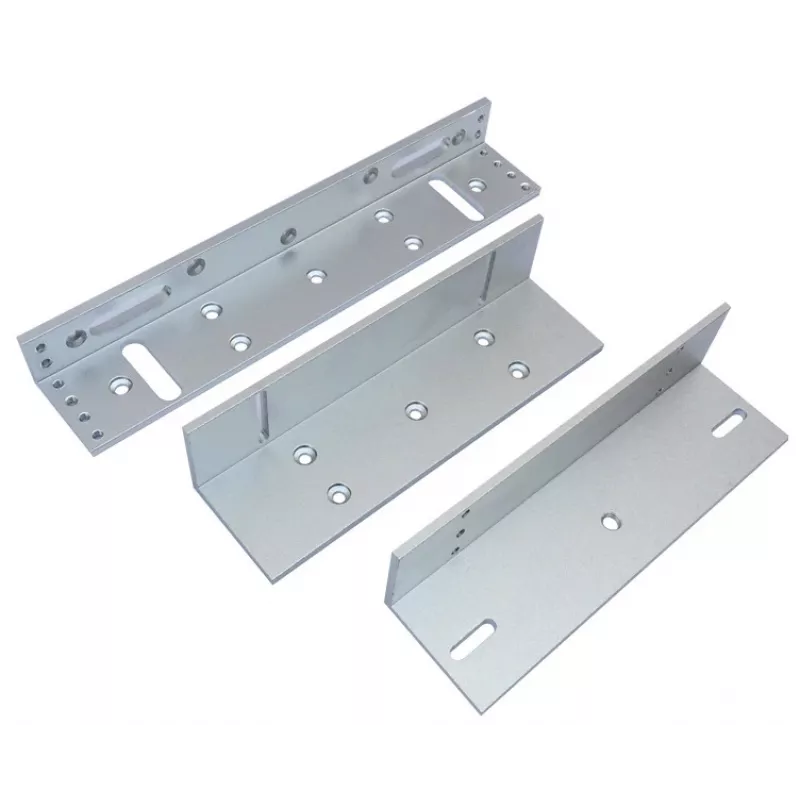

The BIRA MG350ZL is a high-strength ZL-type mounting bracket designed specifically for 350kg (750lbs) magnetic locks. Crafted from anodized aluminum alloy, this bracket ensures durability and corrosion resistance, making it ideal for access control systems in commercial and residential settings. The package includes both L-bracket and Z-bracket, along with all necessary mounting hardware for easy surface installation on inward-opening doors.

Advantages

This mounting bracket offers robust support for heavy-duty magnetic locks, ensuring secure and reliable operation. The anodized silver finish provides a professional appearance while resisting wear and corrosion. Easy installation with adjustable components allows for precise alignment, reducing setup time and effort.

Suitable for

• Access control systems for inward-opening doors
• Security systems requiring 350kg magnetic locks
• Wood, metal, and glass doors (with additional U-bracket for glass)

Key specifications

• Bracket Type: ZL-Type Mounting Bracket
• Compatibility: Designed for 350kg (750lbs) Magnetic Locks
• Material: High-strength Aluminum Alloy
• Finish: Anodized Silver
• Mounting Method: Surface Mount
• L-Bracket Dimensions: approx. 250 x 48 x 30 mm (L x W x H)
• Z-Bracket Dimensions: approx. 180 x 48 x 48 mm (L x W x H)
• Operating Temperature: -10°C to +55°C
• Humidity: 0-95% (non-condensing)
• Included Components: L-bracket, Z-bracket, Mounting Hardware (screws, washers)

Recommendations

For optimal performance, ensure the magnetic lock is properly aligned with the bracket. For glass doors, use an additional U-bracket (sold separately). Always follow the manufacturer's installation guidelines.
