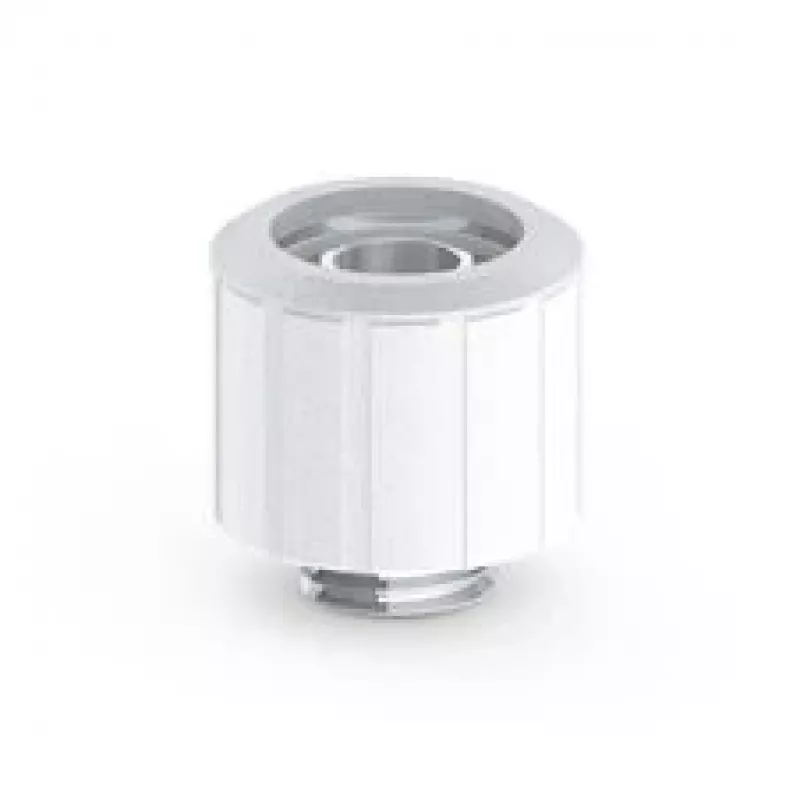

BitsPower rovný konektor G1/4 palca vonkajší závit na 16/10 mm hadica, Arctic White

BitsPower straight fitting G1/4" male to 16/10 mm tubing, Arctic White is a compact push-fit connector designed for custom PC liquid cooling loops. The fitting uses a standard G1/4" male thread for secure attachment to radiators, water blocks, reservoirs and pumps, while the push-fit end accepts 16/10 mm soft tubing (16 mm outer diameter / 10 mm inner diameter). The Arctic White finish provides a neutral, clean appearance that integrates with a variety of build colour schemes and helps achieve a tidy routing of coolant lines.

Advantages

This BitsPower straight fitting offers tool-free tubing installation with a push-fit mechanism that simplifies assembly and reduces the risk of leaks when used correctly with compatible 16/10 mm soft tubing. The G1/4" male thread ensures broad compatibility with standard liquid cooling components. Its compact straight form factor minimises bulk and enables close component spacing, while the coated Arctic White surface resists corrosion and contributes to a consistent visual style inside the chassis.

Suitable for

• Custom PC liquid cooling loops using 16/10 mm soft tubing
• Connections between radiators, pumps, reservoirs and water blocks
• Tight or compact build layouts where straight fittings are required

Key specifications

• Thread type: G1/4" male
• Tubing compatibility: 16 mm outer / 10 mm inner soft tubing
• Connection type: push-fit (push-to-connect) on tubing side
• Form factor: straight inline fitting
• Finish: Arctic White coating
• Material: metal body with sealing element (O-ring)

How to use

Install the fitting by screwing the G1/4" male thread into the corresponding female port on the cooling component until hand-tight, then secure further with a suitable tool if required without over-tightening. Prepare the 16/10 mm soft tubing by cutting the end square and clean of debris, then push the tubing firmly onto the push-fit end until it seats against the internal stop. Verify that the tubing is fully inserted and that the O-ring forms a seal. After assembly, perform a pressure or leak test according to your cooling loop procedure before powering the system.

Recommendations

Use only compatible 16/10 mm soft tubing and inspect O-rings periodically for wear. When routing lines in confined spaces, check clearance to avoid kinking or undue strain on the push-fit connection. Follow standard leak testing and maintenance practices for custom water cooling systems.
