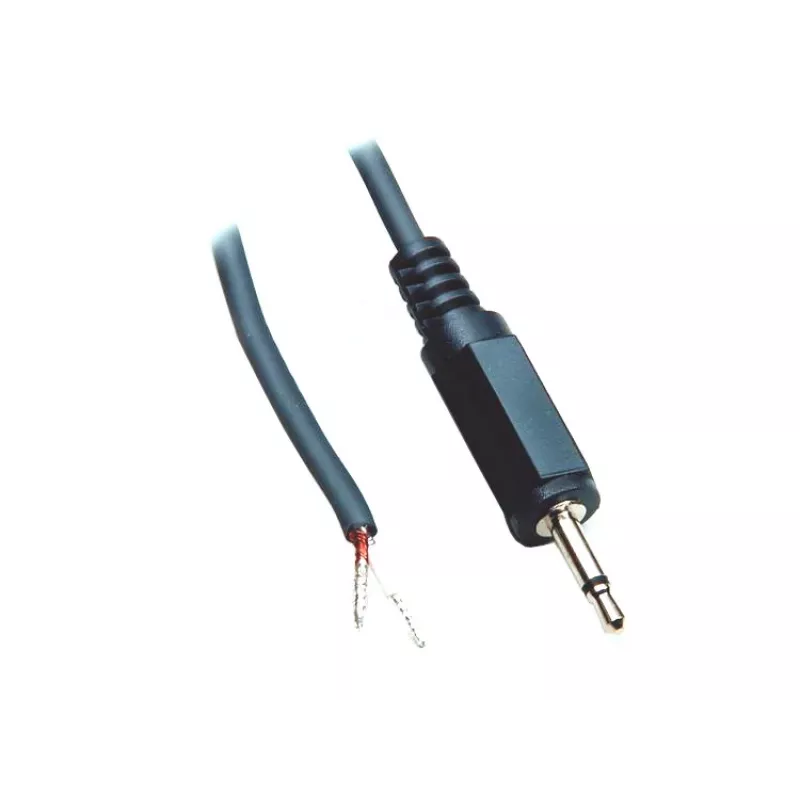

BKL Electronic 1101047 2,5 mm mono jack konektor samec spojka, 2-pólový, spájkované pripojenie

Featuring a 2.5 mm mono jack plug with a 2-pole (TS) configuration, this connector is built for reliable audio and low-voltage DC connections.

Overview

The BKL Electronic 1101047 is a cable-mount male jack plug with a straight design. It is intended for soldering to cable conductors, with a maximum cable diameter of 4 mm. The connector body is made of metal with nickel-plated contacts, ensuring durability and good conductivity.

What stands out

• Compact 2.5 mm mono jack plug for space-constrained applications
• 2-pole (tip/sleeve) design for mono audio or simple DC circuits
• Solder termination for secure, permanent connections
• Metal housing with nickel-plated contacts for long-term reliability
• Accepts cables up to 4 mm in diameter

Technical details

• Connector type: Jack plug
• Connector size: 2.5 mm
• Audio channel: Mono
• Number of poles: 2 (TS)
• Connector gender: Male
• Connector design: Straight
• Mounting type: Cable mount
• Termination method: Solder
• Housing material: Metal
• Contact plating: Nickel
• Maximum cable diameter: 4 mm
• Insulation material: Plastic
• Colour: Silver / Black

Our verdict

A straightforward 2.5 mm mono jack plug for custom cable assemblies, offering solid construction and easy soldering.
