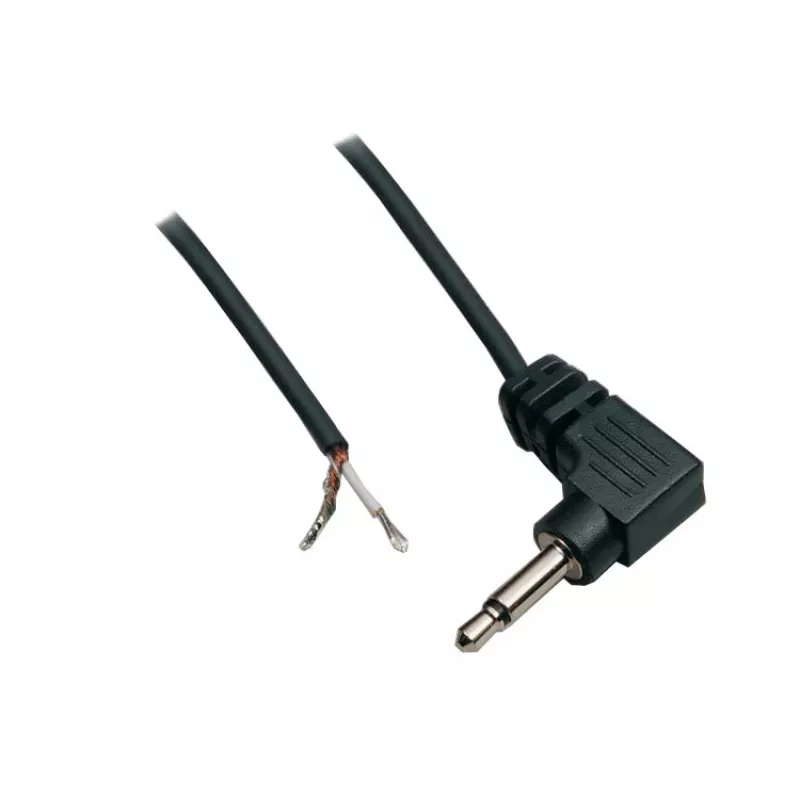

BKL Electronic 1101050 3,5 mm mono jack konektor samec, 2-pólový, spájkované pripojenie, kovové puzdro

The BKL Electronic 1101050 is a 3.5 mm mono jack plug engineered for reliable audio connections in compact devices. Its 2-pole (TS) design keeps signal paths simple, while the metal housing and nickel-plated contacts provide a durable connection for cable-mount applications.

Highlights

• 3.5 mm jack plug, mono, 2-pole (TS)
• Cable mount with solder termination
• Metal housing for durability
• Nickel-plated contacts
• Supports cable diameter up to 4 mm

In daily use

This connector is suited for custom audio cables, instrument leads, or repairs where a compact mono jack is required. Solder termination allows secure wiring, and the metal housing withstands repeated plugging. The 3.5 mm size fits standard headphone and line-level jacks.

Full specifications

• Connector type: Jack Plug
• Connector size: 3.5 mm
• Audio channel: Mono
• Number of poles: 2
• Gender: Male
• Mounting type: Cable Mount
• Termination style: Solder
• Housing material: Metal
• Contact plating: Nickel
• Max. cable diameter: 4 mm
• Rated voltage: 34 V AC/DC
• Rated current: 1 A
• Contact resistance: <10 mΩ
• Insulation resistance: >100 MΩ
• Operating temperature range: -20 to +70 °C
• Colour: Silver

Final note

A straightforward mono jack plug for custom audio wiring, with metal construction and solder terminals.
