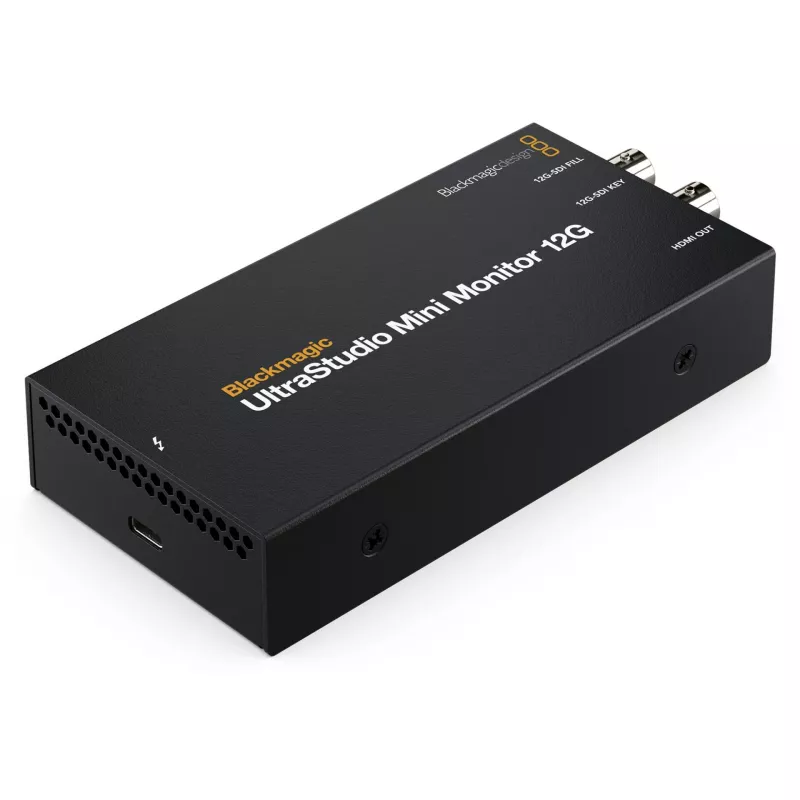

Blackmagic Design Ultrastudio Mini Monitor 12G

When you need to see your edit on a broadcast monitor, the UltraStudio Mini Monitor 12G gives you a direct, reliable path from your computer to professional SDI and HDMI displays. This compact Thunderbolt 3 device outputs up to DCI 4K at 60 frames per second with 10-bit YUV or 12-bit RGB color, ensuring that what you see is exactly what your audience will get. It supports HDR on both SDI and HDMI, and carries up to 16 channels of embedded audio over SDI and 8 over HDMI, making it a true reference-grade monitoring solution.

Who is it for

This device is built for video editors, colorists, DITs, and broadcast professionals who need accurate, real-time monitoring from a laptop or desktop. Whether you are working in DaVinci Resolve, Premiere Pro, Final Cut Pro, or any other video software, the UltraStudio Mini Monitor 12G delivers a clean, uncompressed signal to your SDI or HDMI monitor without taxing your computer's CPU. Its bus-powered design means no external power supply is needed, so you can take it on set or use it in the edit bay with minimal clutter.

Main features

• Thunderbolt 3 host interface for high-speed, low-latency video output.
• One 12G-SDI output supporting SD, HD, and Ultra HD up to DCI 4K60.
• One HDMI 2.0 output for connecting to modern TVs and projectors.
• Hardware-based color space conversion for accurate monitoring.
• Supports HDR metadata over both SDI and HDMI.
• 16 channels of embedded audio on SDI and 8 channels on HDMI.
• Bus-powered via Thunderbolt 3 — no external power adapter required.
• Includes DaVinci Resolve, Media Express, and Desktop Video Utility software.
• Compatible with macOS, Windows, Linux, and Chrome OS.

Specifications

• Host Interface: Thunderbolt 3
• Video Outputs: 1x 12G-SDI, 1x HDMI 2.0
• SDI Compliance: SMPTE 259M, 292M, 296M, 372M, 424M, 425M, 2081, 2082
• SDI Video Rates: 270 Mb/s, 1.5G, 3G, 6G, 12G
• HDMI Compliance: HDMI 2.0a
• Max Resolution: DCI 4K60 (4096 x 2160 at 60p)
• Video Sampling: 4:2:2 YUV, 4:4:4 RGB
• Color Precision: 10-bit (YUV), 12-bit (RGB)
• Audio Support: 16 channels embedded SDI, 8 channels embedded HDMI
• HDR Support: Yes (HDR via SDI and HDMI)
• Operating System Support: macOS, Windows, Linux, Chrome OS
• Power Source: Thunderbolt Bus Powered
• Included Software: DaVinci Resolve, Media Express, Desktop Video Utility
• Form Factor: Portable, External
• Real-time Processing: Hardware-based color space conversion
• Product Type: Video Playback Interface

Tips

To get the most out of the UltraStudio Mini Monitor 12G, pair it with a calibrated SDI or HDMI monitor that supports the same color gamut and HDR standard you are mastering for. Since it is bus-powered, ensure your Thunderbolt 3 port provides sufficient power; if you are using a hub, connect directly to the computer for reliable performance. For HDR workflows, enable HDR metadata output in the Desktop Video Utility and set your monitor to the corresponding HDR mode.
