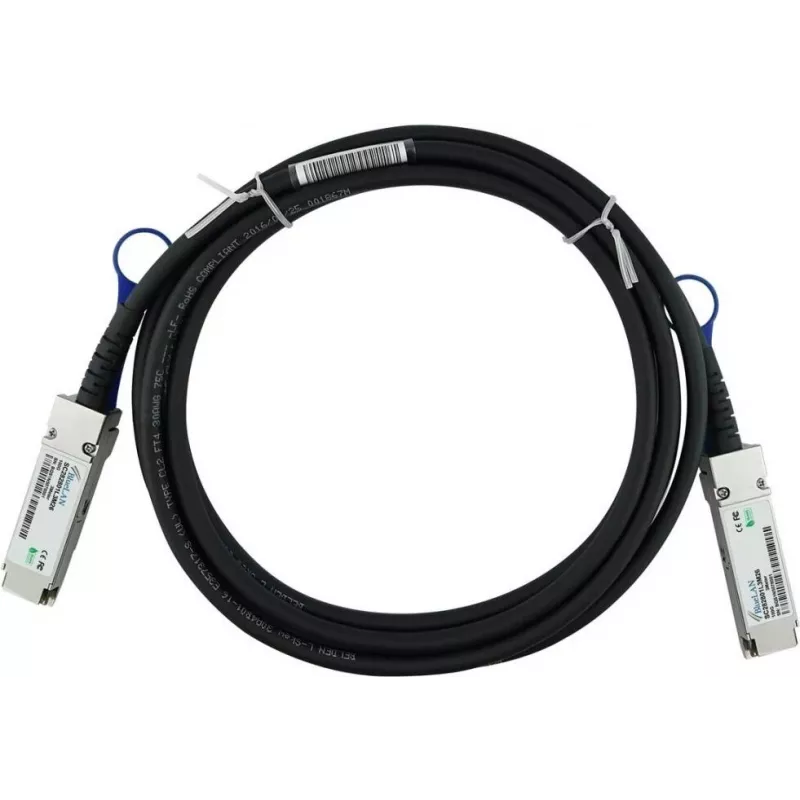

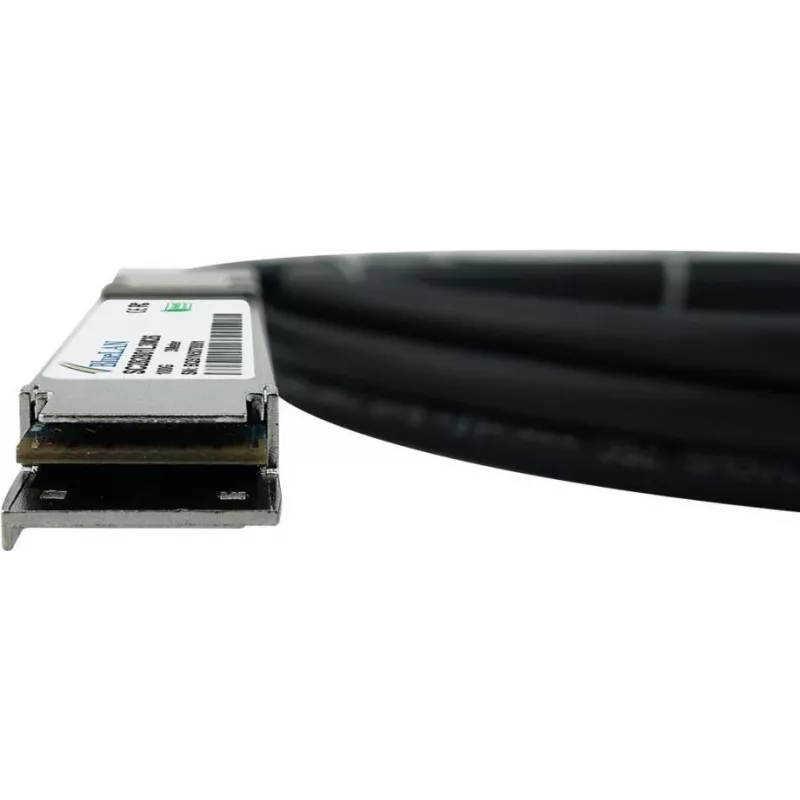

BlueLAN 100G QSFP28 Direct Attach medený kábel, 1m, pasívny Twinax, 30AWG 02314NVH-BL

BlueLAN 100G QSFP28 Direct Attach Copper Cable delivers 100 Gigabit Ethernet connectivity over a 1-meter passive twinax assembly. It connects QSFP28 ports directly, eliminating the need for separate optical modules and reducing latency in high-density data center environments.

Advantages

Passive design consumes zero power and adds no signal processing delay. The 30AWG twinax construction provides a cost-effective, low-latency interconnect for short-reach 100G links. MSA compliance ensures interoperability with a wide range of networking equipment.

Suitable for

• Top-of-rack to server connections in data centers
• High-performance computing clusters
• Enterprise network aggregation links

Key specifications

• Form factor: QSFP28
• Data rate: 100G (4x 25G lanes)
• Cable length: 1 meter
• Cable type: Passive twinax, 30AWG
• Impedance: 100 Ohm
• Operating temperature: 0°C to 70°C
• Jacket material: PVC

Recommendations

For short 100G connections where power and latency are critical, this DAC offers a reliable plug-and-play solution.
