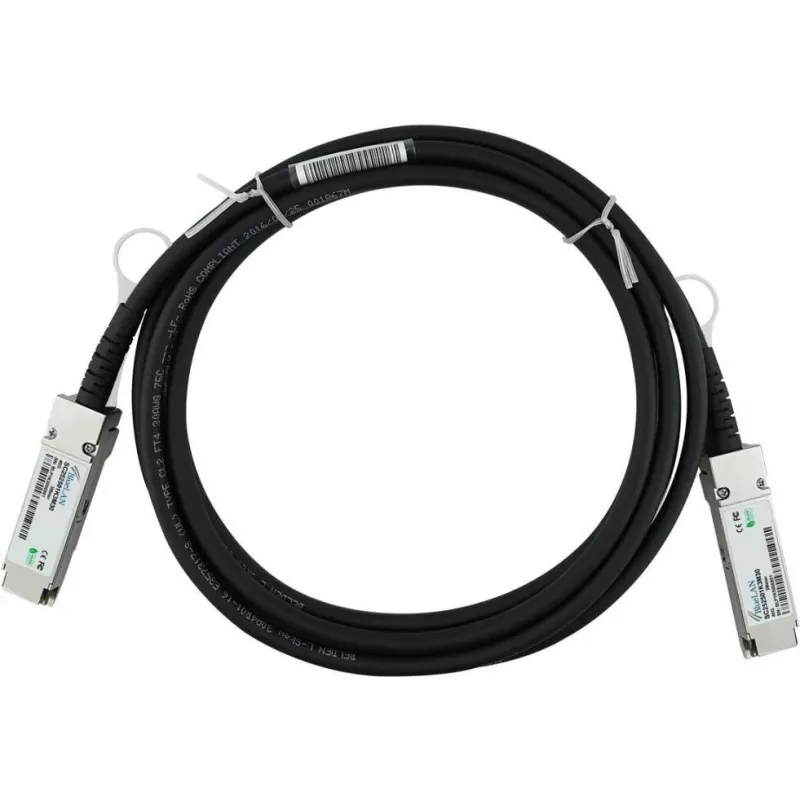

BlueLAN 40G-DACP-QSFP5M-BL QSFP Direct Attach Copper kábel, 40GBASE-CR4, 5 m, 28AWG, pasívny

The BlueLAN 40G-DACP-QSFP5M-BL is a high-performance QSFP Direct Attach Copper (DAC) cable designed for 40 Gigabit Ethernet and InfiniBand applications. This passive copper cable provides a cost-effective, low-power solution for short-range interconnects in data centers and high-performance computing environments. With a length of 5 meters and 28 AWG construction, it ensures reliable signal integrity and compliance with IEEE 802.3ba and SFF-8436 standards.

Advantages

This DAC cable offers several key benefits: it is hot-swappable, consumes less than 0.5W of power, and provides a robust, low-latency connection. The passive design eliminates the need for external power, reducing overall system power consumption. Its 100 Ohm impedance and 28 AWG gauge ensure optimal performance for 40GbE and InfiniBand QDR networks.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Network storage systems
• Enterprise networking equipment with QSFP ports

Key specifications

• Product Type: Direct Attach Copper Cable (DAC)
• Connector Type: QSFP to QSFP
• Data Rate: Up to 56 Gbps
• Supported Ethernet Speed: 40 Gigabit Ethernet (40GbE)
• Cable Length: 5 meters (16.4 ft)
• Cable Type: Passive Copper
• Form Factor: QSFP (Quad Small Form-factor Pluggable)
• Supported Protocols: Ethernet, InfiniBand
• Hot-Swappable: Yes
• Standards Compliance: SFF-8436 (QSFP+), IEEE 802.3ba (40GbE)
• Impedance: 100 Ohm
• AWG: 28 AWG
• Power Consumption: < 0.5W (Passive)
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• RoHS Compliant: Yes

Recommendations

For optimal performance, ensure that both ends of the cable are connected to compatible QSFP ports. This cable is ideal for top-of-rack to server connections within the same rack or adjacent racks. Always handle the cable with care to avoid damaging the connectors.
