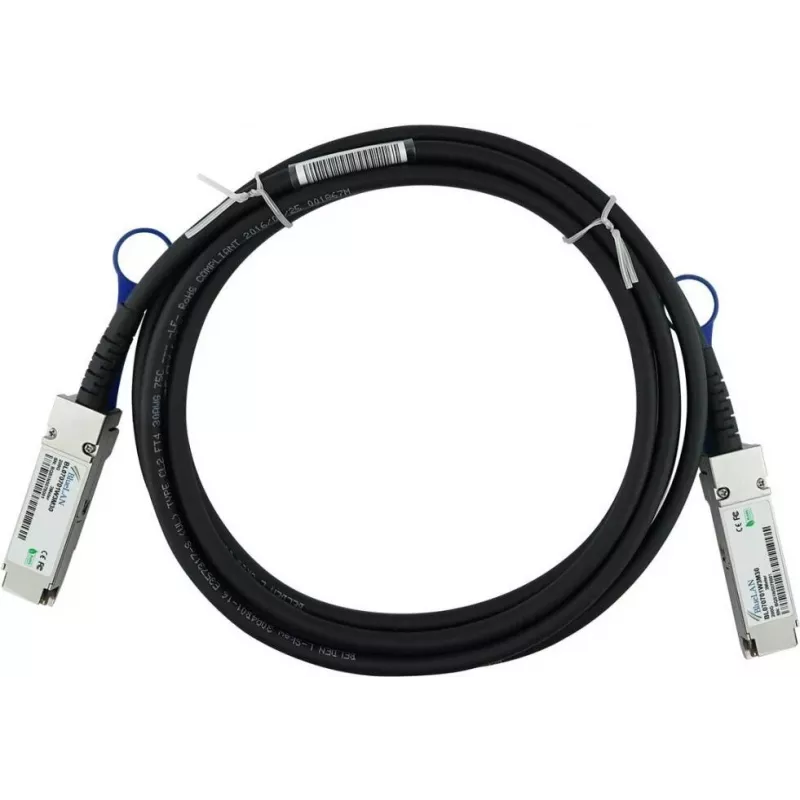

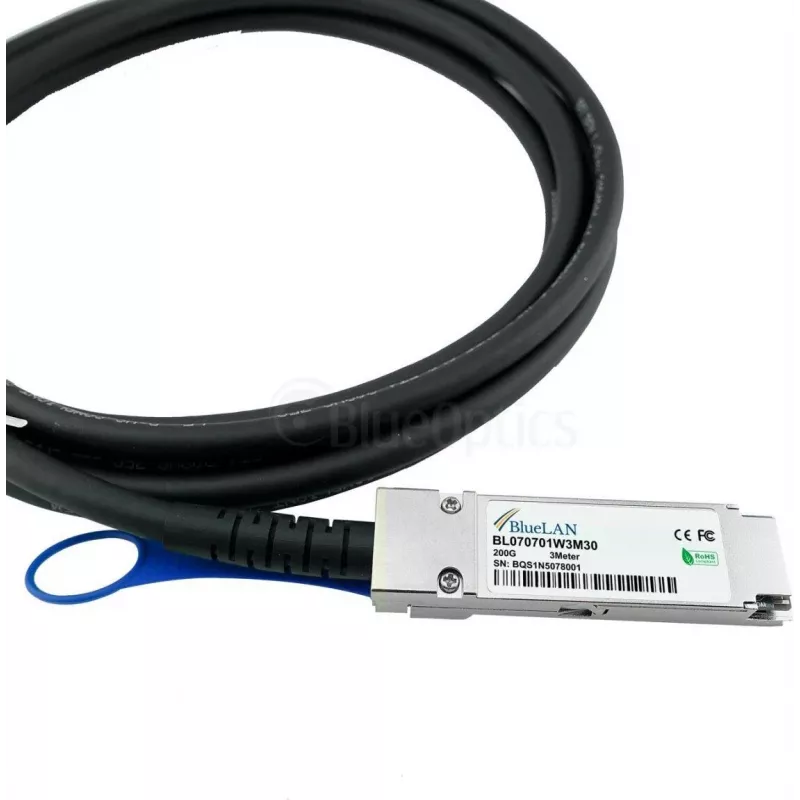

BLUELAN BlueOptics Alcatel-Lucent QSFP-200G-C1M QSFP56 Direct Attach kábel, 200Gb/s, 30AWG, 1 meter

The BLUELAN BlueOptics Alcatel-Lucent QSFP-200G-C1M QSFP56 Direct Attach Cable (DAC) is a high-performance passive copper cable designed for 200 Gigabit Ethernet connectivity in data centers and enterprise networks. It provides a cost-effective, low-power solution for short-distance interconnects between switches, routers, and servers.

Advantages

This DAC cable offers reliable, high-speed data transmission with minimal latency and power consumption under 0.5W. Its passive copper design ensures compatibility with standard QSFP56 ports and eliminates the need for optical transceivers, reducing overall system cost. The 30 AWG construction provides flexibility for easy cable management in high-density environments.

Suitable for

• Data center top-of-rack and end-of-row connections
• High-performance computing (HPC) clusters
• Enterprise network aggregation and core switching
• Alcatel-Lucent compatible equipment requiring QSFP-200G-C1M

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Connector Type: QSFP56 to QSFP56
• Data Rate: 200 Gb/s (4 x 50 Gb/s PAM4)
• Cable Length: 1 Meter
• Wire Gauge: 30 AWG
• Cable Type: Passive Copper
• Form Factor: QSFP56
• Compatibility: Alcatel-Lucent QSFP-200G-C1M (OEM Equivalent)
• Hot-Pluggable: Yes
• Protocol: Ethernet
• Electrical Interface: SFF-8636 Compliant
• Voltage Supply: 3.3V
• Power Consumption: < 0.5 W
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS, CE, FCC

Recommendations

For optimal performance, ensure that both connected devices support QSFP56 200G interfaces and are configured for passive DAC cables. This cable is ideal for short-reach links up to 1 meter within the same rack or adjacent racks.
