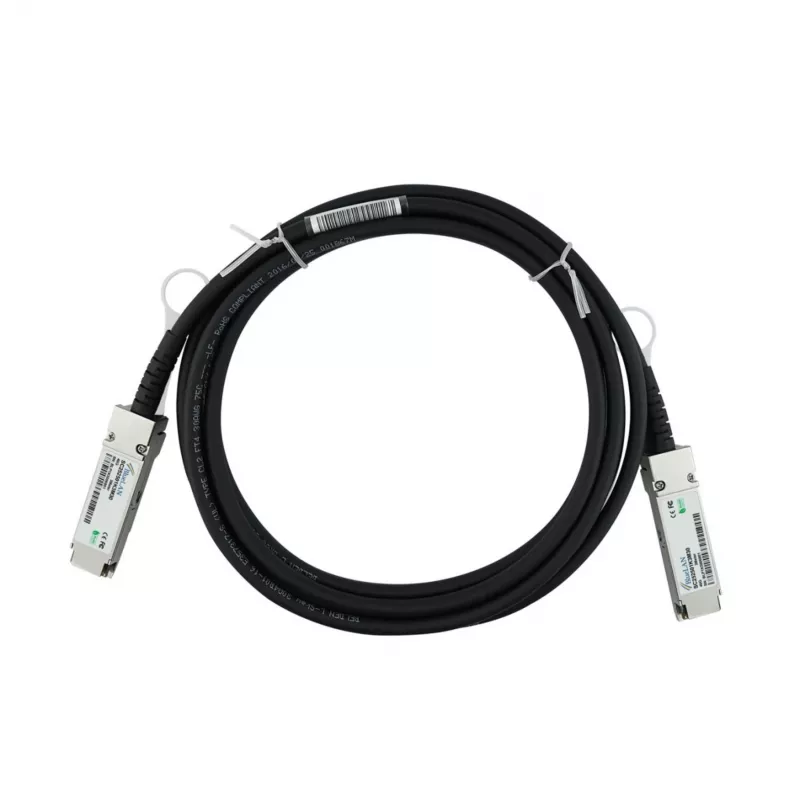

BlueLAN kompatibilný Fortinet FN-CABLE-QSFP+2 QSFP+ Direct Attach kábel, 40GBASE-CR4, 2 m, pasívny, 30AWG

The BlueLAN FN-CABLE-QSFP+2-BL is a high-performance QSFP+ Direct Attach Copper (DAC) cable designed for compatibility with Fortinet networking equipment. This passive twinax cable delivers 40 Gbps data rates over a 2-meter length, supporting both Ethernet and InfiniBand protocols. Engineered with 30 AWG conductors and 100 Ohm impedance, it ensures reliable, low-latency connections for data center and enterprise networks.

Advantages

Cost-effective alternative to active optical cables with lower power consumption (<0.5W per end). Hot-swappable design simplifies installation and maintenance. Compliant with RoHS, CE, and FCC standards for global use.

Suitable for

• Fortinet switches and routers requiring QSFP+ connectivity
• 40GBASE-CR4 Ethernet networks
• InfiniBand interconnects in high-performance computing
• Short-range, high-speed links within racks or between adjacent racks

Key specifications

• Cable Type: Direct Attach Copper (DAC), Passive
• Connectors: QSFP+ to QSFP+
• Data Rate: 40 Gbps
• Ethernet Standard: 40GBASE-CR4
• Cable Length: 2 meters
• Wire Gauge: 30 AWG
• Impedance: 100 Ohm
• Operating Temperature: 0°C to 70°C
• Power Consumption: <0.5W per end
• Compliance: RoHS, CE, FCC

Recommendations

For optimal performance, use with compatible Fortinet QSFP+ ports. Ensure proper cable management to maintain bend radius and avoid signal degradation.
