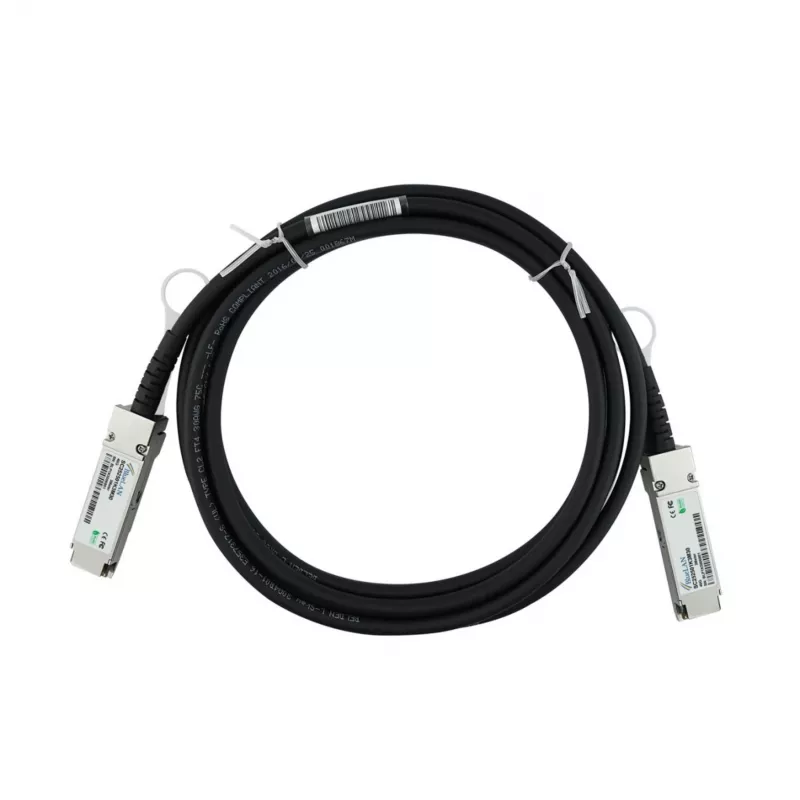

BlueLAN kompatibilný Lenovo Mellanox ARZC QSFP Direct Attach kábel, 40GBASE-CR4, 1 m, 30AWG, pasívny DAC

The BlueLAN ARZC-BL is a high-performance, cost-effective direct attach copper (DAC) cable designed for 40 Gigabit Ethernet and InfiniBand QDR applications. It is fully compatible with Lenovo and Mellanox networking equipment, providing reliable connectivity for data centers and high-performance computing environments.

Advantages

This passive QSFP cable offers low power consumption (<0.5W per end) and excellent signal integrity over a 1-meter length. The 30AWG construction ensures flexibility while maintaining compliance with the 40GBASE-CR4 standard. Hot-pluggable design simplifies installation and reduces downtime.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Enterprise network switches and servers
• Mellanox and Lenovo QSFP ports

Key specifications

• Connector Type: QSFP to QSFP
• Data Rate: 40 Gbps
• Cable Length: 1 meter
• Wire Gauge: 30 AWG
• Impedance: 100 Ohm
• Jacket Material: PVC
• Compliance: RoHS, CE, FCC
• Operating Temperature: 0°C to 70°C

Recommendations

For optimal performance, pair this cable with compatible Mellanox or Lenovo 40G QSFP ports. Ensure proper cable management to avoid bending beyond the minimum bend radius.
